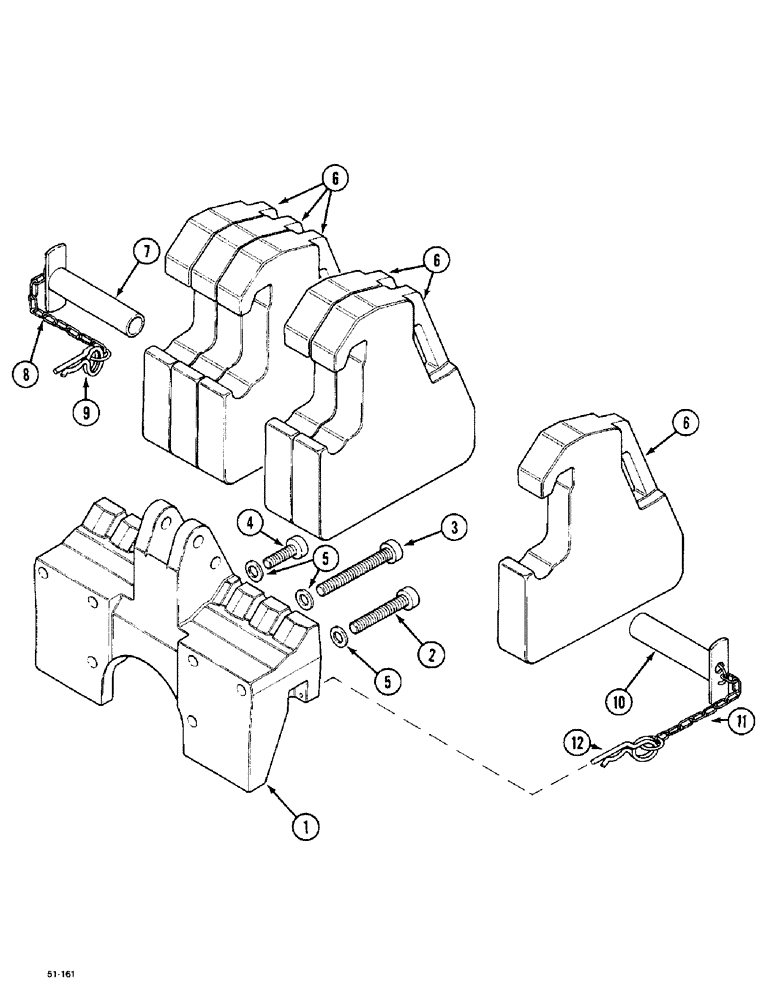

Запчасти Case IH 5150 (9A-8) - FRONT WEIGHTS, WITH FRONT HITCH (09) - CHASSIS/ATTACHMENTS

1

T100541

WEIGHT

90117 Front

1шт.

2

861-20120

HEX SOC SCREW,M20 x 120mm, Cl 12.9

M20 x 120; 12.9

2шт.

3

861-20160

HEX SOC SCREW,M20 x 160mm, Cl 12.9

M20 x 160; 12.9

2шт.

4

861-20065

HEX SOC SCREW,M20 x 65mm, Cl 12.9

M20 x 65; 12.9

2шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

6

T100587

WEIGHT

44 kg, 90117 Front

6шт.

7

1531695C1

TUBE

ASSY., 90117 Left, Includes: 8, 9

1шт.

8

T104098

CHAIN,W/Ring

90117 With Ring

1шт.

9

T104026

SPLIT PIN/SAFETY PIN

CLIP spring

1шт.

10

1531696C1

TUBE

ASSY., 90117 Right, Includes: 11, 12

1шт.

11

T104098

CHAIN,W/Ring

90117 With Ring

1шт.

12

T104279

SPLIT PIN/SAFETY PIN

CLIP spring, 90117 Right

1шт.
