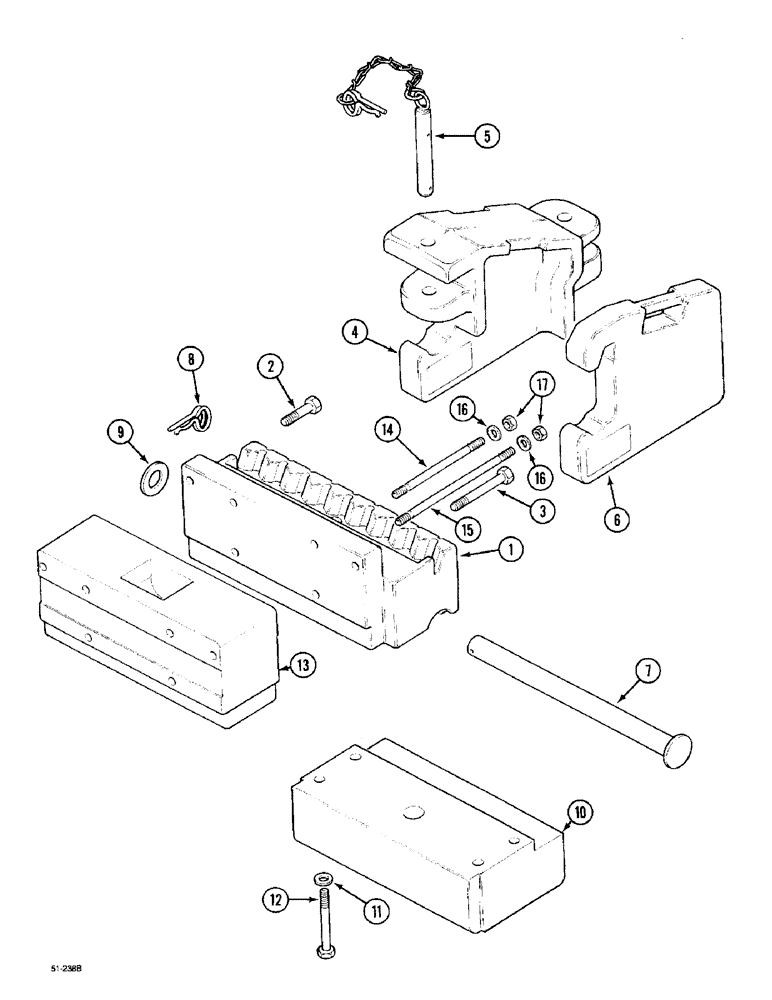

Запчасти Case IH 5150 (9A-6) - FRONT WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

1533770C1

WEIGHT

90117 Front

1шт.

2

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

3

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

1537465C1

PACKAGE

90117 Consists Of: 4, 5 Central

1шт.

4

T101136

WEIGHT

90117 With Clevis

1шт.

5

3147825R92

PIN,32mm OD x 508.85mm L

ASSY.

1шт.

81814C1

WEIGHT

PACKAGE, 90117 Set Of: 6, Consists Of: 6-9

1шт.

81817C1

SET

90117 Set Of: 9, Consists Of: 6-9

1шт.

6

3223250R2

WEIGHT

47 kg

1шт.

7

T100545

TUBE,562.5 mm L

PIN lock

1шт.

8

1328360C1

SPRING CLIP

CLIP spring

1шт.

9

1328361C1

WASHER

1шт.

10

1533528C1

WEIGHT

150 Kg

1шт.

11

905763R1

WASHER,M25 High Tensile

4шт.

12

827-24180

BOLT,Hex, M24 x 3 x 180mm, Cl 10.9

M24 x 180; 10.9

4шт.

132937A2

PACKAGE

90117 Mounting, Includes: 13, 14A, 15A, 16, 17

1шт.

13

118881A1

SUPPORT

extension

1шт.

14

130035A1

STUD

335 mm, 90117 Use With: 118881A1, Serial Range: -JJF1045010

4шт.

14a

196364A1

STUD

STUD, 345 mm, 90117 Use With: 118881A1, Start Serial: JJF1045011

4шт.

15

130037A1

STUD

405 mm, 90117 Use With: 118881A1, Serial Range: -JJF1045010

2шт.

15a

194922A1

STUD

STUD, 415 mm, 90117 Use With: 118881A1, Start Serial: JJF1045011

2шт.

16

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

17

829-1320

NUT,M20, Cl 10

6шт.
