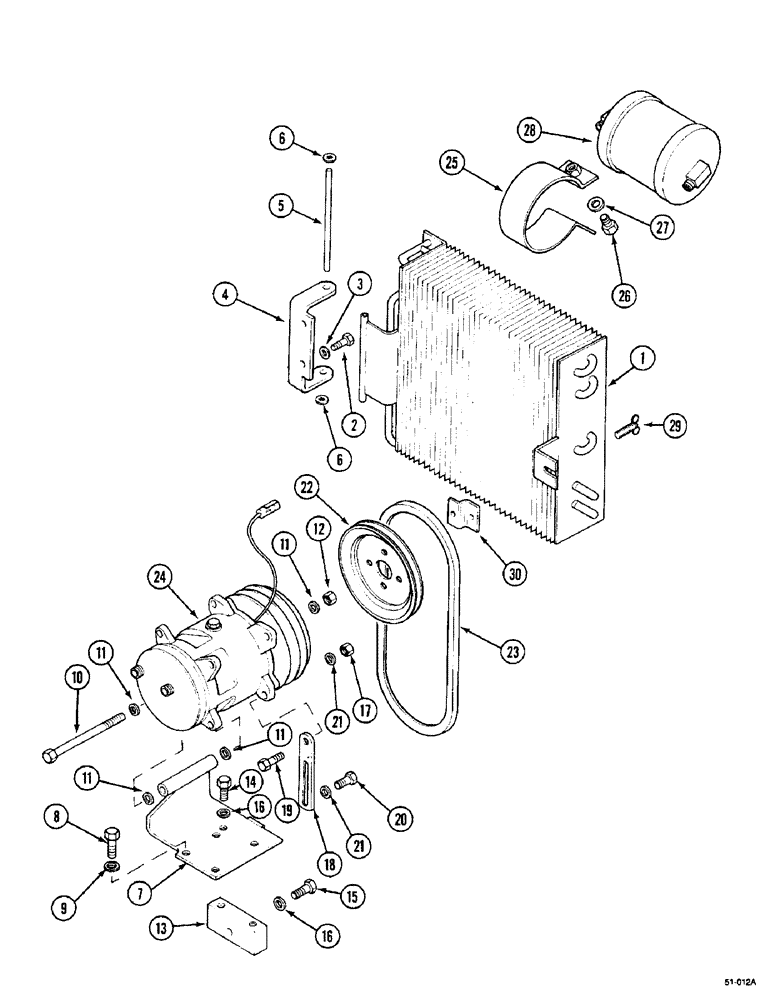

Запчасти Case IH 5150 (2-032) - AIR CONDITIONER, COMPRESSOR AND CONDENSER (02) - ENGINE

1

127270A1

CONDENSER

90317, Serial Range: -JJF1034500

1шт.

1

1335209C1

CONDENSER

90317, 5120, 5130, 5140 JJF1034499 to

1шт.

1

102600A1

CONDENSER

90317, 5150 JJF1034499 to

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

90317 JJF1034499 to

3шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

90317, Serial Range: -JJF1034500

2шт.

3

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

3шт.

4

A189060

BRACKET

90317, 5120, 5130, 5140, Start Serial: JJF1034499

1шт.

4

129466A1

SUPPORT

90317, 5120, 5130, 5140, Serial Range: -JJF1034500

1шт.

4

1534969C1

SUPPORT ASSY.

90317, 5150, Start Serial: JJF1034499

1шт.

4

129470A1

SUPPORT

90317, 5150, Serial Range: -JJF1034500

1шт.

5

A184695

PIN

1шт.

6

A184680

SNAP RING,#31, Ext

#31, Ext

2шт.

7

A189290

SUPPORT

1шт.

8

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

9

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

10

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

11

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

4шт.

12

825-1410

NUT,M10, Cl 8

1шт.

13

A184618

BRACE

1шт.

14

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

15

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

16

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

3шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

84716C1

SUPPORT

1шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

20

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

21

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

2шт.

22

A189155

PULLEY

90317, 5120, 5130

1шт.

22

A184596

PULLEY

90317, 5140

1шт.

22

A184595

PULLEY

90317, 5150

1шт.

23

A184652

V-BELT,12.70 mm W x 1017.00 mm L

90317, 5120, 5130 Tractors

1шт.

23

84766C1

BELT,12.70 mm W x 996.00 mm L

90317, 5140, 5150

1шт.

24

REF

INSTRUCTION

COMPRESSOR, 90317 See Figure: 2-44

1шт.

25

T102980

CLAMP

1шт.

26

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

T103390

WASHER

90317, Start Serial: JJF1034499

1шт.

27

T103390

WASHER

90317, Serial Range: -JJF1034500

2шт.

28

143469C2

RESERVOIR

90317, Start Serial: JJF1034499

1шт.

28

1990758C2

RECEIVER-DRYER

90317, Serial Range: -JJF1034500

1шт.

29

905855R1

SCREW,Wing, M8 x 12mm

8 x 12 mm

1шт.

30

129465A1

SUPPORT

90317, Serial Range: -JJF1034500

1шт.
