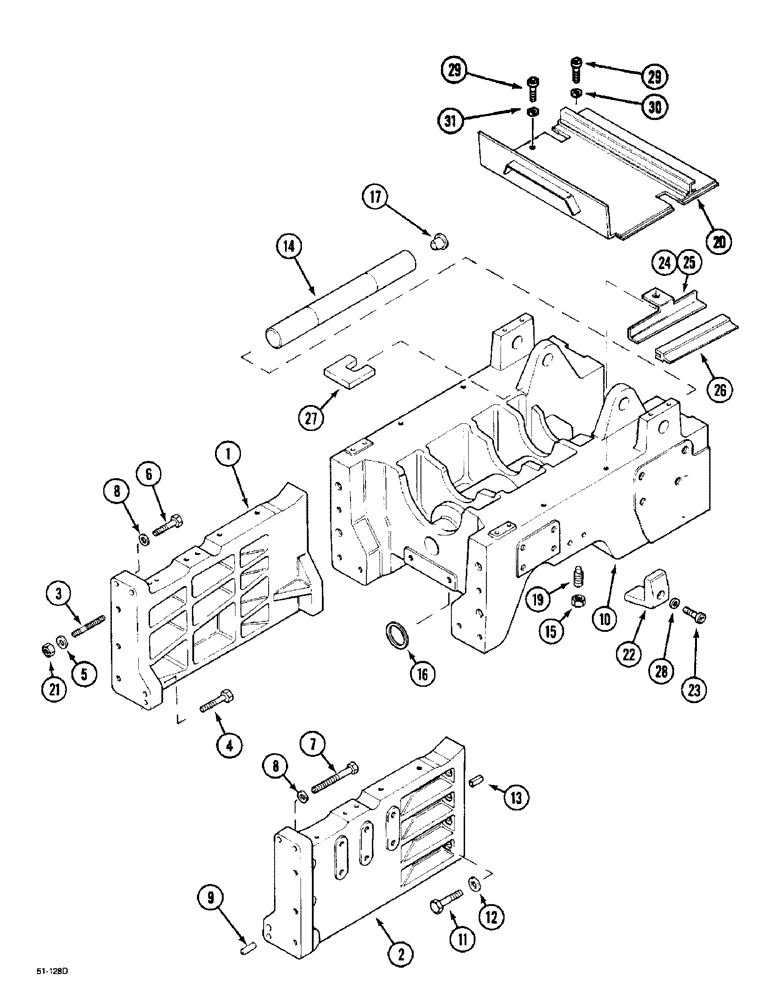

Запчасти Case IH 5150 (9A-2) - FRONT BOLSTER (09) - CHASSIS/ATTACHMENTS

1

1531065C1

RAIL

90111, 5120

1шт.

1

1531067C1

RAIL

90111, 5130, 5140, 5150

1шт.

2

1531066C1

RAIL

90111, 5120

1шт.

2

1531068C1

RAIL

90111, 5130, 5140, 5150

1шт.

3

1533228C1

STUD

M16

6шт.

4

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

5

3141764R1

WASHER

M16

8шт.

6

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

M12 x 55; 10.9

2шт.

7

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

2шт.

8

3399575R1

WASHER

4шт.

9

K657203

PIN

2шт.

10a

1533371C1

BOLSTER

90115, 5120, 5130, 5140 2WD Without Front Hitch, Start Serial: JJF1019253

1шт.

10a

1533372C1

BOLSTER

90115, 5120, 5130, 5140, MFD With Front Hitch, Start Serial: JJF1019253

1шт.

10b

1534380C4

BOLSTER

90115 MFD With Front Hitch And Front P.T.O., Serial Range: -JJF1019254

1шт.

10c

194920A1

BOLSTER

90115 MFD With Front Hitch And Front P.T.O., Serial Range: -JJF1045011

1шт.

10b

1534375C2

BOLSTER

90115, 5120, 5130, 5140, 2WD Without Front Hitch, Serial Range: -JJF1019254

1шт.

10c

196365A1

BOLSTER

90115 2WD Without Front Hitch, Serial Range: -JJF1045011

1шт.

10b

1534777C3

BOLSTER

90115 MFD With Front Hitch, Serial Range: -JJF1019254

1шт.

10c

194921A1

BOLSTER

90115 MFD With Front Hitch, Serial Range: -JJF1045011

1шт.

11

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

10шт.

12

3141764R1

WASHER

M16

10шт.

13

905686R1

LOCK PIN,M21 x 16, Slotted

21 x 16 mm

4шт.

14

3232823R1

AXLE PIN,48mm OD x 440mm L

SHAFT, 50310 MFD

1шт.

14

T102564

LARGE PIN

PIN, LARGE SHAFT, 50310, 5120, 5130, 5140, 2WD

1шт.

15

3402651R1

NUT

1шт.

16

3232826R1

SHIM,48mm ID x 85mm OD x 0.2mm Thk

adjusting 0.2 mm

1шт.

16

3232827R1

SHIM,0.5mm Thk

adjusting 0.5 mm

1шт.

16

3232828R1

SHIM,1mm Thk

adjusting 1.0 mm

1шт.

16

3232829R1

SHIM,48mm ID x 85mm OD x 1.5mm Thk

adjusting 1.5 mm

1шт.

17

T102863

PLUG

90115 ( - JJF1036192)

1шт.

19

T100025

SCREW

M16

1шт.

20

1533388C3

DEFLECTOR

BAFFLE, 90115 MFD With Front Hitch

1шт.

20

T104493

BAFFLE

90115 Without Front Hitch

1шт.

20

1533390C3

DEFLECTOR

BAFFLE, 90115 MFD With Front Hitch

1шт.

21

829-1316

NUT,M16, Cl 10

6шт.

1530765C1

PACKAGE, REPAIR

90115 Includes: 22, 23, 28

1шт.

22

1533292C1

STOP

2шт.

23

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

2шт.

716495R2

PLUG

5/8 in, 90115 Not Illustrated

12шт.

1531045C1

PLUG

10.4 mm, 90115 Not Illustrated

2шт.

1531047C1

PLUG

18.4 mm, 90115 Not Illustrated

12шт.

24a

1533977C2

HOLDER

BRACKET, Start Serial: JJF1019253

1шт.

25a

1534266C2

HOLDER

BRACKET, Start Serial: JJF1019253

1шт.

26a

1534240C1

SEAL

SEAL, 220 mm, 90115 Rubber, Start Serial: JJF1019253

2шт.

27

1533881C1

SEALING STRIP

2шт.

28

1530768C1

WASHER

2шт.

29

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

30

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

31

1533100C2

WASHER

6 mm

2шт.
