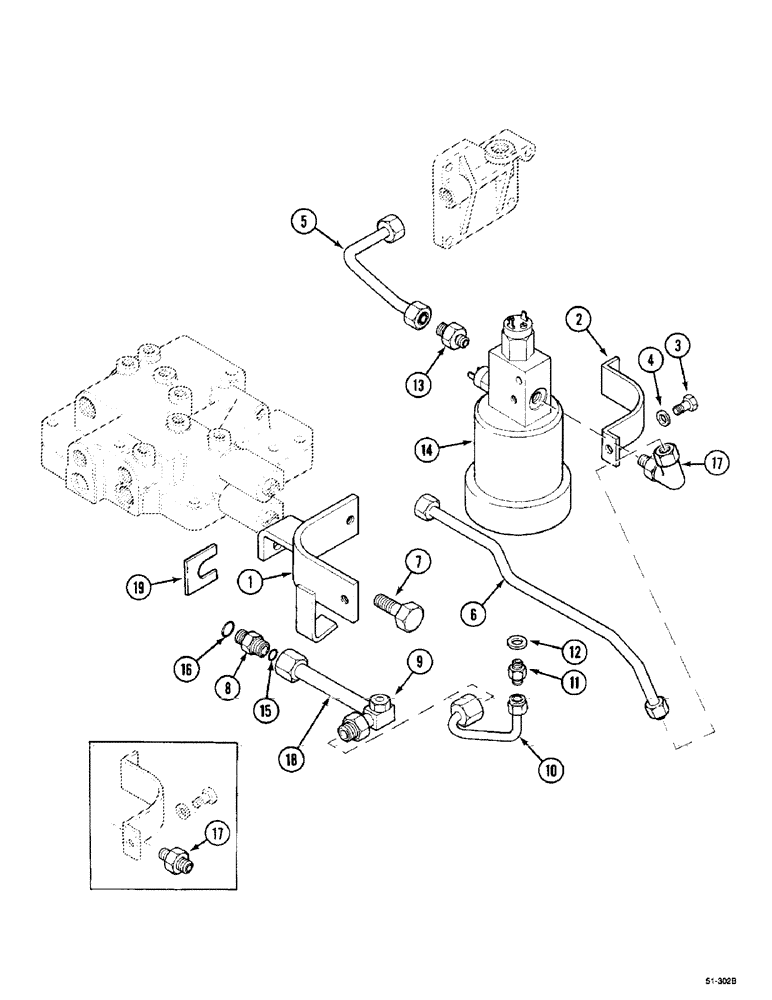

Запчасти Case IH 5150 (8-122) - PRESSURE REGULATING VALVE AND PIPING, 40 KM/H ( - JJF1024791) (08) - HYDRAULICS

1

1533269C2

SUPPORT ASSY.

1шт.

2

T103661

FIXING BRACKET

CLAMP

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

T104509

PIPE

1шт.

6

1533925C1

PIPE

86141 Includes: 17

1шт.

7

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

8

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86141, Includes 15, 16

1шт.

9

201-905

CAP,13/16"-16 ORFS

CAP

1шт.

10

T104512

PIPE

86141 Return

1шт.

11

3056174R1

HYD CONNECTOR,M12 x 1.5 x M14 x 1.5

1шт.

12

E135042

SEALING RING

SEALRING packing

1шт.

13

T100001

UNION

1шт.

14

REF

INSTRUCTION

VALVE control, 86141 See Figure: 8-124, Serial Range: -JJF1023565

1шт.

14

REF

INSTRUCTION

VALVE control, 86141 See Figure: 8-42, Serial Range: JJF1023566-1024791

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

T100001

UNION

86141, Serial Range: -JJF1019429

1шт.

17

1533926C1

ELBOW

86141 Adjustable, Serial Range: JJF1019430-1024791

1шт.

18

T104511

RETURN PIPE

1шт.

19

1533231C2

SPACER

1шт.
