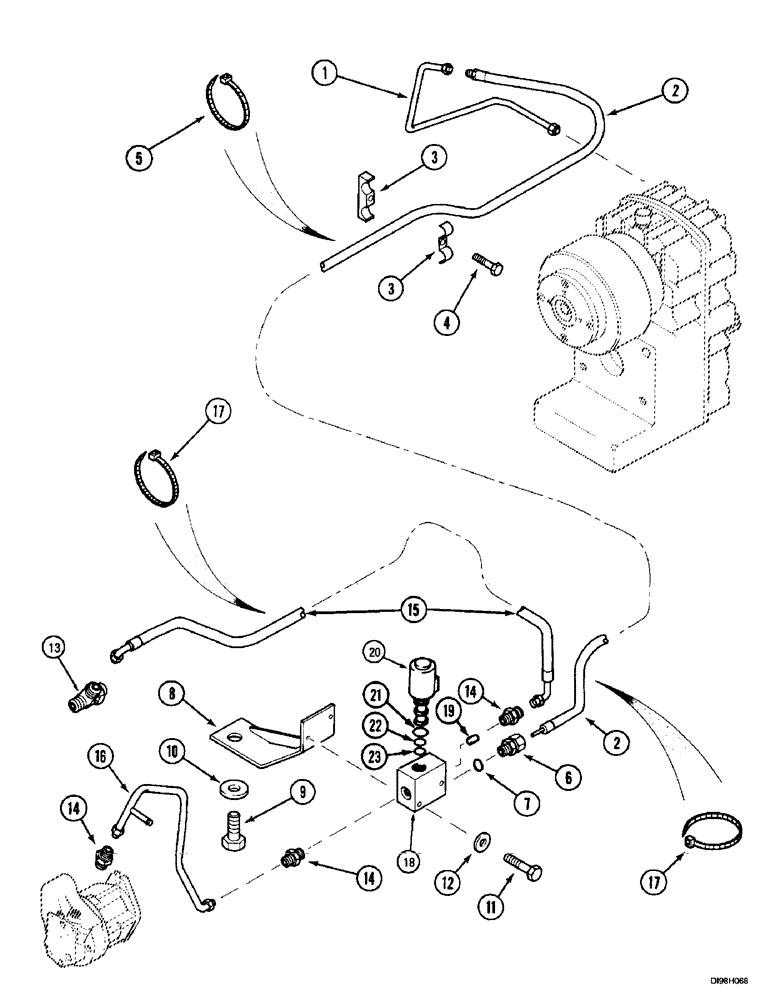

Запчасти Case IH 5150 (8-120) - HYDRAULIC PIPING - FRONT P.T.O. (08) - HYDRAULICS

1

1534314C1

PIPE

1шт.

2

1534312C2

HYDRAULIC HOSE

2450 mm (96-1/2 in), 66020, 5120

1шт.

2

1534313C2

HYDRAULIC HOSE

2690 mm (106 in), 66020, 5130, 5140, 5150

1шт.

3

T103135

CLAMP

1шт.

4

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

5

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

5шт.

6

1533078C1

UNION

CONNECTOR

1шт.

7

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

8

1534317C1

SUPPORT ASSY.

1шт.

9

905966R1

BOLT,Hex, M20 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

10

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

1шт.

11

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

1шт.

14

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3шт.

15

1534316C1

HOSE

955 mm (37-5/8 in)

1шт.

16

1530726C1

PIPE

1шт.

17

3402979R2

BAND

cable 350 mm

2шт.

1534318C2

VALVE

solenoid, 46039 Includes: 18-23

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE manifold

1шт.

19

1530702C1

SET SCREW

46039 Orifice

1шт.

20

118872A1

VALVE

solenoid, 46039 Includes: 21-23

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.
