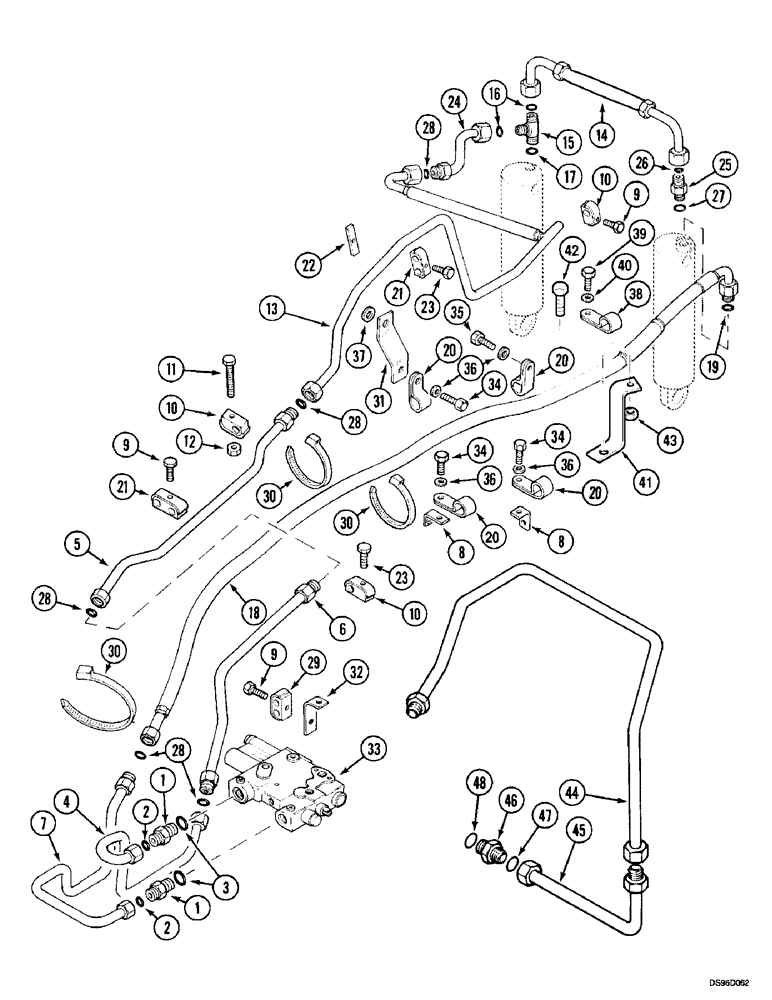

Запчасти Case IH 5150 (8-116) - HYDRAULIC PIPING - FRONT HITCH, DOUBLE ACTING (08) - HYDRAULICS

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

86151 Includes 2, 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

1530712C1

PRESSURE PIPE

86151 Rear

1шт.

5

1987630C1

HOSE ASSY.

86151 Middle

1шт.

6

1531682C1

PRESSURE PIPE

86151 Middle

1шт.

7

1530713C1

PRESSURE PIPE

86151 Rear

1шт.

8

1530727C1

SUPPORT ASSY.

1шт.

9

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.

10

T101170

CLAMP

86151 (JJF1034500 - )

2шт.

10

T101170

CLAMP

86151 ( - JJF1034499)

3шт.

11

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

M6 x 70

1шт.

12

825-1406

NUT,M6, Cl 8

1шт.

13

136957A1

PIPE

86151, 5120

1шт.

13

1530699C2

PIPE

86151, 5130, 5140, 5150

1шт.

14

1531095C1

HOSE

375 mm (14-7/8 in)

1шт.

15

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

86151 Includes: 16, 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

1530721C1

HOSE ASSY.

86151, 5120, Includes: 19

1шт.

18

1530714C1

HOSE ASSY.

86151, 5130, 5140, 5150, Includes: 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

1530720C1

CLAMP

4шт.

21

T103149

CLAMP

1шт.

22

3402819R1

PLATE

BAR

1шт.

23

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

24

1531096C1

HYD TUBE,12 mm OD, 120, 84 mm Length

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86151, Includes 26, 27

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

29

T103135

CLAMP

86151, Start Serial: JJF1034500

2шт.

29

T103135

CLAMP

86151, Serial Range: -JJF1034499

1шт.

30

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

3шт.

31

1530717C1

SUPPORT ASSY.

1шт.

32

1531746C2

BRACKET

1шт.

33

REF

INSTRUCTION

VALVE control, 86151 See Figure: 8-82

1шт.

34

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

35

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

36

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

38

1530720C1

CLAMP

1шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

41

1533454C1

SUPPORT

1шт.

42

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

43

825-1406

NUT,M6, Cl 8

1шт.

44

1531684C1

PRESSURE PIPE

86151, 5120, 5130, 5140

1шт.

45

1533088C1

HYD TUBE,12 mm OD, 142, 85 mm Length

6151, 5120, 5130, 5140

1шт.

46

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86151, 5120, 5130, 5140, Includes 47, 48

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
