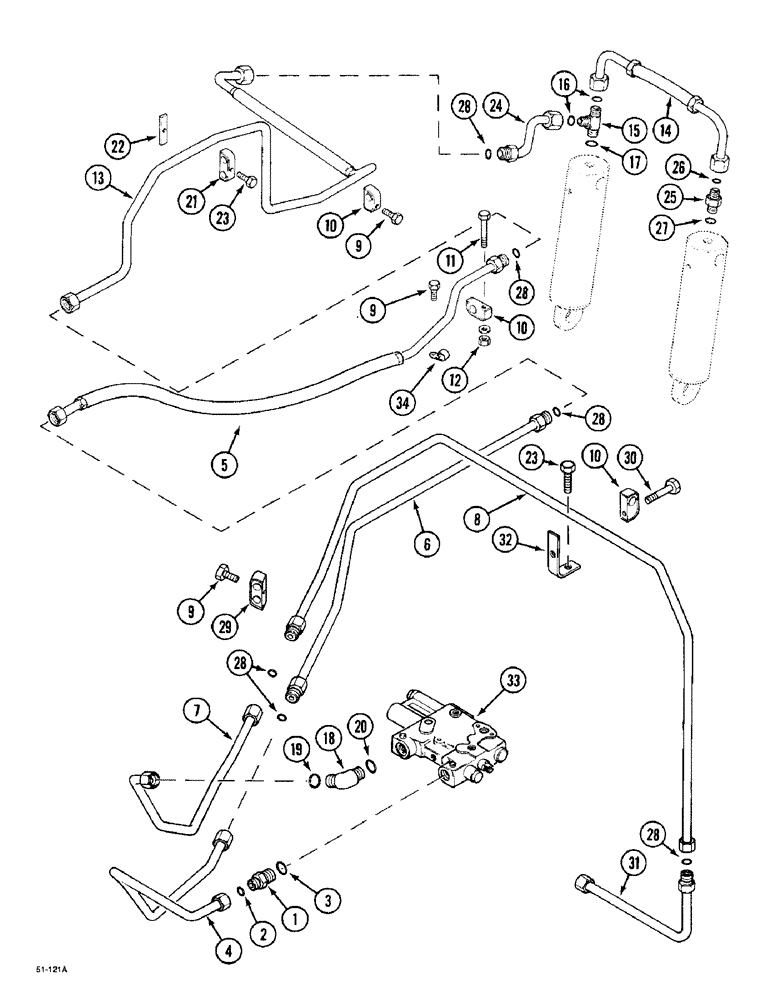

Запчасти Case IH 5150 (8-114) - HYDRAULIC PIPING - FRONT HITCH, SINGLE ACTING (08) - HYDRAULICS

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

86151 Includes 2, 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

1531681C1

PRESSURE PIPE

86151 Rear

1шт.

5

189479A1

PIPE

86151, 5120, 5130, 5140, Serial Range: -JJF1010402

1шт.

5

1530721C1

HOSE ASSY.

86151, 5120, Start Serial: JJF1010403

1шт.

5

1530714C1

HOSE ASSY.

86151, 5130, 5140, 5150, Start Serial: JJF1010403

1шт.

6

1531682C1

PRESSURE PIPE

86151 Middle

1шт.

7

1531683C1

PRESSURE PIPE

1шт.

8

1531684C1

PRESSURE PIPE

1шт.

9

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.

10

T101170

CLAMP

3шт.

11

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

12

825-1406

NUT,M6, Cl 8

1шт.

13

136957A1

PIPE

1шт.

14

1531095C1

HOSE

375 mm (14-7/8 in)

1шт.

15

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

86151 Includes: 16, 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86151, Incl. 19, 20

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

T103149

CLAMP

1шт.

22

3402819R1

PLATE

BAR

1шт.

23

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

24

1531096C1

HYD TUBE,12 mm OD, 120, 84 mm Length

1шт.

25

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86151, Includes 26, 27

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

29

T103135

CLAMP

1шт.

30

614-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8, Full Thd

1шт.

31

1533088C1

HYD TUBE,12 mm OD, 142, 85 mm Length

1шт.

32

T104524

BRACKET

1шт.

33

1978382C3

VALVE, CONTROL

1шт.

34

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

1шт.
