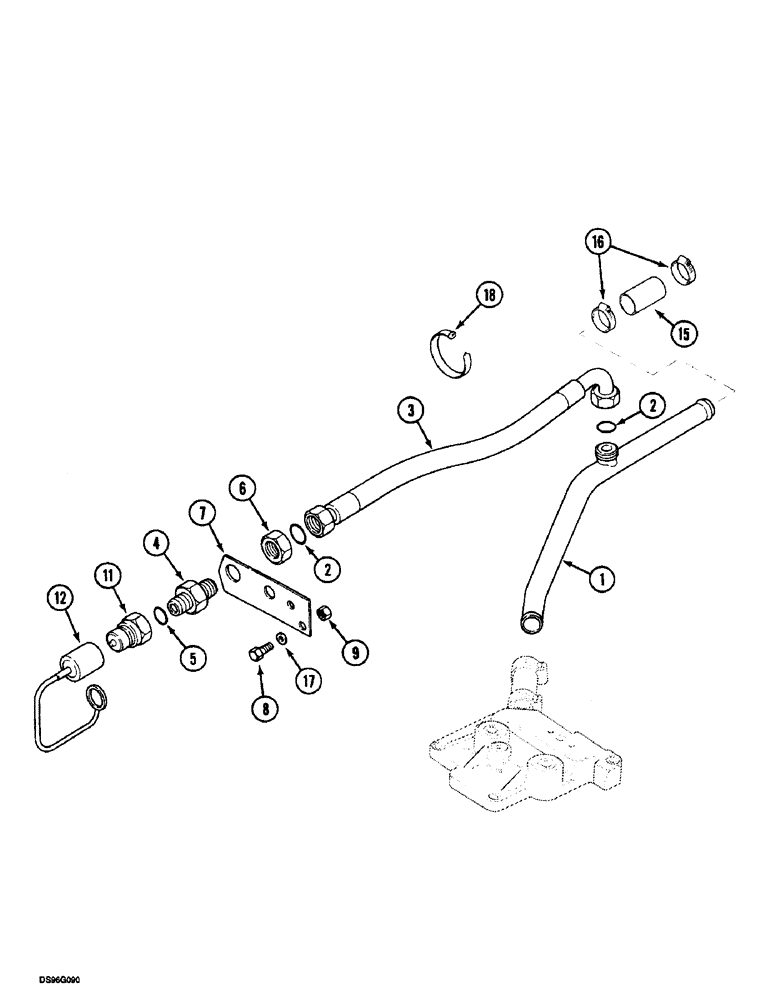

Запчасти Case IH 5150 (8-110) - MOTOR RETURN COUPLER (08) - HYDRAULICS

1

1533024C1

TUBE

86135 Rear

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

3

1533025C1

HOSE

450 mm (17-3/4 in), 86135 Return

1шт.

4

1533233C1

FITTING

union

1шт.

5

1533305C1

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

1шт.

6

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

7

1533026C1

SUPPORT

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

9

825-1410

NUT,M10, Cl 8

2шт.

11

1533232C1

COUPLING

ASSY., 86135 Male

1шт.

12

1533433C1

CAP

1шт.

15

1531600C1

HOSE

80 mm (3-1/4 in)

2шт.

16

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

18

3148767R2

COLLAR CLAMP

STRAP cable, 197 mm

6шт.
