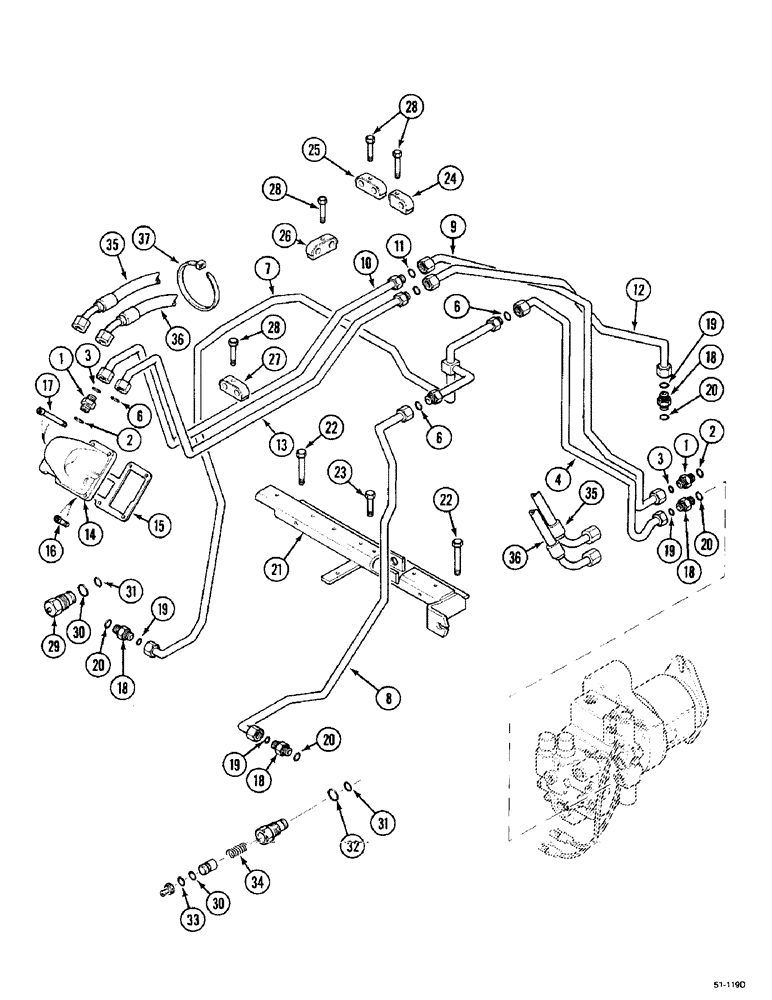

Запчасти Case IH 5150 (8-104) - DRAFT CONTROL PIPING (08) - HYDRAULICS

1

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

86133 Includes: 2, 3

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

1531747C1

HYD TUBE

T1, 86133, 5120, 5130, 5140 Trans No.: - JKA58094

1шт.

4

1533808C1

PIPE

T1, 86133 Trans No.: JKA58095 -

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

1530984C1

PIPE

X1, 86133 Left

1шт.

8

1530983C1

PIPE

X1, 86133 Right (JJF1019407 - ), Start Serial: JJF1019407

1шт.

8

1533012C1

PIPE ASSY.

X1, 86133, 5120, 5130, 5140 Right, Serial Range: -JJF1019406

1шт.

9

1531748C1

HYD TUBE

X2, 86133, 5120, 5130, 5140 Trans No.: - JKA58094

1шт.

9

1533809C1

PIPE

X2, 86133 Trans No.: JKA58095 -

1шт.

10

192871A1

PIPE

X2, 86133 Position Control Rear

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

1531790C1

HYD TUBE

X4, 86133 Front

1шт.

13

192872A1

PIPE

X4, 86133 Rear

1шт.

14

REF

INSTRUCTION

SENSOR ASSY., 86143 Position Control, See Figure: 8-108

1шт.

15

1978088C2

GASKET

1шт.

16

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

4шт.

17

861-6050

HEX SOC SCREW,M6 x 50mm, Cl 12.9

1шт.

18

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

86133, Incl 19, 20

4шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

1534544C1

SUPPORT ASSY.

1шт.

22

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

T101169

CLAMP

1шт.

25

T103149

CLAMP

1шт.

26

T103147

FIXING BRACKET

CLAMP

1шт.

27

T103148

CLAMP

1шт.

28

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

29

1335813C3

VALVE

solenoid, 86133 Draft Sensing Lower, Includes: 30-34

2шт.

1346320C2

SEAL KIT

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

3866923C1

O-RING,3mm Thk x 14mm ID, Cl 5

3 x 14 mm

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING

1шт.

259532A1

PACKAGE, REPAIR

service, 86133 Includes: 36, 37, 38

1шт.

35

275959A1

HOSE ASSY.

1800 mm, 86133 Park Lock, Switzerland

1шт.

36

275960A1

HOSE ASSY.

1700 mm, 86133 Park Lock, Switzerland

1шт.

37

3402979R2

BAND

cable, 350 mm

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
