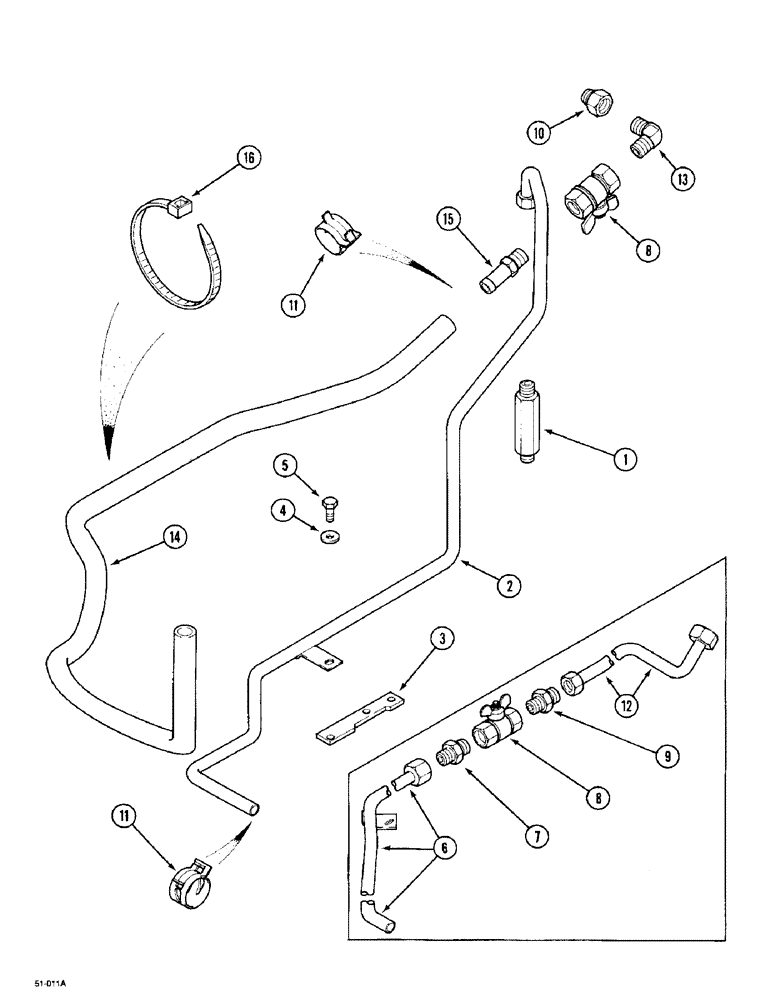

Запчасти Case IH 5150 (2-030) - HEATER HOSES (02) - ENGINE

1

T102832

ADAPTER

1шт.

2

T104603

TUBE,0.625" OD x 24.21, 16.93" L

5120

1шт.

CAB NO. - JKJ77172

1шт.

2

T104594

TUBE,0.625" OD

5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

2

1530616C2

HEATER TUBE

5120

1шт.

CAB NO. JKJ77173 -

1шт.

2

1530615C2

HEATER TUBE

5130, 5140, 5150

1шт.

CAB NO. JKJ77173 -

1шт.

3

T104601

BRACKET

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5120, 5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

CAB NO. JKJ77173 -

1шт.

5

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

5120, 5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

6

T104604

TUBE,0.625" OD x 16.93, 9.45" L

5120

1шт.

CAB NO. - JKJ77172

1шт.

6

T104595

TUBE,0.652" OD x 16.34, 9.45" L

5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

7

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

Union, 5120, 5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

8

T102597

COCK

Tap, 5120, 5130, 5140

1шт.

9

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

5120, 5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

10

T102823

REDUCER FITTING

union

1шт.

11

1954736C1

HOSE CLAMP,#24

2шт.

12

T103789

TUBE,12 mm OD x 234, 100 mm L

5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

13

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

5130, 5140

1шт.

CAB NO. - JKJ77172

1шт.

13

217-1229

ELBOW,90 Degree, 3/8"-18 Male

1шт.

CAB NO. JKJ77173 -

1шт.

14

REF

INSTRUCTION

HOSE, Cut From : 97252CX

1шт.

CAB NO. JKJ77173 -

1шт.

15

1534497C1

ADAPTER

1шт.

CAB NO. JKJ77173 -

1шт.

16

3148767R2

COLLAR CLAMP

STRAP cable 197 mm

6шт.

CAB NO. JKJ77173 -

1шт.

97252CX

HOSE

15240 mm, Bulk Length : 50 ft

1шт.
