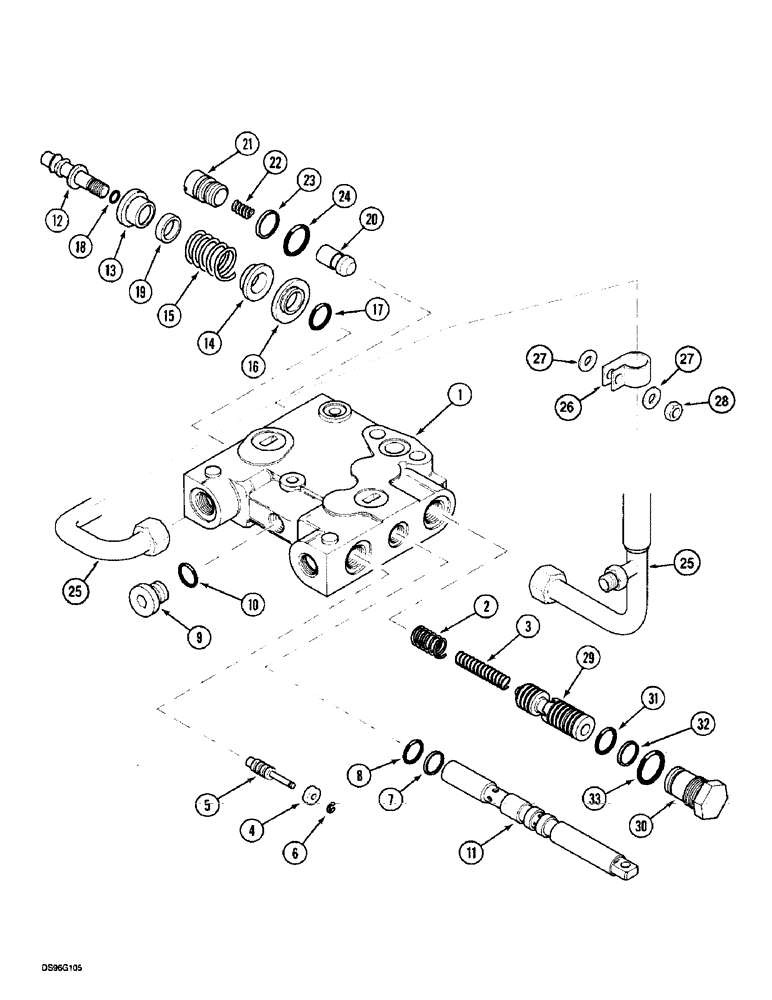

Запчасти Case IH 5150 (8-098) - REMOTE VALVE ASSEMBLY, SINGLE ACTING (08) - HYDRAULICS

1978382C3

VALVE, CONTROL

86143 Consists Of: 1-75

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

1340921C1

SPRING

1шт.

3

1980066C1

SPRING

1шт.

4

1957861C1

WASHER

1шт.

5

1957862C1

PISTON

1шт.

6

1957859C1

SNAP RING

1шт.

7

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

wiper

1шт.

8

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

9

86529630

PLUG,Hex Soc, 3/8"-24 ORB

86143 Includes 10

1шт.

10

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

COIL ASSY., 86143 Order: 1978382C3

1шт.

12

1980084C2

STUD

1шт.

13

G108913

SPRING CUP

RETAINER

1шт.

14

G108914

SPRING CUP

RETAINER

1шт.

15

G108915

SPRING

1шт.

16

G108630

HOLDER

RETAINER

1шт.

17

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

1980085C1

SPACER

STOP

1шт.

1542563C1

KIT

86143 Consists Of: 20-24

1шт.

20

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

21

NSS

NOT SOLD SEPARAT

FRAME

1шт.

22

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

23

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

24

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

25

1530796C1

HOSE

ASSY., 86143 Oil Return

1шт.

26

T103552

CLAMP

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

825-1406

NUT,M6, Cl 8

1шт.

29

G110089

SPOOL

1шт.

30

G110214

PLUG

86143 Includes: 31, 32

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup

1шт.
