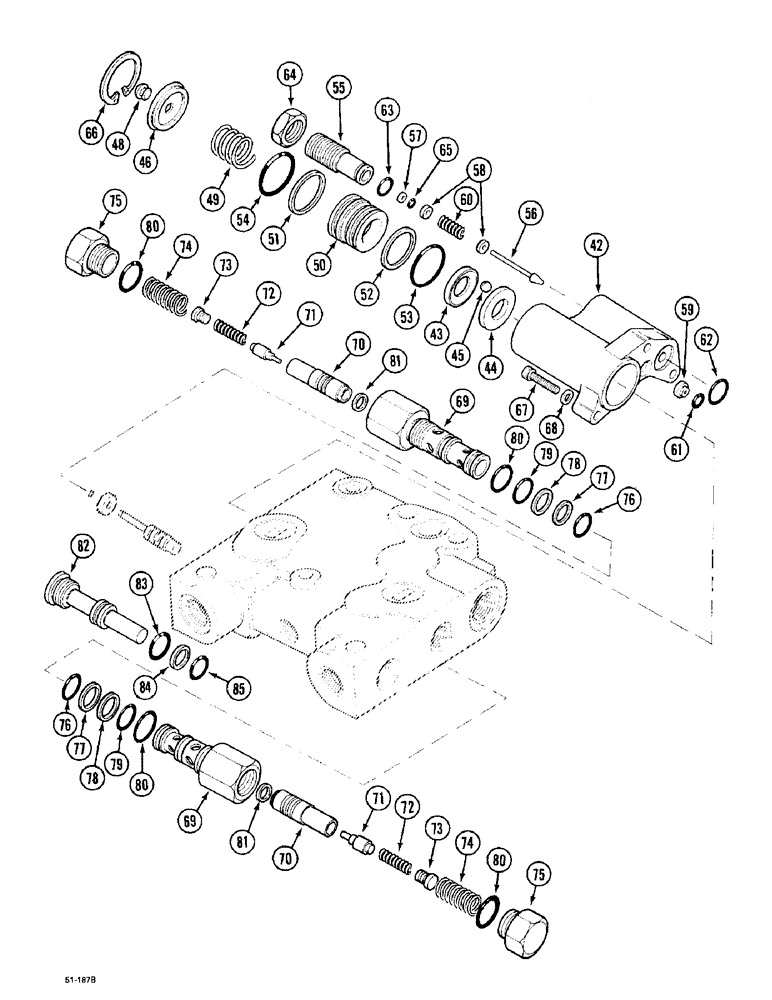

Запчасти Case IH 5150 (8-094) - REMOTE VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1980160C1
SPOOL
DETENT, 86143 Includes: 42-85
1шт.
42
1976957C1
COVER ASSY
1шт.
43
G108911
WASHER
86143 Outer
1шт.
44
G108912
WASHER
86143 Inner
1шт.
45
211-205
BALL
7/32; 24,CRS
8шт.
46
1341975C1
SPRING CUP
RETAINER
1шт.
48
G107780
VALVE, CHECK
PLUG
1шт.
49
G110152
SPRING
1шт.
G108921
PISTON
ASSY., 86143 Includes: 50-54
1шт.
50
G108908
PISTON
1шт.
51
G108728
BACK-UP RING
86143 Large
1шт.
52
G108922
BACK-UP RING
86143 Small
1шт.
53
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
54
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
55
G110300
PLUG
1шт.
56
G110279
VALVE POPPET
1шт.
57
G110289
BACK-UP RING
1шт.
58
G110281
SPRING CUP
WASHER
2шт.
59
G108918
ORIFICE
WASHER
1шт.
60
G109275
SPRING
1шт.
61
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
62
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
63
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
64
425-1510
JAM NUT,Jam, 5/8"-18, G5
1шт.
65
238-5004
O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro
1шт.
66
A30975
SNAP RING,1.188", Int, #118
snap
1шт.
67
61-31016
HEX SOC SCREW,#10 - 24 x 1"
3шт.
68
495-11022
WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk
(7/32" x 7/16" x 3/64")
3шт.
1971801C2
CHECK VALVE
control, 86143 Includes: 69-81
2шт.
69
NSS
NOT SOLD SEPARAT
VALVE check
1шт.
70
NSS
NOT SOLD SEPARAT
VALVE poppet, 86143 Main
1шт.
71
NSS
NOT SOLD SEPARAT
VALVE poppet, 86143 Pilot
1шт.
72
1957817C1
VALVE SPRING
86143 Pilot
1шт.
73
1957964C1
RETAINER
1шт.
74
1957965C1
VALVE SPRING
86143 Main
1шт.
75
NSS
NOT SOLD SEPARAT
CAP
1шт.
76
238-6013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
7/16 ID x 1/16
1шт.
77
G110287
BACK-UP RING
86143 Inner
1шт.
78
G108727
BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk
86143 Outer
1шт.
79
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
80
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
81
G108724
BACK-UP RING
1шт.
1971475C1
PLUG
ASSY., 86143 Includes: 82-84
1шт.
82
1971476C1
PLUG
1шт.
83
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
84
G110287
BACK-UP RING
1шт.
85
G110295
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
1шт.
Выбрано товаров: 47
