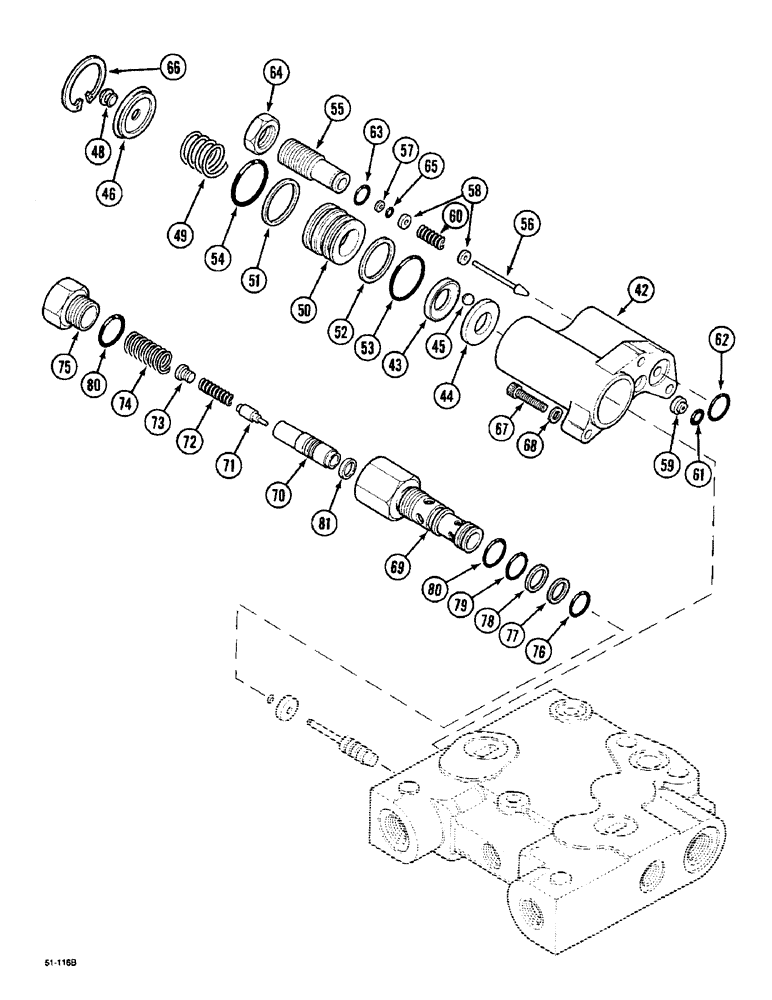

Запчасти Case IH 5150 (8-086) - REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

1980160C1

SPOOL

DETENT, 86143 Includes: 42-81

1шт.

42

1976957C1

COVER ASSY

1шт.

43

G108911

WASHER

86143 Outer

1шт.

44

G108912

WASHER

86143 Inner

1шт.

45

211-205

BALL

7/32; 24,CRS

8шт.

46

1341975C1

SPRING CUP

RETAINER

1шт.

48

G107780

VALVE, CHECK

PLUG

1шт.

49

G110152

SPRING

1шт.

G108921

PISTON

ASSY., 86143 Includes: 50-54

1шт.

50

G108908

PISTON

1шт.

51

G108728

BACK-UP RING

86143 Large

1шт.

52

G108922

BACK-UP RING

86143 Small

1шт.

53

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

G110300

PLUG

1шт.

56

G110279

VALVE POPPET

1шт.

57

G110289

BACK-UP RING

1шт.

58

G110281

SPRING CUP

WASHER

2шт.

59

G108918

ORIFICE

WASHER

1шт.

60

G109275

SPRING

1шт.

61

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

62

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

63

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

64

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

65

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

66

A30975

SNAP RING,1.188", Int, #118

1шт.

67

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

68

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

3шт.

1971801C2

CHECK VALVE

control, 86143 If So Equipped, Includes: 69-81

1шт.

69

NSS

NOT SOLD SEPARAT

VALVE check

1шт.

70

NSS

NOT SOLD SEPARAT

VALVE poppet, 86143 Main

1шт.

71

NSS

NOT SOLD SEPARAT

VALVE poppet, 86143 Pilot

1шт.

72

1957817C1

VALVE SPRING

86143 Pilot

1шт.

73

1957964C1

RETAINER

1шт.

74

1957965C1

VALVE SPRING

86143 Main

1шт.

75

NSS

NOT SOLD SEPARAT

CAP

1шт.

76

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

77

G110287

BACK-UP RING

86143 Inner

1шт.

78

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

86143 Outer

1шт.

79

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

81

G108724

BACK-UP RING

1шт.
