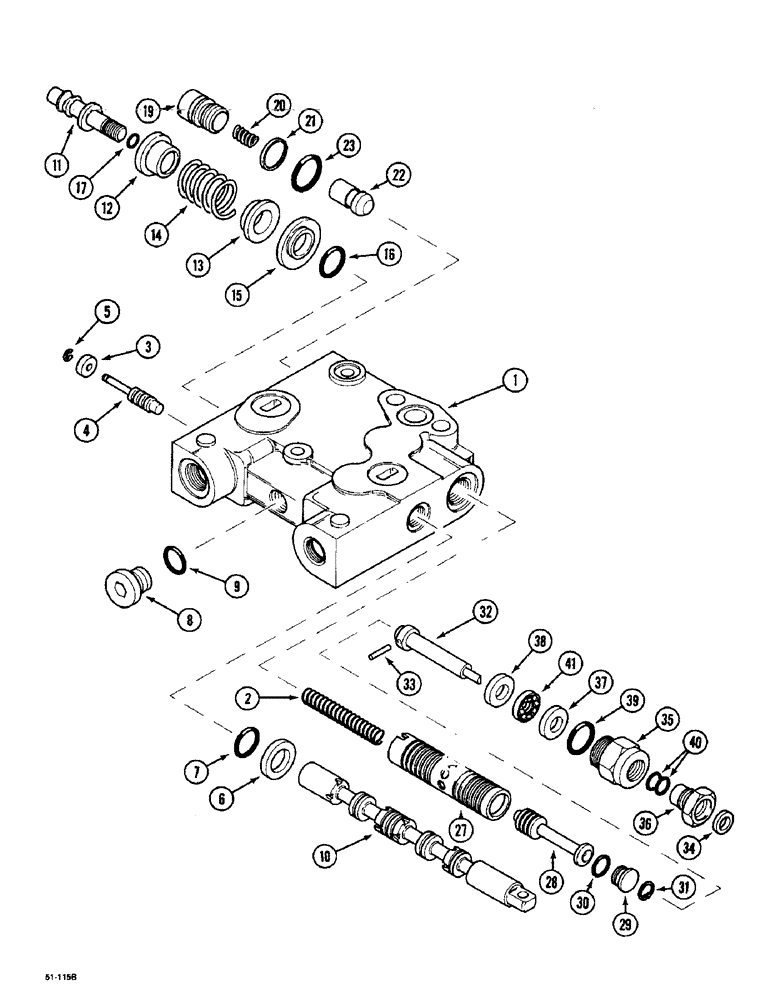

Запчасти Case IH 5150 (8-082) - REMOTE VALVE ASSEMBLY, WITH 1 CHECK VALVE (08) - HYDRAULICS

1980450C6

VALVE, CONTROL

ASSY., 86143 Consists Of: 1-81

1шт.

1980449C6

VALVE, CONTROL

86143 Without Check Valve, Consists Of: 1-17, 27-81

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME, 86143 Valve

1шт.

2

1957887C1

SPRING

86143 Inner

1шт.

3

1957861C1

WASHER

1шт.

4

1957862C1

PISTON

1шт.

5

1957859C1

SNAP RING

1шт.

6

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

wiper

1шт.

7

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

8

86529630

PLUG,Hex Soc, 3/8"-24 ORB

86143 Includes 9

1шт.

REF

INSTRUCTION

SPOOL, 86143 Includes: 10-17

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL, 86143 Order: 1980450C6, 1980449C6

1шт.

11

G108910

STUD

1шт.

12

G108913

SPRING CUP

RETAINER, 86143 Outer

1шт.

13

G108914

SPRING CUP

RETAINER, 86143 Inner

1шт.

14

G108915

SPRING

1шт.

15

G108630

HOLDER

RETAINER

1шт.

16

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

17

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

1542563C1

KIT

86143 Without Check Valve, Includes: 19-23

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME

1шт.

20

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

21

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

22

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

23

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

1994677C1

SLEEVE ASSY

86143 Includes: 27-31

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

28

NSS

NOT SOLD SEPARAT

COIL ASSY.

1шт.

29

1346312C1

PLUG

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

L31750

CIRCLIP,0.562", Int, #56

0.562", Int, #56

1шт.

1343735C2

VALVE

control, 86143 Flow Control Valve, See Figures: 8-50, 8-52, Includes: 32-41

1шт.

1980302C2

ROD

ASSY., 86143 Includes: 32, 33

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

33

138-56

LOCK PIN,1/8" x 11/16", Slotted

1шт.

34

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

35

1980226C1

PLUG

1шт.

36

1980227C1

NUT

NUT

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

38

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 ID x 3/32

1шт.

41

F13537

THRUST BEARING

thrust

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
