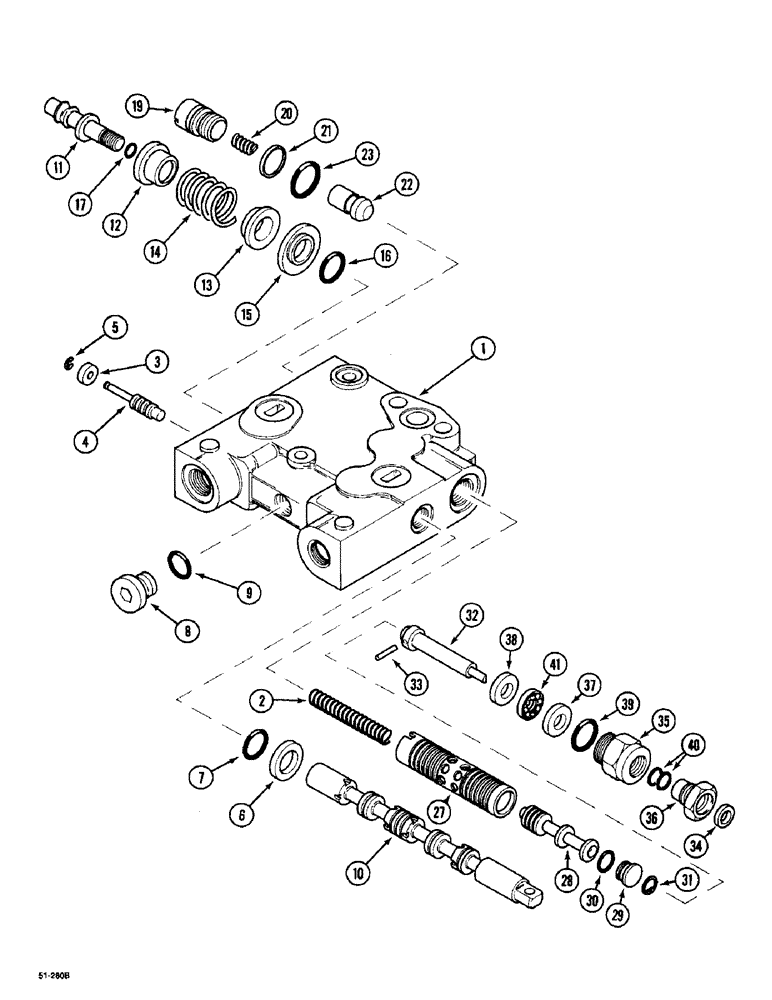

Запчасти Case IH 5150 (8-074) - PRIORITY VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1980448C7
VALVE, CONTROL
86143 Consists Of: 1-41, See Figure: 8-74
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME
1шт.
2
1980066C1
SPRING
1шт.
3
1957861C1
WASHER
1шт.
4
1957862C1
PISTON
1шт.
5
1957859C1
SNAP RING
1шт.
6
71121
WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk
wiper
1шт.
7
G110391
O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro
1шт.
8
86529630
PLUG,Hex Soc, 3/8"-24 ORB
86143 Includes 9
1шт.
9
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
1шт.
10
NSS
NOT SOLD SEPARAT
COIL ASSY., 86143 Order : 1980448C7
1шт.
11
G108910
STUD
1шт.
12
G108913
SPRING CUP
RETAINER, 86143 Outer
1шт.
13
G108914
SPRING CUP
RETAINER, 86143 Inner
1шт.
14
G108915
SPRING
1шт.
15
G108630
HOLDER
RETAINER
1шт.
16
G110391
O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro
1шт.
17
237-6002
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
1шт.
1542563C1
KIT
86143 Includes: 19-23
1шт.
19
NSS
NOT SOLD SEPARAT
FRAME
1шт.
20
1994581C1
SPRING,6.1mm OD x 31.1mm L
1шт.
21
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
backup
1шт.
22
1543329C1
VALVE POPPET,7mm ID x 13.8mm OD x 27mm L
1шт.
23
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
1346310C2
SLEEVE VALVE
86143 Includes: 27-31
1шт.
27
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
28
NSS
NOT SOLD SEPARAT
COIL ASSY.
1шт.
29
1346312C1
PLUG
1шт.
30
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
31
L31750
CIRCLIP,0.562", Int, #56
0.562", Int, #56
1шт.
1343735C2
VALVE
control, 86143 Flow Control Valve, See Figure: 8-50, 8-52, Consists Of: 32-41
1шт.
1980302C2
ROD
ASSY., 86143 Includes: 32, 33
1шт.
32
1980228C2
ROD, ADJUSTMENT
ROD, ADJUSTING SLEEVE
1шт.
33
138-56
LOCK PIN,1/8" x 11/16", Slotted
1шт.
34
G101066
SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk
1шт.
35
1980226C1
PLUG
1шт.
36
1980227C1
NUT
NUT
1шт.
37
G108956
RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk
1шт.
38
G108957
RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk
1шт.
39
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
41
F13537
THRUST BEARING
thrust
1шт.
Выбрано товаров: 41
