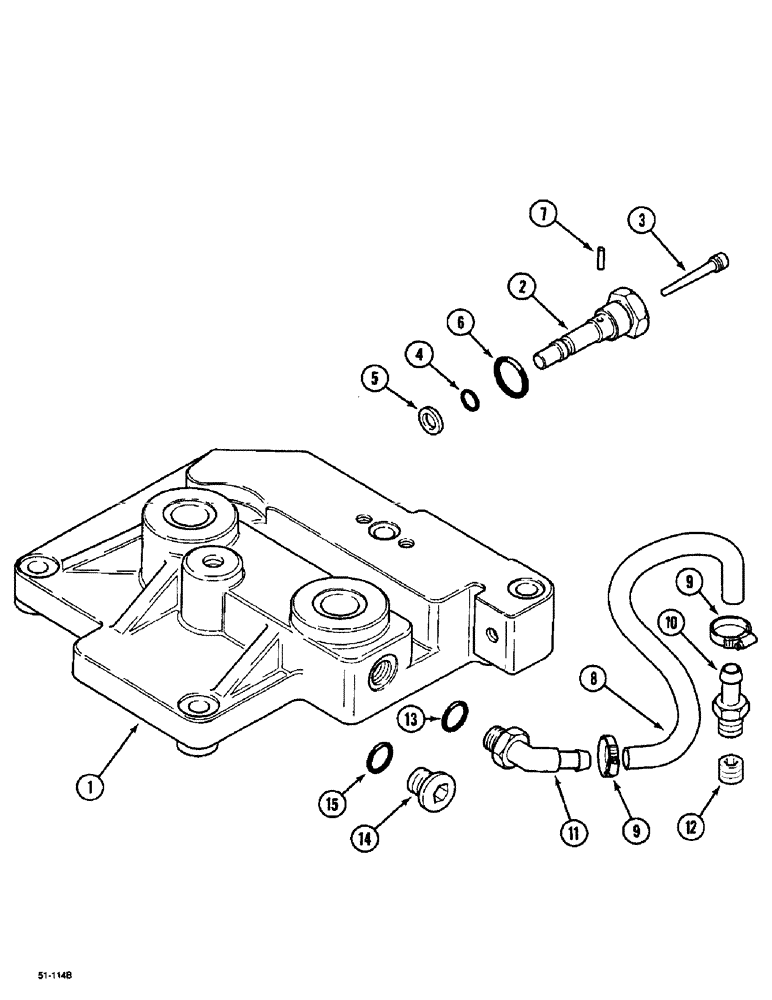

Запчасти Case IH 5150 (8-072) - INLET AND OUTLET MANIFOLD (08) - HYDRAULICS

1986866C1

COVER ASSY

MANIFOLD, 86143 Consists Of: 1-7

1шт.

1

1986867C1

COVER

1шт.

1978044C1

PLUG

ASSY., 86143 Includes: 2-7

1шт.

2

1978019C1

BODY

1шт.

3

A50763

VALVE

SCREEN filter

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

G108724

BACK-UP RING

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

138-7

LOCK PIN,1/16" x 9/16", Slotted

1шт.

1542861C2

STRIPPER PACKAGE

86143 Single Acting Trans No.: JKA54240 - Includes: 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE, 86143 Cut From: 364357C1

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

10

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

3/8 stem x 3/4 Or

1шт.

11

130912A1

FITTING

3/8 x 9/16 in

1шт.

1986943C1

STRIPPER PACKAGE

86143 Single Acting Trans No.: - JKA54239 Includes: 8-13

1шт.

8

NSS

NOT SOLD SEPARAT

86143 Cut From: 427683C1

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

10

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

1шт.

11

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

12

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

13

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

14

9625178

PLUG,9/16" - 18 ORB

86143, Incl. 15

1шт.

364357C1

LARGE HOSE

HOSE,LARGE 15240 mm (600 in), 86143 Bulk Length

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

50 ft, 86143 Bulk Length

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
