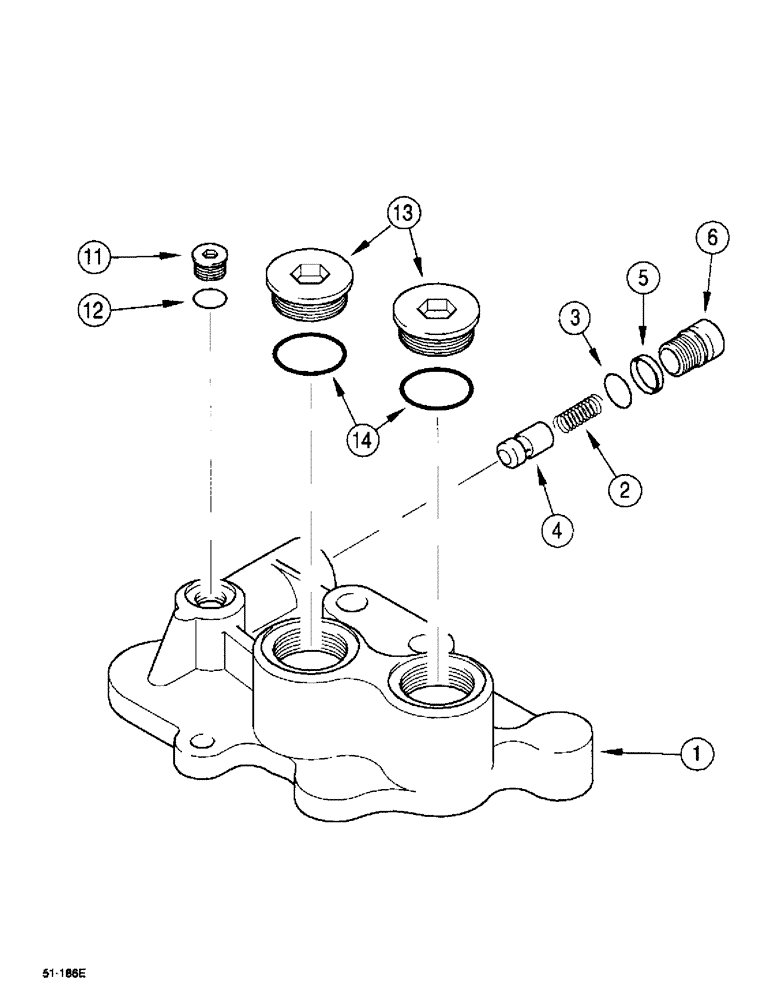

Запчасти Case IH 5150 (8-070) - REMOTE VALVE END COVER, WITH POWER BEYOND (08) - HYDRAULICS

1346446C2

VALVE

KIT, 86143 Consists Of: 1-18

1шт.

REF

INSTRUCTION

COVER ASSY., 86143 Consists Of: 1-14

1шт.

1

1346336C1

COVER

1шт.

1542563C1

KIT

86143 Includes: 2-6

1шт.

2

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME, 86143 Order: 1542563C1

1шт.

11

9625178

PLUG,9/16" - 18 ORB

86143, Incl. 12

1шт.

13

9841223

PLUG,1-1/16" - 12 ORB

86143, Incl. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
