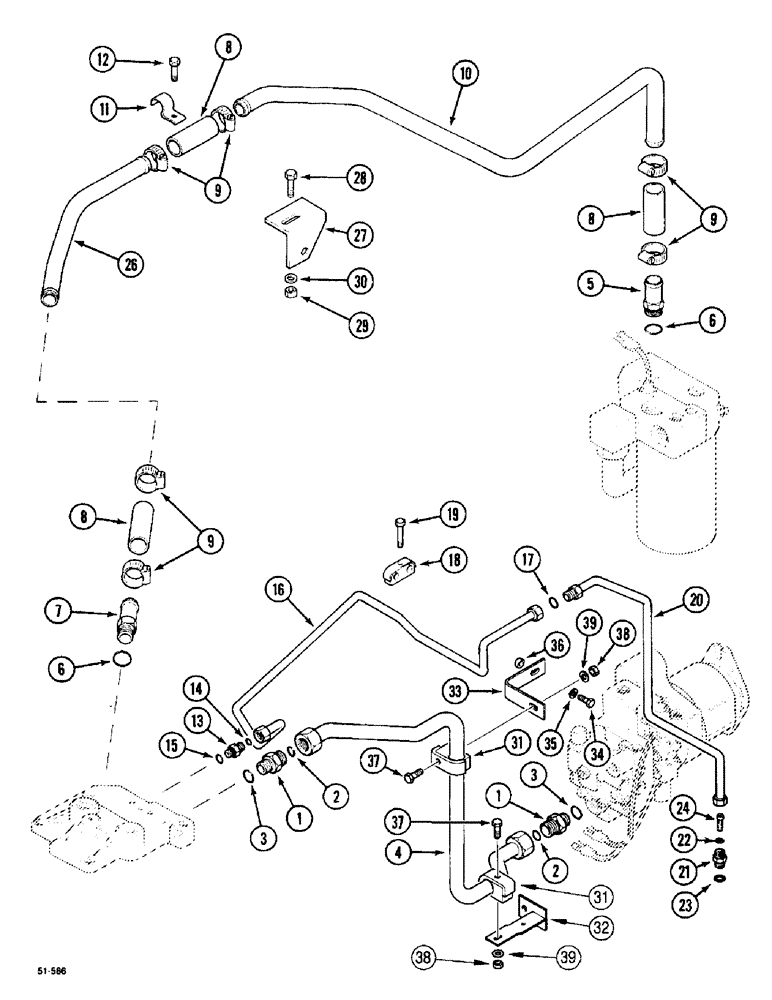

Запчасти Case IH 5150 (8-066) - AUXILIARY VALVES, PIPES AND COUPLINGS (08) - HYDRAULICS

1

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

86133, Includes Ref. 2, 3

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

187966A1

PIPE

86133 Pressure

1шт.

5

T100045

CONNECTOR, ELEC

CONNECTOR 86135 Includes: 6

1шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x x7/64 in

1шт.

7

1343779C1

FITTING

VALVE check, 86135 Includes: 6

1шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x x7/64 in

1шт.

8

1531600C1

HOSE

80 mm (3-1/4 in)

3шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6шт.

10

1533288C1

RETURN PIPE

86135 Return

1шт.

11

3141095R1

CLAMP

1шт.

12

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

13

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

86133 Includes: 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

1531390C2

HYD TUBE

86133 Rear

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

T103147

FIXING BRACKET

CLAMP

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

20

1531749C1

HYD TUBE

86133 Front Trans No.: - JKA58094

1шт.

20

1533577C1

HYD TUBE

86133 Front Trans No.: JKA58095 -

1шт.

21

1534508C1

FITTING

ELBOW ASSY., 86133 See Figure: 8-22, Includes: 22-24 Trans No.: - JKA58094

1шт.

21

1534787C1

FITTING

86133 Includes: 22-24 Trans No.: JKA58095 -

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

1533329C1

FILTER SCREEN

1шт.

26

1531955C1

PIPE

86133 Return

1шт.

27

1531969C1

SUPPORT

1шт.

28

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

29

825-1406

NUT,M6, Cl 8

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

191056A1

PACKAGE, REPAIR

86133 Consists Of: 4, 31-39

1шт.

31

191054A1

CLAMP

2шт.

32

191050A1

SUPPORT ASSY.

1шт.

33

191053A1

SUPPORT

1шт.

34

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

1шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

36

191055A1

SPACER

2шт.

37

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

38

825-1406

NUT,M6, Cl 8

2шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
