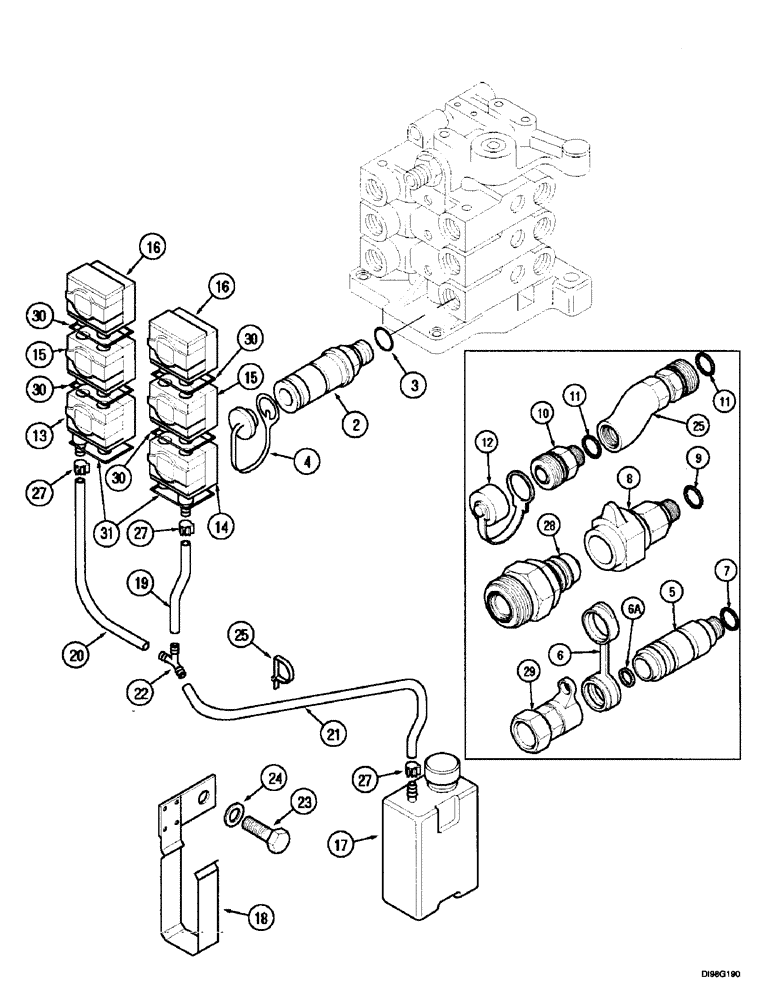

Запчасти Case IH 5150 (8-062) - HYDRAULIC COUPLINGS AND COLLECTORS (08) - HYDRAULICS

2

242275A1

COUPLING, BREAK AWAY

86143 (Maxxum Pro - ) Break-Away Includes: 3

1шт.

1534623C1

SEAL KIT

repair, 86143 Seals Used With Coupling: 242275A1 - 1954145C2

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

T104539

DUST CAP

1шт.

5

93177C5

COUPLING, BREAK AWAY

86143 ( - Maxxum Pro) Break-Away Includes: 6A

1шт.

6a

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

KIT repair, 86143

1шт.

6

1954146C1

CAP

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

1954145C2

COUPLING, BREAK AWAY

86143 ( - Maxxum Pro) Push-Pull Includes: 9

1шт.

1534623C1

SEAL KIT

repair, 86143 Seals Used With Coupling: 242275A1 - 1954145C2

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

1954144C2

COUPLING

86143 Screw On Coupling

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

T104552

CAP

1шт.

13

243171A1

COUPLING FLANGE

TRAP, 86111 Left

1шт.

14

243172A1

COUPLING FLANGE

TRAP, 86111 Right

1шт.

15

243173A2

TRAP

86111 Includes: 30

2шт.

16

243174A2

TRAP

86111 Includes: 30

2шт.

17

242278A1

BOTTLE,0.6L

1шт.

18

242279A1

SUPPORT

1шт.

19

242280A1

HOSE,9.50 mm ID x 320.00 mm, SAE 30R2 Type 1, SAE 100R6

1шт.

20

242281A1

HOSE,9.50 mm ID x 220.00 mm, SAE 30R2 Type 1, SAE 100R6

1шт.

21

242282A1

HYDRAULIC HOSE,9.50 mm ID x 280.00 mm, SAE 30R2 or SAE 100R6

500 mm (19-3/4 in)

1шт.

22

246327A1

TEE

CONNECTOR

1шт.

23

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

24

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

25

1531428C1

COUPLING

ADAPTER, 86111 ( - MAXXUM Pro)

1шт.

27

255611A1

CLAMP

3шт.

28

82010C1

PUSH-PULL COUPLING

ADAPTER, 86111, Serial Range: Push-Pull-Break-Away

1шт.

29

82009C1

PUSH-PULL COUPLING

ADAPTER, 86111 Break-Away To Push-Pull

1шт.

30

284575A1

O-RING

1шт.

31

284575A1

O-RING

2шт.
