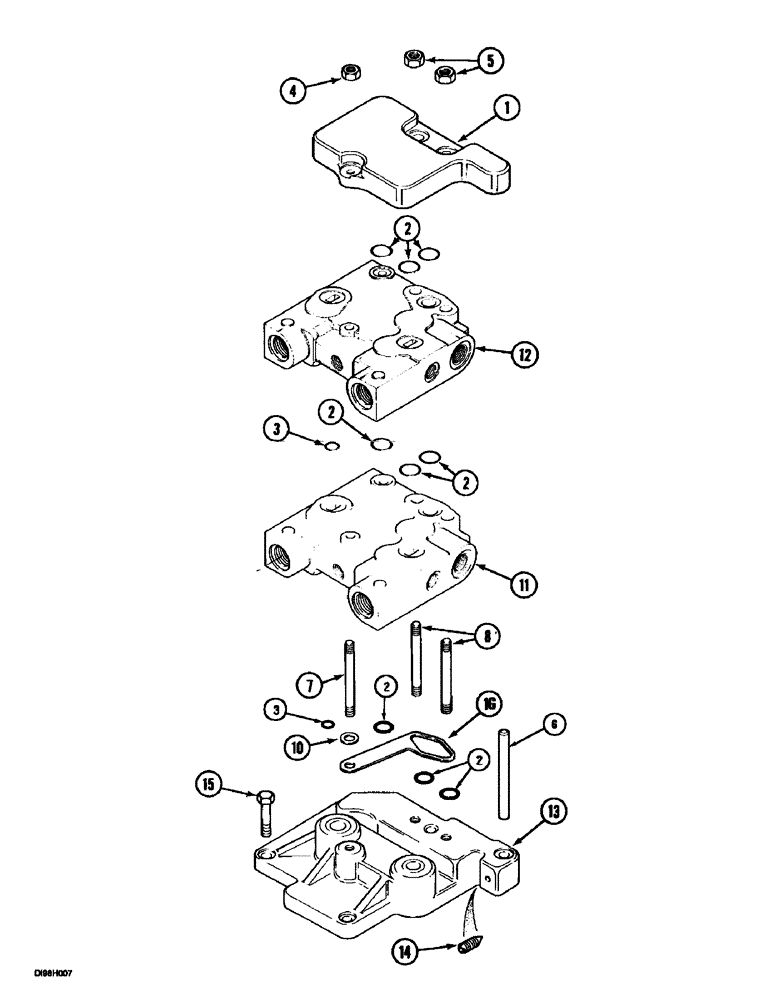

Запчасти Case IH 5150 (8-060) - REMOTE CONTROL VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

COVER ASSY., 86143 See Figure: 8-70 With Power Beyond

1шт.

1

G110143

COVER

86143 Without Power Beyond

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

4

824-1410

NUT,M10, Cl 5

M10

1шт.

5

829-1412

NUT,M12, Cl 10.9

2шт.

6

G110410

ROD

PIN pivot, 86143 1 Valve

1шт.

6

G110178

ROD

PIN pivot, 110 mm, 86143 2 Valve

1шт.

6

G110177

ROD

PIN pivot, 154 mm, 86143 3 Valve

1шт.

6

G110176

ROD,16mm OD x 199mm L

PIN pivot, 198 mm, 86143 4 Valve

1шт.

1346445C1

SET

86143 Consists Of: 7, 8

1шт.

7

1346126C3

TRUSS ROD

STUD, 86143 1 Valve

1шт.

7

1346128C3

TRUSS ROD

STUD, 10 x 154 mm, 86143 2 Valve

1шт.

7

1346130C3

TRUSS ROD

STUD, 10 x 199 mm, 86143 3 Valve

1шт.

7

1346132C3

TRUSS ROD

STUD, 10 x 243 mm, 86143 4 Valve

1шт.

8

1346127C3

TRUSS ROD

STUD, 86143 1 Valve

2шт.

8

1346129C3

TRUSS ROD

STUD, 12 x 154 mm, 86143 2 Valve

2шт.

8

1346131C3

TRUSS ROD

STUD, 12 x 199 mm, 86143 3 Valve

2шт.

8

1346133C3

TRUSS ROD

STUD, 12 x 243 mm, 86143 4 Valve

2шт.

9

1346059C2

SHIM

adjusting

1шт.

10

1346060C1

SHIM

adjusting

1шт.

11

REF

INSTRUCTION

VALVE control, 86143 Postion: 1, See Figure: 8-74

1шт.

12

REF

INSTRUCTION

VALVE control, 86143 Position: 2, 3, 4, See Figure: 8-82 - 8-98

1шт.

13

REF

INSTRUCTION

MANIFOLD, 86143 , See Figure: 8-72

1шт.

14

877-10810

SET SCREW,Hex Skt, M8 x 10mm, Cup Pt

1шт.

15

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

16

1346059C2

SHIM

1шт.
