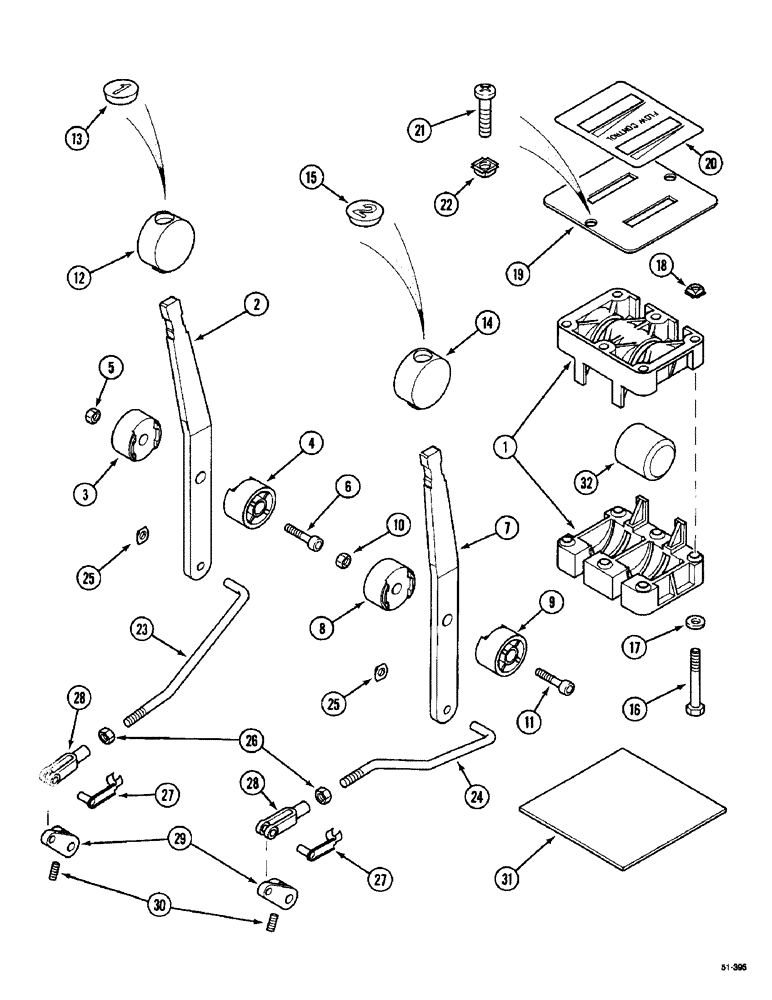

Запчасти Case IH 5150 (8-058) - INTERIOR REMOTE FLOW CONTROLS, VERSION WITH CAB - WITHOUT HITCH (08) - HYDRAULICS

1

T102996

BEARING HOUSING

HOUSING

1шт.

1990675C1

LEVER ASSY.

No. 1, 86191 Includes: 2-6

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE ASSY.

1шт.

3

1531277C1

ROLLER

1шт.

4

1531280C1

ROLLER

1шт.

5

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

6

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

1990676C1

LEVER ASSY.

No. 2, 86191 Includes: 7-11

1шт.

7

NSS

NOT SOLD SEPARAT

HANDLE ASSY.

1шт.

8

1531277C1

ROLLER

1шт.

9

1531280C1

ROLLER

1шт.

10

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

11

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

12

1974838C1

BUTTON

KNOB, No.1

1шт.

13

NSS

NOT SOLD SEPARAT

86191 Order: 1974838C1

1шт.

14

1974839C1

BUTTON

KNOB, No.2

1шт.

15

NSS

NOT SOLD SEPARAT

INSERT, 86191 Order: 1974839C1

1шт.

16

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

6шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

18

1999424C1

NUT

M6

6шт.

19

1987198C1

COVER

1шт.

20

1990673C1

DECAL

1шт.

21

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

1999423C1

NUT

M5

2шт.

23

1987190C1

ROD

No. 1

1шт.

24

1987189C1

ROD

No. 2

1шт.

25

1999651C1

CLIP,ELECTRICAL

2шт.

26

825-1405

NUT,M5, Cl 8

2шт.

27

1999650C1

CLEVIS PIN

5 mm

2шт.

28

713-115

ADJUSTABLE CLEVIS

5 x 20 mm

2шт.

29

1987191C1

LEVER

2шт.

30

877-6056

SET SCREW,M5 x 6mm

2шт.

31

112569A1

COVER

86191 Without Flow Control

1шт.

32

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE

1шт.
