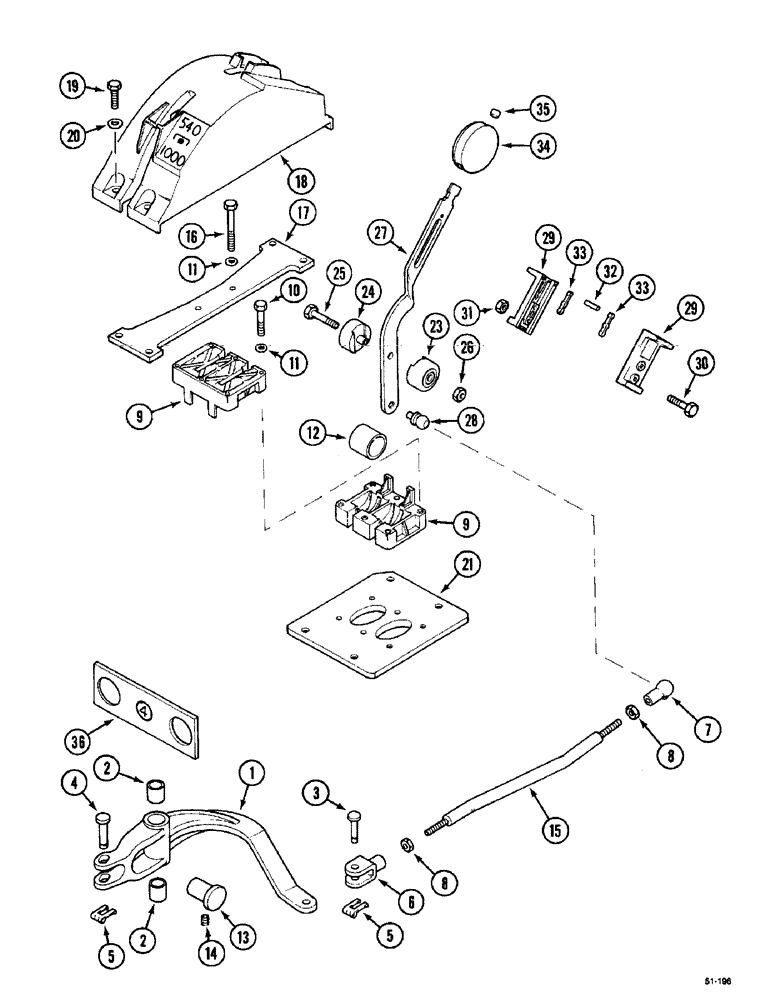

Запчасти Case IH 5150 (8-056) - CONTROLS - REMOTE CONTROL VALVE, 4TH BANK (08) - HYDRAULICS

1

1999664C1

CONTROL LEVER

86191 Includes: 2

1шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

2шт.

3

1531949C1

PIN,7.9mm OD x 24mm L

1шт.

4

1531333C1

PIN,7.9mm OD x 34mm L

1шт.

5

T102627

CLIP

2шт.

6

3399152R1

YOKE

1шт.

7

1531284C1

BALL SOCKET,M8 x 53mm L

CUP, BALL

1шт.

8

825-1408

NUT,M8, Cl 8

2шт.

9

T102996

BEARING HOUSING

HOUSING

2шт.

10

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

12

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE

1шт.

13

1999649C1

LEVER

1шт.

14

877-6056

SET SCREW,M5 x 6mm

1шт.

15

1531942C1

ROD

1шт.

16

614-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8, Full Thd

M6 x 55

2шт.

17

1531276C1

SUPPORT

1шт.

18

1531275C1

PROTECTIVE COVER

1шт.

18

1531244C1

COVER

86191 P.T.O.

1шт.

19

565-103

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

1531480C1

PLATE

1шт.

1531265C2

CONTROL LEVER

ARM ASSY., 86191 Includes: 23-28

1шт.

23

1531277C1

ROLLER

1шт.

24

1531280C1

ROLLER

1шт.

25

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

26

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

27

NSS

NOT SOLD SEPARAT

ARM, 86191 Order : 1531265C2

1шт.

28

3234708R1

BALL STUD

BALL PIN

1шт.

29

1531281C1

STOP LOCK

2шт.

30

905917R1

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4 x 12 mm

2шт.

31

824-1404

NUT,M4, Cl 5

2шт.

32

905919R1

DOWEL,M2 x 12

1шт.

33

1531289C2

SPRING

2шт.

34

1974841C1

BUTTON

KNOB, No. 4, 86191 Includes: 35

1шт.

35

NSS

NOT SOLD SEPARAT

INSERT

1шт.

36

1531518C2

SYMBOLS

SYMBOL PLATE, No. 4

1шт.
