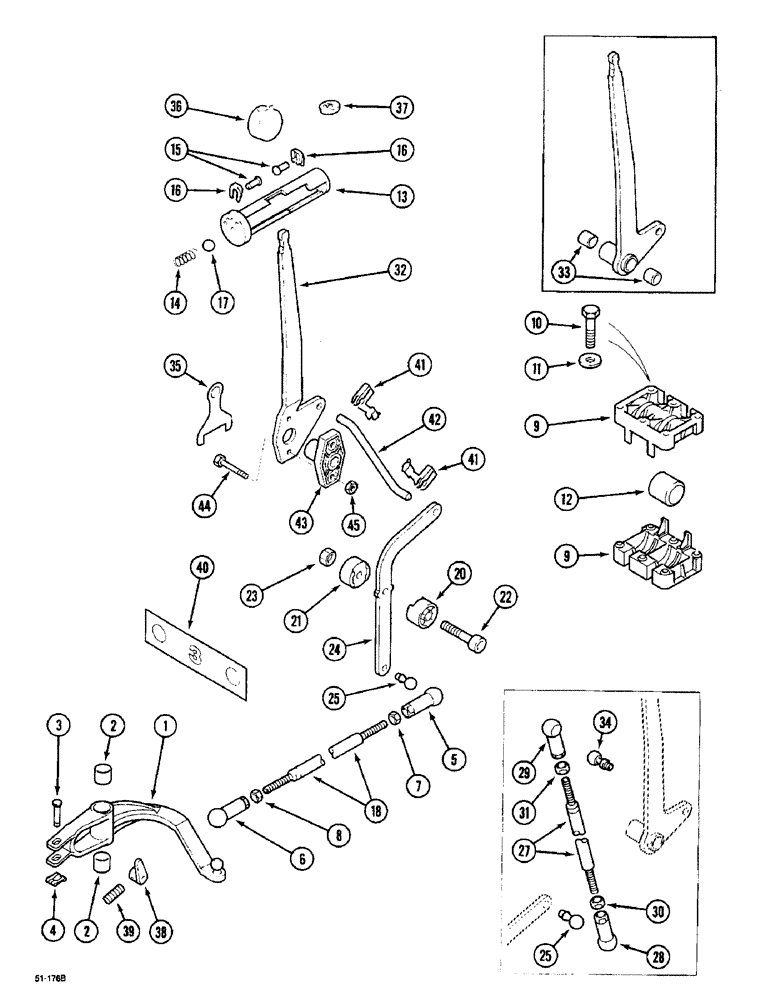

Запчасти Case IH 5150 (8-052) - CONTROLS - REMOTE CONTROL VALVE, 3RD BANK (08) - HYDRAULICS

1

1999662C1

CONTROL LEVER

86191 Includes: 2

1шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

2шт.

3

1531333C1

PIN,7.9mm OD x 34mm L

1шт.

4

T102627

CLIP

1шт.

5a

1531284C1

BALL SOCKET,M8 x 53mm L

CUP, BALL, 86193, 5120, 5130, 5140, Start Serial: JJF1021532

1шт.

6a

1531285C1

BALL SOCKET,M8 x 53mm L

CUP, BALL, 86193, 5120, 5130, 5140 LH Thread, Start Serial: JJF1021532

1шт.

7a

825-1408

NUT,M8, Cl 8

86193, 5120, 5130, 5140, Start Serial: JJF1021532

1шт.

8a

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

86193, 5120, 5130, 5140, Start Serial: JJF1021532

1шт.

9

T102996

BEARING HOUSING

HOUSING

2шт.

10

514-505

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

M6 x 50

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE

1шт.

13

1530971C2

LOCK

1шт.

14

1531484C1

SPRING

1шт.

15

T103011

PIN,6mm OD x 17mm L

2шт.

16

3221347R2

CIRCLIP

2шт.

17

31379R1

BALL,6mm Dia, Stainless

6 mm

1шт.

18

T103466

ROD

86193, 5120, 5130, 5140

1шт.

a

1531271C2

ARM ASSY.

86191 Includes: 20-25, Start Serial: JJF1021532

1шт.

b

1534875C1

ARM ASSY.

86191 Includes: 20-24, Serial Range: -JJF1021533

1шт.

20

1531277C1

ROLLER

1шт.

21

1531280C1

ROLLER

1шт.

22

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

24

NSS

NOT SOLD SEPARAT

ARM ASSY., 86191 Order: 1531271C2 - 1534875C1

1шт.

25a

3234708R1

BALL STUD

BALL PIN 86193 LH Thread, Start Serial: JJF1021532

2шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

1шт.

a

1531274C1

ROD

ASSY., 86193, 5120, 5130, 5140, Includes: 27-31, Start Serial: JJF1021532

1шт.

27

T103466

ROD

1шт.

28

1531284C1

BALL SOCKET,M8 x 53mm L

CUP, BALL

1шт.

29

1531285C1

BALL SOCKET,M8 x 53mm L

CUP, BALL

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

1шт.

32a

1531260C3

CONTROL LEVER

ASSY., No.3, 86191 With Cab Or Platform Without ROPS, Start Serial: JJF1021532

1шт.

32b

108716A1

CONTROL LEVER

ASSY., No.3, 86191 With Cab Or Platform Without ROPS, Serial Range: -JJF1021533

1шт.

32a

1531347C3

CONTROL LEVER

ASSY., No.3, 86191 With Platform With ROPS Includes : 33, 34, Start Serial: JJF1021532

1шт.

32b

108717A1

CONTROL LEVER

ASSY., No.3, 86191 With Platform With ROPS, Serial Range: -JJF1021533

1шт.

33

1533534C1

PLASTIC RING

BUSHING, 86191, Serial Range: -JJF1029999

2шт.

34a

3234708R1

BALL STUD

BALL PIN, Start Serial: JJF1021532

1шт.

35

T102902

SHEET

SELECTOR

1шт.

36

1974840C1

BUTTON

KNOB, No.3, 86191 Includes: 37

1шт.

37

NSS

NOT SOLD SEPARAT

INSERT

1шт.

38

1999649C1

LEVER

86191 See Figure: 8-74, 8-82, 8-90

1шт.

39

877-6056

SET SCREW,M5 x 6mm

1шт.

40

1531517C2

SYMBOLS

SYMBOL PLATE, No.3

1шт.

41b

1534844C1

CLIP

, Serial Range: -JJF1021533

2шт.

42b

1534848C1

STEM

ROD, 86193, Start Serial: JJF1030000

1шт.

43

108709A1

HUB

1шт.

44

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

45

832-10406

NUT,M6 x 1, Cl 8

2шт.
