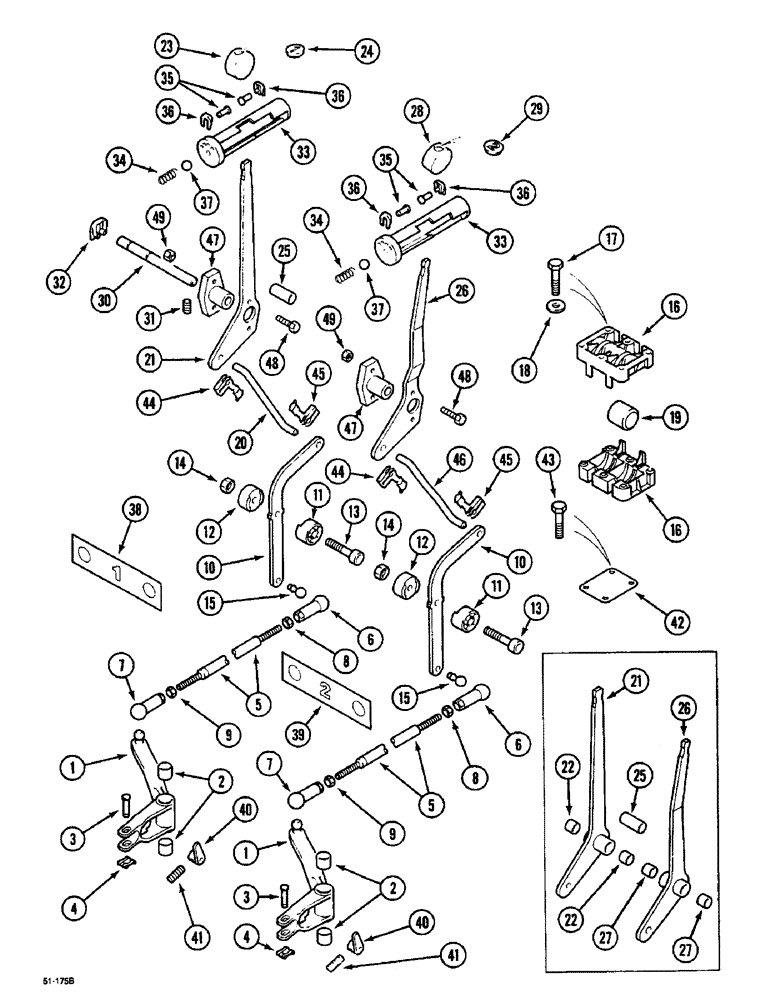

Запчасти Case IH 5150 (8-048) - CONTROLS - REMOTE CONTROL VALVE, 1ST & 2ND BANK (08) - HYDRAULICS

1

1999660C1

CONTROL LEVER

86191 Includes: 2

2шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

2шт.

3

1531333C1

PIN,7.9mm OD x 34mm L

2шт.

4

T102627

CLIP

2шт.

5

1531485C1

ROD

2шт.

6a

1531284C1

BALL SOCKET,M8 x 53mm L

CUP, BALL, 86193, 5120, 5130, 5140, Start Serial: JJF1021532

2шт.

7a

1531285C1

BALL SOCKET,M8 x 53mm L

CUP, BALL, 86193, 5120, 5130, 5140 LH Thread, Start Serial: JJF1021532

2шт.

8a

825-1408

NUT,M8, Cl 8

86193, 5120, 5130, 5140, Start Serial: JJF1021532

2шт.

9a

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

86193, 5120, 5130, 5140, Start Serial: JJF1021532

2шт.

10a

1531288C2

ARM

ASSY., 86191, 5120, 5130, 5140, Includes: 11-15, Start Serial: JJF1021532

2шт.

10b

1534866C1

ARM ASSY.

86191 Includes: 11-14, Serial Range: -JJF1021533

2шт.

11

1531277C1

ROLLER

1шт.

12

1531280C1

ROLLER

1шт.

13

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

14

934306R1

LOCK NUT,M5 x .8, Thin

1шт.

15

3234708R1

BALL STUD

BALL PIN 86191, 5120, 5130, 5140

2шт.

16

T102996

BEARING HOUSING

HOUSING

2шт.

17

514-505

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

M6 x 50

6шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

19

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE, 86191 1 Valve

1шт.

20a

1531283C1

ROD

86191, 5120, 5130, 5140, Start Serial: JJF1021532

2шт.

20b

1534847C1

THREADED ROD

, Serial Range: -JJF1021533

1шт.

21a

1531249C3

LEVER ASSY.

No.1, 86191, 5120, 5130, 5140, Includes: 22, Start Serial: JJF1021532

1шт.

21b

108714A1

CONTROL LEVER

ASSY., No.1, Serial Range: -JJF1021533

1шт.

22

1533534C1

PLASTIC RING

BUSHING, 86191, Serial Range: -JJF1029999

2шт.

23

1974838C1

BUTTON

KNOB, No.1, 86191 Includes: 24

1шт.

24

NSS

NOT SOLD SEPARAT

INSERT

1шт.

25

1531334C1

BUSHING

86191 1 Valve

1шт.

26a

1531252C3

CONTROL LEVER

ASSY., No.2, 86191, 5120, 5130, 5140, Includes: 27 1 Valve, Start Serial: JJF1021532

1шт.

26b

108715A1

CONTROL LEVER

ASSY., No.2, 86191 1 Valve, Serial Range: -JJF1021533

1шт.

27

1533534C1

PLASTIC RING

BUSHING, 86191, Serial Range: -JJF1029999

2шт.

28

1974839C1

BUTTON

KNOB, No.2, 86191 Includes: 29

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

30

T103006

ROD

1шт.

31

577-2068

SET SCREW,Hex Soc, M6 x 8, Cone Pt

6 x 8 mm

1шт.

32

T101807

CLIP

1шт.

33

1530971C2

LOCK

2шт.

34

1531484C1

SPRING

2шт.

35

T103011

PIN,6mm OD x 17mm L

4шт.

36

3221347R2

CIRCLIP

4шт.

37

31379R1

BALL,6mm Dia, Stainless

6 mm

2шт.

38

1531515C2

SYMBOLS

SYMBOL PLATE, No.1

1шт.

39

1531516C2

SYMBOLS

SYMBOL PLATE, No.2

1шт.

40

1999649C1

LEVER

86191 See Figure: 8-74, 8-82, 8-90

2шт.

41

877-6056

SET SCREW,M5 x 6mm

2шт.

42

1531798C1

LARGE PLATE

PLATE, LARGE COVER, 86191 Without 3rd Bank

1шт.

43

514-503

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

M6 x 12, 86191 Without 3rd Bank

4шт.

44b

1534844C1

CLIP

, Serial Range: -JJF1021533

2шт.

45b

1534845C1

CLIP

, Serial Range: -JJF1021533

2шт.

46b

1534846C1

THREADED ROD

86191 (JJF1021533 - 1030000), Serial Range: -JJF1021533

1шт.

47

108709A1

HUB

2шт.

48

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

49

832-10406

NUT,M6 x 1, Cl 8

4шт.
