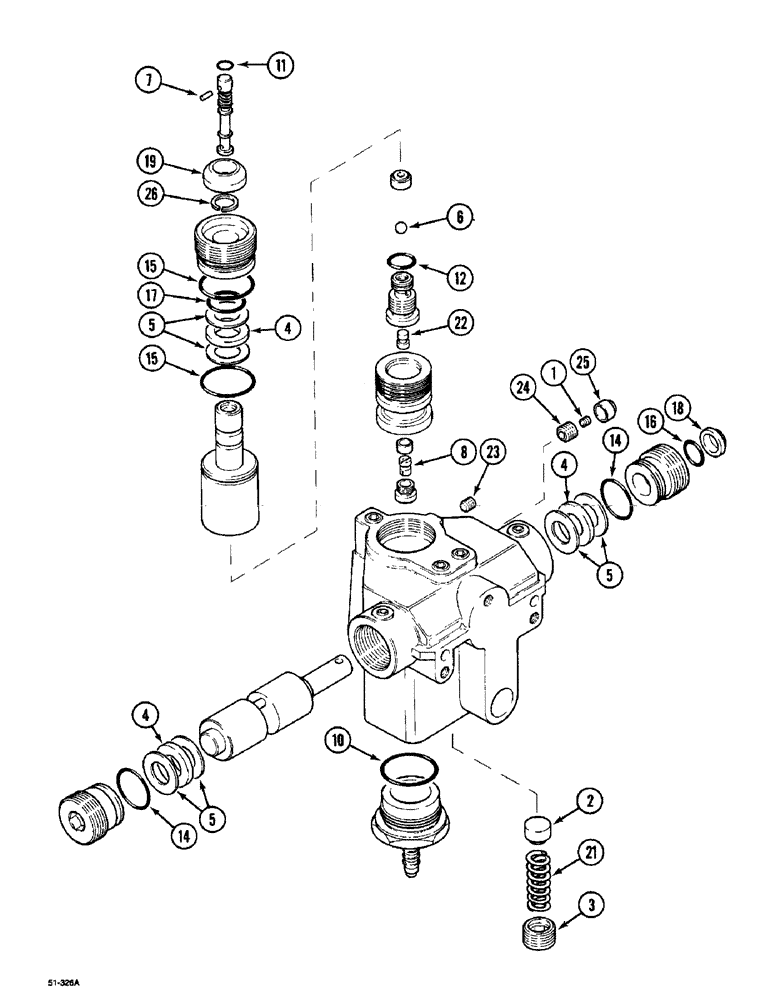

Запчасти Case IH 5150 (8-046) - INPUT CONTROL VALVE (08) - HYDRAULICS

1994557C4

VALVE

control, 86143 See Figure: 9G-100

1шт.

129500A1

SPARE PART SET

86143 Consists Of: 1-26, See Note A

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW

1шт.

2

NSS

NOT SOLD SEPARAT

COIL ASSY.

1шт.

3

NSS

NOT SOLD SEPARAT

ADJUSTER

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING thrust

3шт.

5

NSS

NOT SOLD SEPARAT

WASHER

6шт.

6

NSS

NOT SOLD SEPARAT

BALL

1шт.

7

NSS

NOT SOLD SEPARAT

PIN cross

1шт.

8

NSS

NOT SOLD SEPARAT

ORIFICE

2шт.

10

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

11

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

1шт.

12

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

14

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

15

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

16

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW

1шт.

25

NSS

NOT SOLD SEPARAT

COVER SHEET

1шт.

26

NSS

NOT SOLD SEPARAT

RING retaining

1шт.
