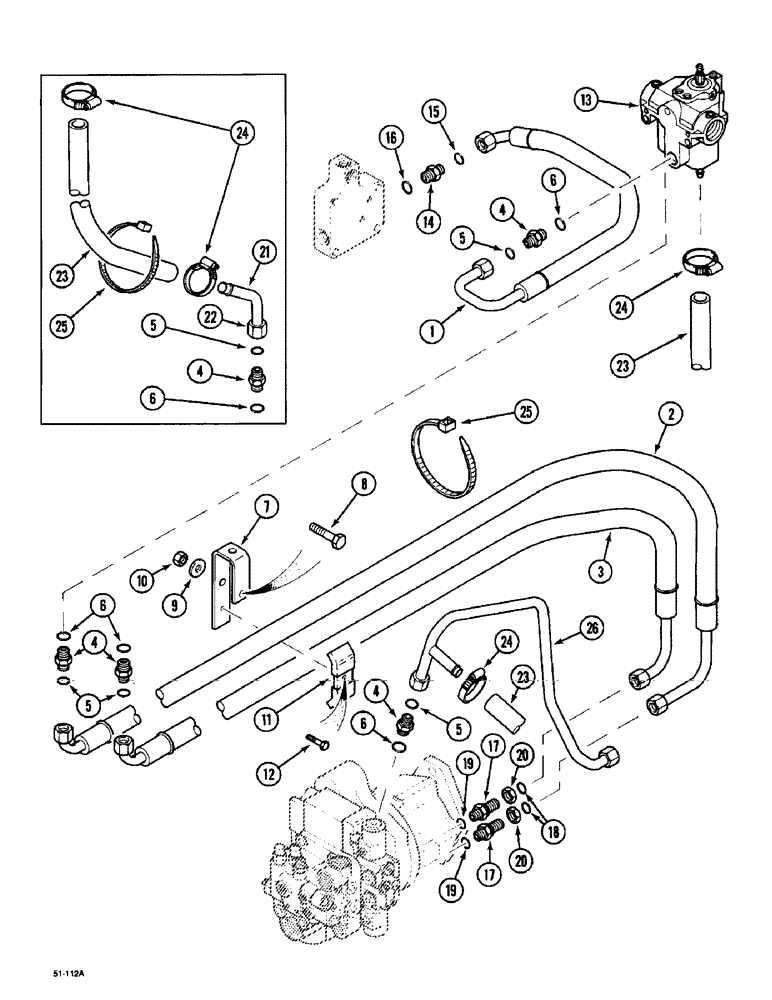

Запчасти Case IH 5150 (8-044) - INPUT CONTROL HYDRAULIC PIPING (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1533922C1
HOSE ASSY.
435 mm (17-1/8 in), 86133 (JJF1019430 - ), Start Serial: JJF1019430
1шт.
1
1531715C1
HOSE
P1, 86133, 5120, 5130, 5140, Serial Range: -JJF1019429
1шт.
2a
1531716C1
HOSE
730 mm (28-3/4 in), 86133, 5120, 5130, 5140, Start Serial: JJF1011269
1шт.
2b
1533617C1
HOSE
730 mm (28-3/4 in), Serial Range: -JJF1011270
1шт.
3a
1531717C1
HOSE
635 mm (25 in), 86133, 5120, 5130, 5140, Start Serial: JJF1011269
1шт.
3b
1533618C1
HOSE
670 mm (26-3/8 in), Serial Range: -JJF1011270
1шт.
4a
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
86133, 5120, 5130, 5140, Incl 5, 6, Start Serial: JJF1011269
3шт.
4b
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
86133, Incl 5, 6, Serial Range: -JJF1011270
4шт.
5
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
7
1531745C2
BRACKET
1шт.
8
814-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
1шт.
9
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
10
825-1408
NUT,M8, Cl 8
1шт.
11
T103147
FIXING BRACKET
CLAMP
2шт.
12
814-6035
BOLT,Hex, M6 x 1 x 35mm, Cl 8.8
1шт.
13
1994557C4
VALVE
control
1шт.
14
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
11/16 fc x 3/4 Or, 86133 Includes: 15, 16
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
17
1533046C2
FITTING
9/16 x 11/16 in, 86133 Includes: 18, 19, 20
2шт.
18
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
20
201-909
BHD LOCK NUT,Blkhd, 11/16"-16
1шт.
21b
1533384C2
PIPE
return, Serial Range: -JJF1011270
1шт.
22b
203-901
TUBE NUT,17 mm Length
3/8, Serial Range: -JJF1011270
1шт.
23b
1533447C1
HOSE
, Serial Range: -JJF1011270
1шт.
24b
905893R1
CLAMP,M12-23, Worm
, Serial Range: -JJF1011270
2шт.
25b
3402979R2
BAND
STRAP cable, 350 mm, Serial Range: -JJF1011270
2шт.
26
1530726C1
PIPE
86133 Front P.T.O. In Place Of: 21B
1шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 30
