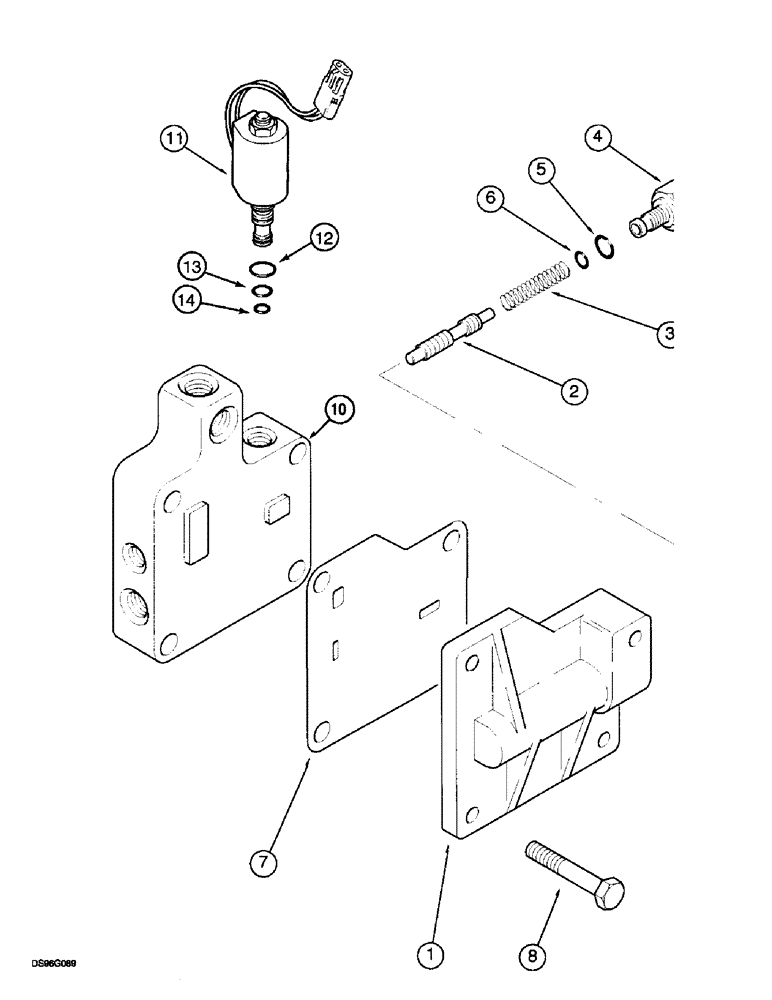

Запчасти Case IH 5150 (8-042) - M.F.D. VALVE, 40 KM/H (JJF1023566 - ), PRESSURE REDUCING (08) - HYDRAULICS

1994601C2

VALVE

pressure, 62451 Consists Of: 1-4

1шт.

1

1994600C1

COVER

BODY

1шт.

2

1343631C1

SPOOL

1шт.

3

126060A1

SPRING

1шт.

4

1343630C1

SOLENOID SWITCH

SWITCH, 62451

1шт.

5

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

139886A1

GASKET

62451 Valve To Manifold

1шт.

8

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

3шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

10 x 90 mm

1шт.

1986550C1

VALVE

manifold, 62451 Consists Of: 10-14

1шт.

10

1986549C1

VALVE BODY

1шт.

11

1971474C3

SOLENOID

46039 Includes: 12, 13, 14

1шт.

12

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

13

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

14

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.
