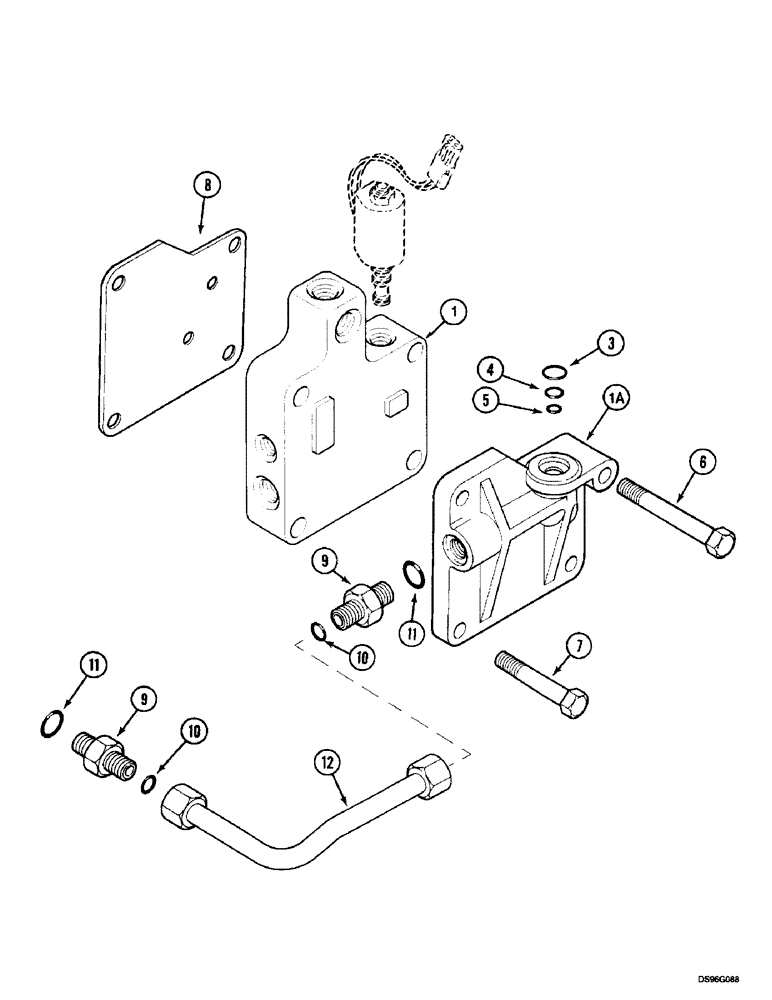

Запчасти Case IH 5150 (8-040) - M.F.D. VALVE AND PIPING, 30 KM/H (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VAVLE control, 62451, Consists Of: 1 - 5, Start Serial: JJF1023388

1шт.

NSS

NOT SOLD SEPARAT

VAVLE control, 62451, 5120, 5130, 5140, Consists Of: 1A - 5, Serial Range: -JJF1023387

1шт.

1

1986523C1

VALVE BODY

62451, Start Serial: JJF1023388

1шт.

1a

1976830C1

BODY

62451, 5120, 5130, 5140, Serial Range: -JJF1023387

1шт.

2

1971474C3

SOLENOID

62451 Includes: 3, 4, 5

1шт.

3

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

10 x 90 mm

1шт.

7

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

3шт.

8

1976851C1

MANIFOLD GASKET

1шт.

9

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

62451, Incl 10, 11

2шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

T102017

PIPE

62315, 5120, 5130, 5140, Serial Range: -JJF1023387

1шт.

12

1533883C1

PIPE

62315, Start Serial: JJF1023388

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
