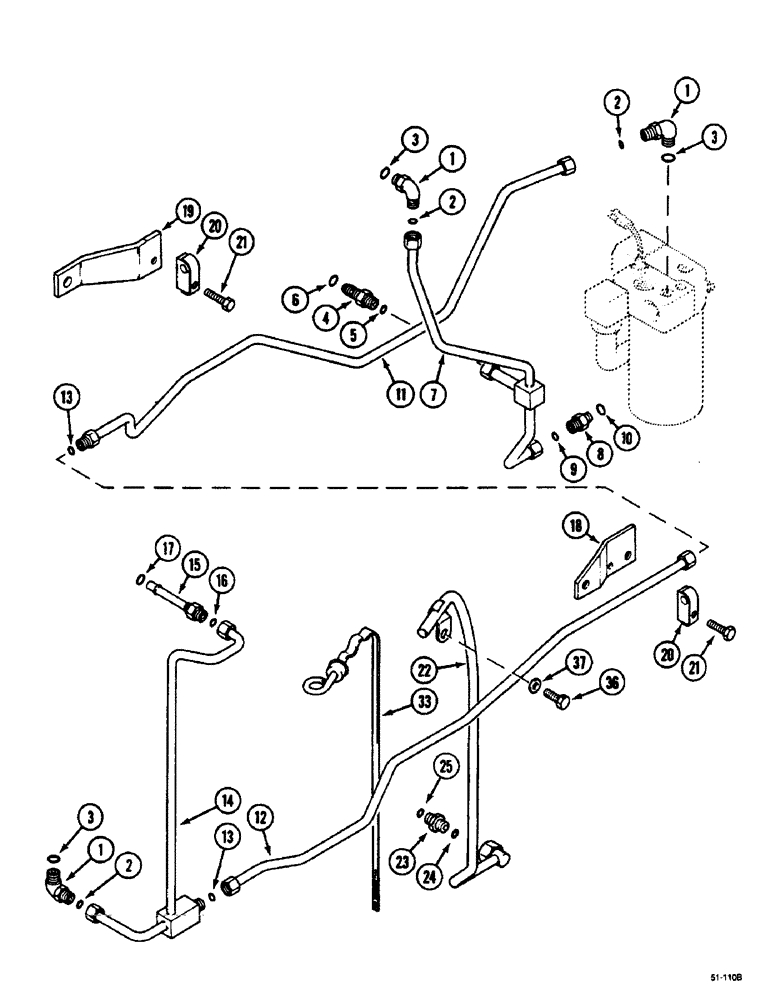

Запчасти Case IH 5150 (8-038) - EXTERNAL LUBRICATION CIRCUIT AND DIPSTICK (08) - HYDRAULICS

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

66020 Includes: 2, 3

3шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

A188713

UNION

86137 Includes: 5

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

1531947C2

HYD TUBE

1шт.

8

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86137, Includes 9, 10

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

1531613C1

HYD TUBE

86137 Front

1шт.

12

1533019C1

HYD TUBE,10 mm OD, 737, 137 mm Length

86137 Middle

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

1531620C2

PIPE ASSY.

1шт.

15

A188287

ADAPTER

66030 Includes: 16, 17

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

1979029C1

BRACKET

1шт.

19

1531679C1

SUPPORT

1шт.

20

T101169

CLAMP

2шт.

21

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

22

1533362C2

HYD TUBE

1шт.

23

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86137, Includes 24, 25

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

1533361C1

DIPSTICK

86111, Serial Range: -JJF1015244

1шт.

33

119271A1

DIPSTICK

86111, Start Serial: JJF1015245

1шт.

35

360713C1

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

36

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

37

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
