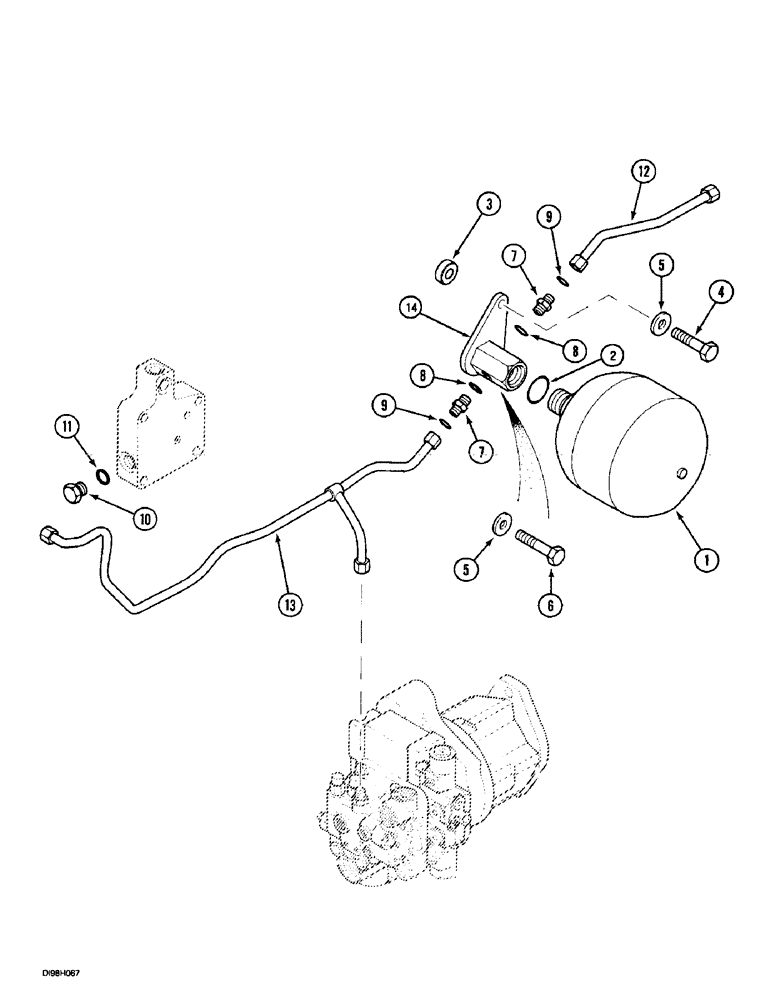

Запчасти Case IH 5150 (8-036) - ACCUMULATOR AND PIPING, (JJF1023905 - ), VERSION WITH POWERSHIFT (08) - HYDRAULICS

1

1530700C1

ACCUMULATOR

62151 Includes: 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

905783R1

SHIM,M10 ID x 16 OD x 1 Thk

10 mm, 62153 With Creep Speed

1шт.

3

1530647C1

SPACER

62153 Without Creep Speed

2шт.

4

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

M10 x 50; 10.9, 62153 With Creep Speed

1шт.

4

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

M10 x 50; 10.9, 62153 Without Creep Speed

2шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

7

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

62153, Includes 8, 9

2шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

1530725C1

PIPE

ASSY., 62153 Trans No.: - JKA50989

1шт.

12

1530645C1

PIPE

ASSY., 62153 Trans No.: JKA50990 -

1шт.

13

1530646C1

PIPE

1шт.

14

1530643C2

FITTING

ASSY.

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
