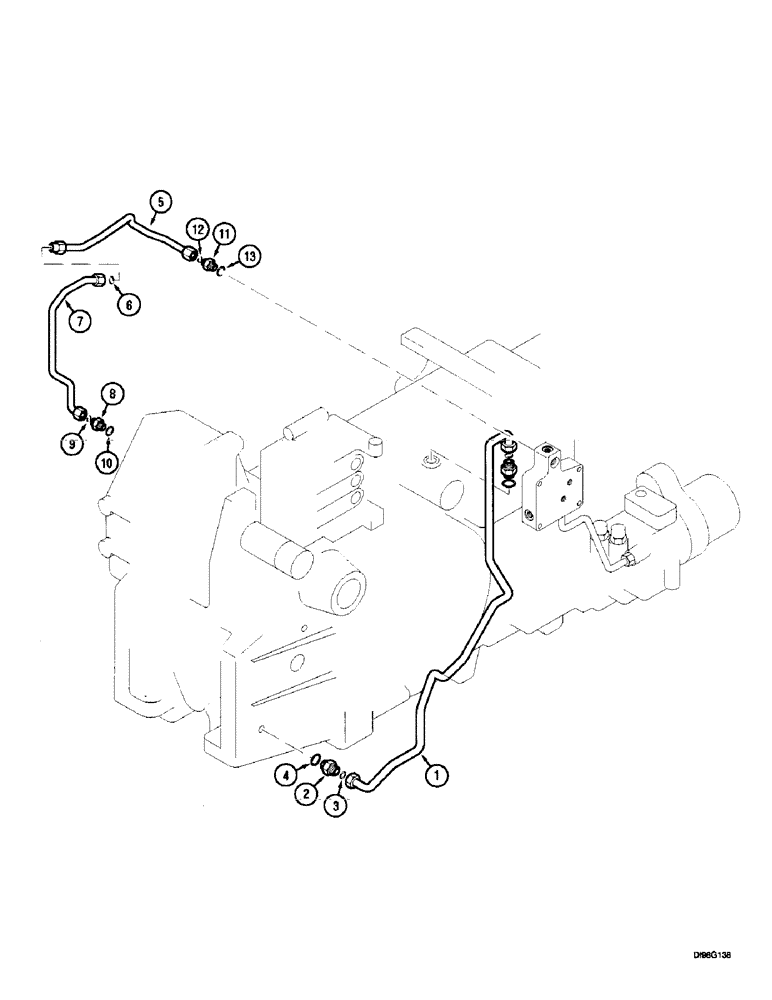

Запчасти Case IH 5150 (8-034) - P.T.O. HYDRAULICS (08) - HYDRAULICS

1

142255A1

PIPE

66020 P.T.O. Clutch, Start Serial: JJF1030000

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

66020, Incl 3, 4

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

1533765C1

PIPE

P1, 66020, Serial Range: -JJF1029999

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

1534591C1

PIPE

P1, 66020 Rear, Serial Range: -JJF1029999

1шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

66020, Incl 9, 10

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

201-910

PLUG,9/16"-18 ORFS

66020 Not Illustrated, Start Serial: JJF1030000

1шт.

11

1543143C1

VALVE, CHECK

66020 With Orifice Includes: 33, 34, Serial Range: JJF1017701-JJF102999

1шт.

11

1533757C1

FITTING

VALVE check, 40 km/h, 66020, 5120, 5130, 5140, Serial Range: -JJF1017700

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
