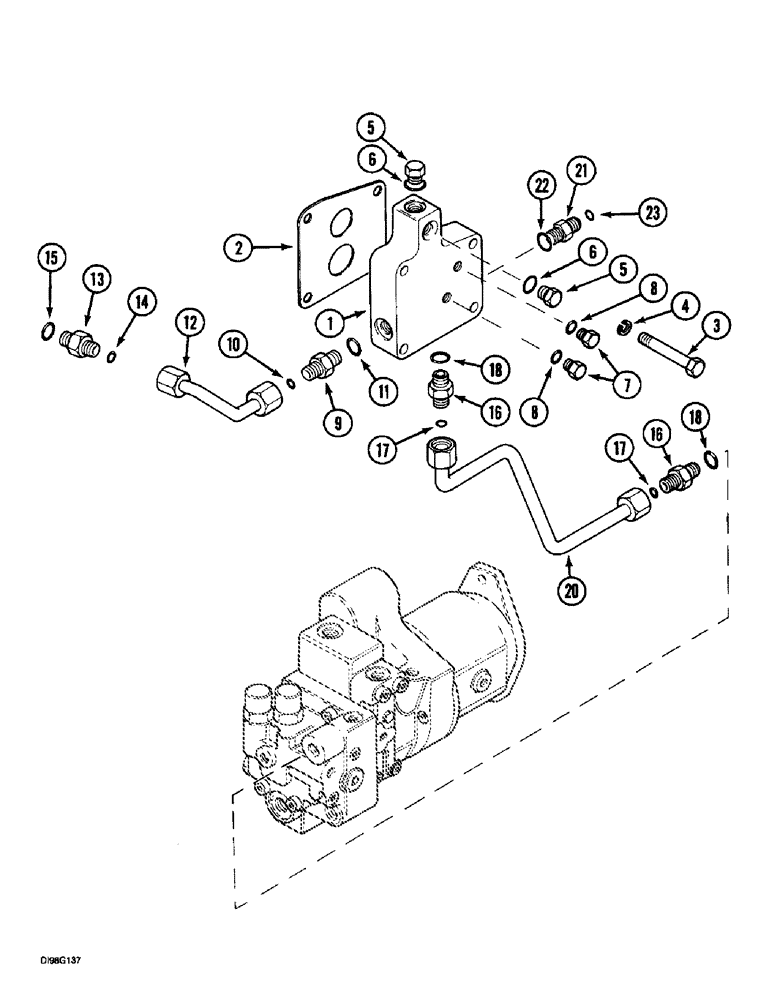

Запчасти Case IH 5150 (8-030) - HYDRAULIC MANIFOLD, 30 KM/H (08) - HYDRAULICS

1

1986548C1

MANIFOLD

86133 2WD, Start Serial: JJF1023388

1шт.

1

1976831C1

MANIFOLD

86133 2WD, Serial Range: -JJF1023387

1шт.

2

139886A1

GASKET

86133, Start Serial: JJF1023388

1шт.

2

1976852C1

MANIFOLD GASKET

86133, Serial Range: -JJF1023387

1шт.

3

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

9625178

PLUG,9/16" - 18 ORB

86133, Incl. 6

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

86133 Includes 8

2шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

1978398C2

FITTING

86133 With Screen, 5120, 5130, 5140, Includes: 10, 11, Serial Range: -JJF1008741

1шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

86133 Incl Ref 11, Start Serial: JJF1008742

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

1533882C1

PIPE

86133, Start Serial: JJF1023388

1шт.

12

T101053

PIPE

86133, 5120, 5130, 5140, Serial Range: -JJF1023387

1шт.

13

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

86133 Includes 14, 15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86133, Includes 17, 18

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

T102930

TUBE

86133, 5120, 5130, 5140 Synchromesh

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

11/16 fc x 3/4 Or, 86133 Includes: 27, 28

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
