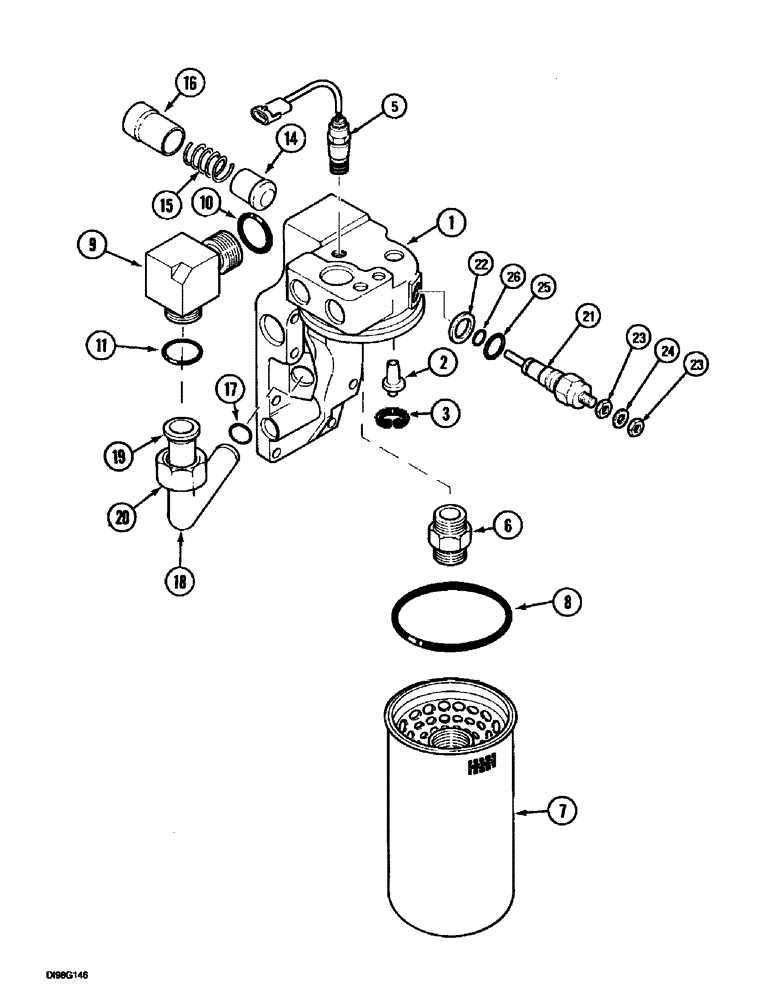

Запчасти Case IH 5150 (8-028) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

1980485C2

FILTER ASSY

80001 Consists Of: 1-16

1шт.

1

1980429C3

BODY

manifold

1шт.

2

1957807C1

VALVE, CHECK

by-pass

1шт.

3

A177482

SNAP RING

retaining

1шт.

5

258425A1

SWITCH

1шт.

6

A176321

CONNECTOR, ELEC

CONNECTOR

1шт.

7

1976934C5

HYDRAULIC OIL FILTER

80001 Includes: 8

1шт.

8

123010C3

GASKET,119.02mm ID x 128mm OD x 4.9mm Thk

1шт.

9

1340959C1

ELBOW

86113 Includes: 10, 11

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

14

1340805C1

PISTON

1шт.

15

1340953C1

SPRING

1шт.

16

1340806C1

CASE

BODY

1шт.

17

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

18

1980486C1

HYD TUBE,32 mm OD

ASSY., 86113 Includes: 19, 20

1шт.

19

203-934

SLEEVE,ORFS, M32 x 30 Tube, Reducer

SLEEVE

1шт.

20

203-906

TUBE NUT,1 11/16"-12 ORFS

1-1/4 in

1шт.

N13268

PRESSURE SWITCH

42015 Consists Of: 21-26

1шт.

21

NSS

NOT SOLD SEPARAT

BODY

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER

1шт.

23

129-667

NUT,#10-32, LH

2шт.

24

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

26

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
