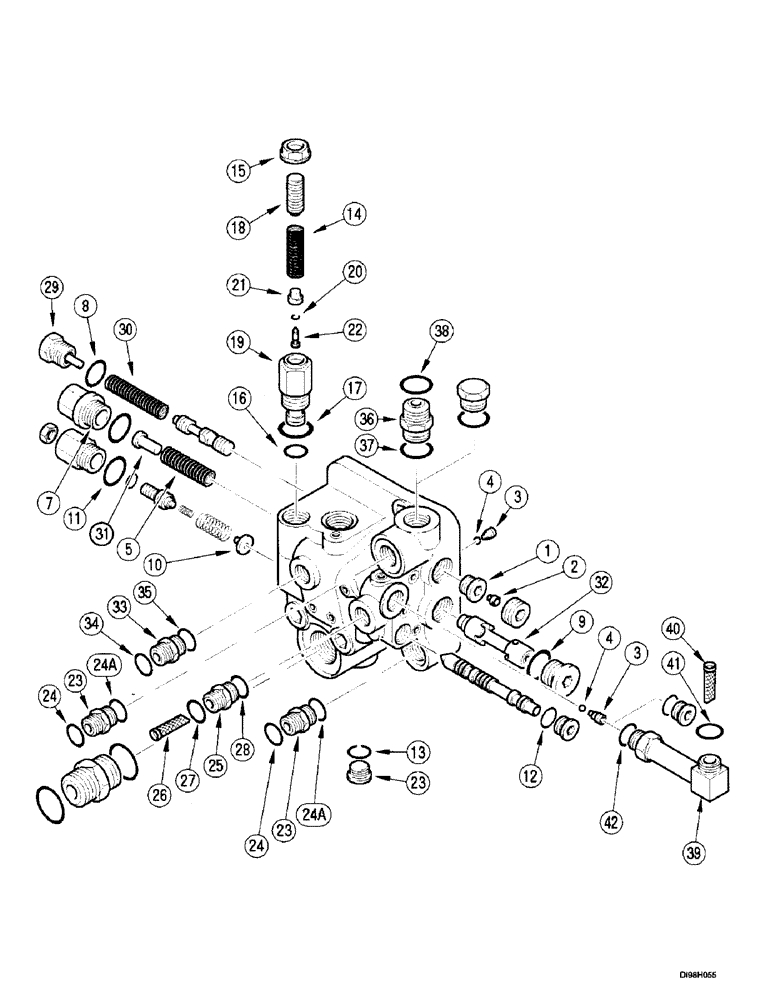

Запчасти Case IH 5150 (8-022) - COMPENSATOR VALVE (08) - HYDRAULICS

119625A2

VALVE

control, 86143, 5120, 5130, 5140, Consists Of: 1 - 20,24 - 30, Serial Range: -JJF1029483

1шт.

119625A2

VALVE

control, 86143, 5150, Consists Of: 1-20, 24-30, Serial Range: -JJF1024325

1шт.

187561A1

VALVE

control, 86143, 5120, 5130, 5140, Consists Of: 1-7, 9-20, 24-28, Start Serial: JJF1029484

1шт.

187561A1

VALVE

control, 86143, 5150, Consists Of: 1-7, 9-20, 24-28, Start Serial: JJF1024326

1шт.

119656A1

KIT

repair, 86143 Consists Of: 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT

2шт.

4

NSS

NOT SOLD SEPARAT

BALL

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER

1шт.

11

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

12

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

13

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

3шт.

1346008C1

PRESSURE LIMITER

VALVE, 86143 Consists Of: 14-23

2шт.

1986773C1

SEAL KIT

86143 Consists Of: 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

NUT

1шт.

16

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

INSERT

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME

1шт.

20

NSS

NOT SOLD SEPARAT

RING

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

23

9625178

PLUG,9/16" - 18 ORB

86143, Incl. 13, Serial Range: -JJF1019580

2шт.

23

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

86143, Start Serial: JJF1019581

2шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9625178

PLUG,9/16" - 18 ORB

86143, Incl. 13, Not Illustrated, Start Serial: JJF1019581

1шт.

1534787C1

FITTING

86143, Consists Of: 25-28, Serial Range: -JJF1019580

1шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

26

1533329C1

FILTER SCREEN

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

119626A1

GOVERNOR

KIT,17 bars, 86143, 5120, 5130, 5140, Consists Of: 8, 29, 30, Serial Range: -JJF1029483

1шт.

119626A1

GOVERNOR

KIT,17 bars, 86143, 5150, Consists Of: 8, 29, 30, Serial Range: -JJF1024325

1шт.

119654A1

GOVERNOR

KIT, 20 bars, 86143 Consists Of: 8, 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING

1шт.

31

NSS

NOT SOLD SEPARAT

STOP

1шт.

32

1533768C1

SPOOL

86143 With Orifice Trans No.: - JKA75003

1шт.

32

193370A1

SPOOL

86143 With Orifice Trans No.: JKA75004 -

1шт.

32

226442A1

SPOOL

86143 Without Orifice Trans No.: JKA75004 - Trailer Brake

1шт.

33

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

86143, 5120, 5130, 5140, Incl 34A, 35, Serial Range: -JJF1023975

1шт.

33

1975210C1

FITTING

VALVE check, 30 km/h, 86143, 5120, 5130, 5140, Start Serial: JJF1023976

1шт.

33

1533757C1

FITTING

VALVE check, 40 km/h, 86143 Includes: 34B, 35

1шт.

34a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

1980118C1

VALVE

check, 86143 Includes: 37, 38

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

1534508C1

FITTING

ELBOW ASSY., 86143 Trans No. : - JKA58094 See Figure: 8-66, Consists Of: 39-42

1шт.

39

NSS

NOT SOLD SEPARAT

ELBOW

1шт.

40

1533329C1

FILTER SCREEN

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
