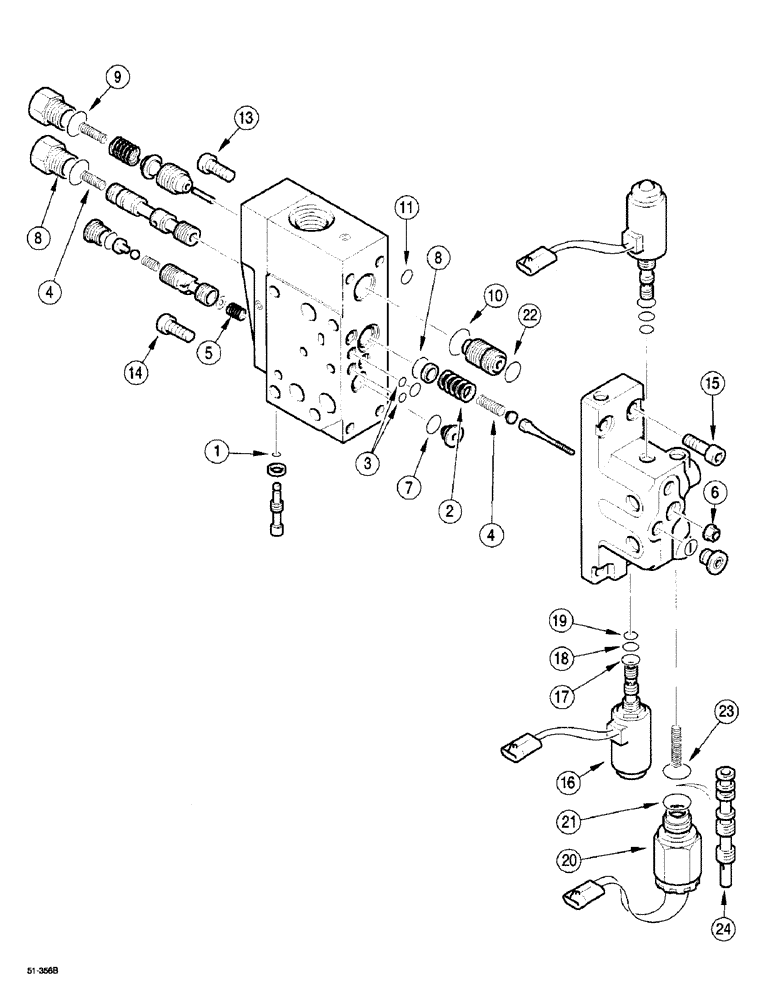

Запчасти Case IH 5150 (8-020) - CONTROL VALVE, WITH 3 SOLENOIDS (08) - HYDRAULICS

1346353C1

SEAL KIT

62317 Consists Of: 3, 7, 8, 17, 18, 19, 21-24

1шт.

1343700C5

VALVE

control, 62317 Consists Of: 1-24

1шт.

1346007C3

SEAL KIT

62317, Consists Of: 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING

5шт.

3

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

NUT

2шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

8

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

9

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

5шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW

4шт.

14

NSS

NOT SOLD SEPARAT

SCREW

2шт.

15

NSS

NOT SOLD SEPARAT

SCREW

4шт.

16

1971474C3

SOLENOID

46039 Includes: 17, 18, 19

2шт.

1987587C1

DIODE

1шт.

17

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

18

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

20

221441A1

SOLENOID

46039 Includes: 21

1шт.

246526A1

CONNECTOR, ELEC

CONNECTOR DIODE

1шт.

21

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

22

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

0-RING

1шт.

24

1530783C1

SPOOL

1шт.
