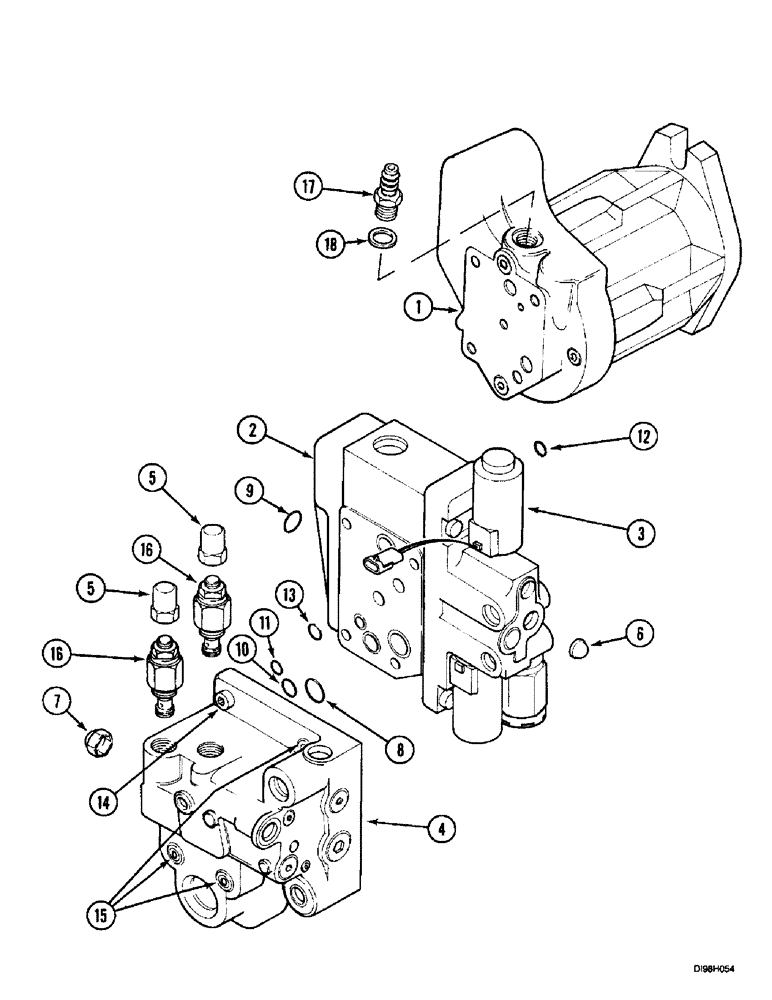

Запчасти Case IH 5150 (8-016) - HYDRAULIC PUMP AND MULTI-CONTROL VALVE (08) - HYDRAULICS

119411A3

PACKAGE, REPAIR

86121 Consists Of: 1-4

1шт.

1

REF

INSTRUCTION

PUMP ASSY., 86121 See Figure: 8-18

1шт.

2

REF

INSTRUCTION

VALVE ASSY., Control, 86121 See Figure: 8-20 Draft Control

1шт.

3

REF

INSTRUCTION

SOLENOID, 86121 See Figure: 8-20

3шт.

4

REF

INSTRUCTION

VALVE ASSY., Control, 86143 Compensator, See Figure: 8-22

1шт.

1346354C1

KIT

86143 Includes: 5, 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

CAP

2шт.

6

NSS

NOT SOLD SEPARAT

CAP

1шт.

7

NSS

NOT SOLD SEPARAT

CAP

1шт.

1542695C1

SEAL KIT

86143 Includes: 8-11

1шт.

8

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

10

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

4шт.

11

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

3шт.

12

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

3шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

14

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

86143, 5120, 5130, 5140, Trans No.: - JKA55605

2шт.

14

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

86143 Trans No.: JKA55606 -

1шт.

15

864-10110

HEX SOC SCREW,M10 x 110mm, Cl 8.8

M10 x 110, 86143, 5120, 5130, 5140, Trans No : - JKA55605

2шт.

15

864-10110

HEX SOC SCREW,M10 x 110mm, Cl 8.8

M10 x 110, 86143 Trans No.: JKA55606 -

3шт.

16

REF

INSTRUCTION

VALVE ASSY., Pressure, 86143, See Figure: 8-22

1шт.

17

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

3/8 stem x 9/16 Or

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
