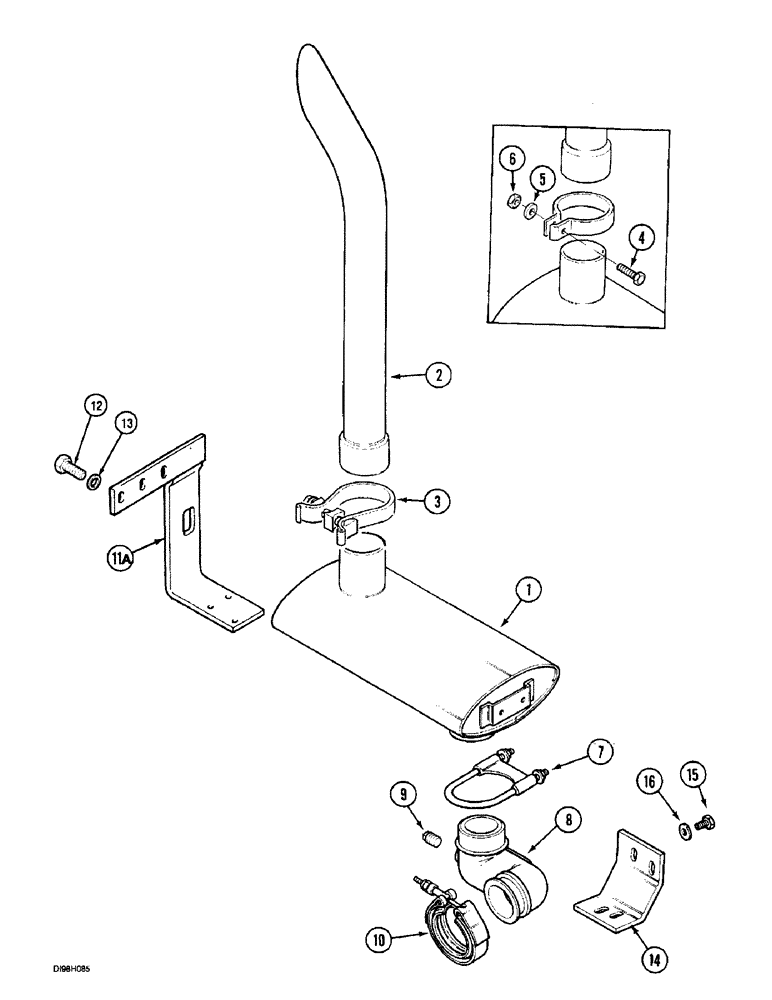

Запчасти Case IH 5150 (2-018) - VERTICAL EXHAUST, (5140/5150) (02) - ENGINE

1

A184475

MUFFLER

20331 Horizontal

1шт.

2

132223A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST extension, 20331 Chrome ( - Maxxum Pro)

1шт.

2

242285A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST extension, 20331 Chrome (Maxxum Pro - )

1шт.

2

A189049

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST extension, 20331 Black ( - Maxxum Pro)

1шт.

2

242284A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST extension, 20331 Black (Maxxum Pro - )

1шт.

3

132222A1

CLAMP

20331 (for chrome extension)

1шт.

3

122594A1

CLAMP,86.46mm

1шт.

4

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

20331, Serial Range: -JJF1029999

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

20331, Serial Range: -JJF1029999

1шт.

6

825-1410

NUT,M10, Cl 8

20331, Serial Range: -JJF1029999

1шт.

7

A189265

CLAMP,80.5mm ID

1шт.

8

A170987

ELBOW

ASSY.

1шт.

9

221-841

PLUG

1/4 PT

1шт.

10

A170467

CLAMP,72mm ID

1шт.

11

175792A1

SUPPORT ASSY.

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

13

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

5шт.

14

A184494

BRACKET

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
