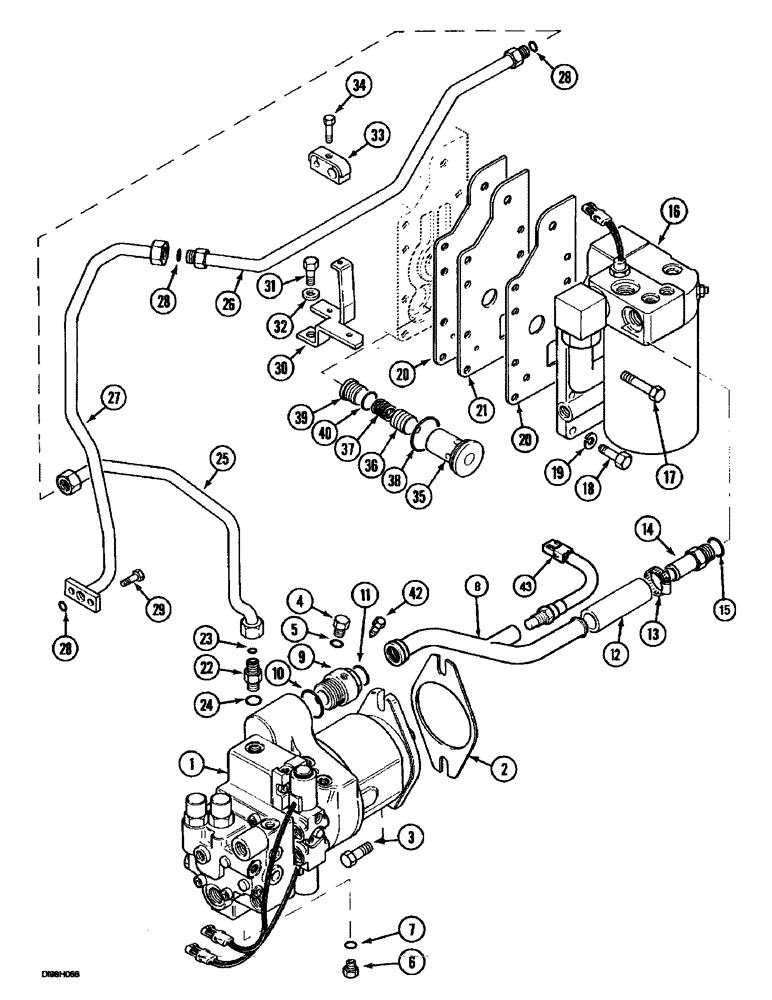

Запчасти Case IH 5150 (8-012) - HYDRAULIC PUMP, OIL LINES AND FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP, 86121 See Figures: 8-18, 9E-82

1шт.

2

A185801

GASKET

1шт.

3

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

9625178

PLUG,9/16" - 18 ORB

86131, Incl. 5

2шт.

6

9625178

PLUG,9/16" - 18 ORB

86121, Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

1533037C1

SUCTION PIPE

86131 Suction

1шт.

9

1531614C1

FITTING

1шт.

10

T103357

O-RING,38mm ID x 3mm Width

38 x 3 mm

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

1531600C1

HOSE

80 mm (3-1/4 in)

1шт.

13

905895R1

CLAMP,M30-45, Worm

86131 Optional: 214-1416

2шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

86131 Optional: 905895R1

2шт.

14

1343779C1

FITTING

VAVLE check, 86131 Includes: 15

1шт.

15

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

FILTER ASSY., 86113 See Figure: 8-28

1шт.

17

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

18

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

139882A1

GASKET

2шт.

21

1340757C1

PLATE ASSY.

1шт.

22

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

86113 Includes 23, 24

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

1531041C2

PIPE

86133 Front

1шт.

26

1531040C2

PIPE

86133 Middle

1шт.

27

1531039C3

PIPE

86133 Rear

1шт.

28

T102297

O-RING,1.78mm Thk x 15.6mm ID, 90 Duro

3шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

30

1531746C2

BRACKET

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

32

95-81011

WASHER,17/32" x 1" x .120"

17/32 x 1 x 1/8

1шт.

33

T101168

CLAMP

1шт.

34

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

a

1976963C3

VALVE

relief, 86113, 5120, 5130, 5140, Includes: 35, 36A - 40A, Start Serial: JJF1000599

1шт.

b

1341912C1

VALVE

relief, 86113 Includes: 35, 36B - 40B, Serial Range: -JJF1000600

1шт.

107451A1

VALVE

relief, 86113 Trans No.: JKA65212 - All Other Parts Not Serviced Separately

1шт.

35

NSS

NOT SOLD SEPARAT

FRAME

1шт.

36a

1340768C1

SPOOL

86113, 5120, 5130, 5140, Start Serial: JJF1000599

1шт.

36b

1341914C1

VALVE

poppet, Serial Range: -JJF1000600

1шт.

37a

1976804C1

SPRING

86113, 5120, 5130, 5140, Start Serial: JJF1000599

1шт.

37b

1341917C1

SPRING

, Serial Range: -JJF1000600

1шт.

38a

S5624

O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro

86113, 5120, 5130, 5140, Start Serial: JJF1000599

1шт.

38b

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

, Serial Range: -JJF1000600

1шт.

39a

9841223

PLUG,1-1/16" - 12 ORB

86113, 5120, 5130, 5140, Incl. 40A, Start Serial: JJF1000599

1шт.

39b

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

86113, Incl. 40B, Serial Range: -JJF1000600

1шт.

40a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

86113, 5120, 5130, 5140, Start Serial: JJF1000599

1шт.

40b

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

, Serial Range: -JJF1000600

1шт.

42

1531588C1

SCREW,M6 x 16mm, Gr 8

1шт.

43

1983380C1

SWITCH

ASSY., 42015 Temperature

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
