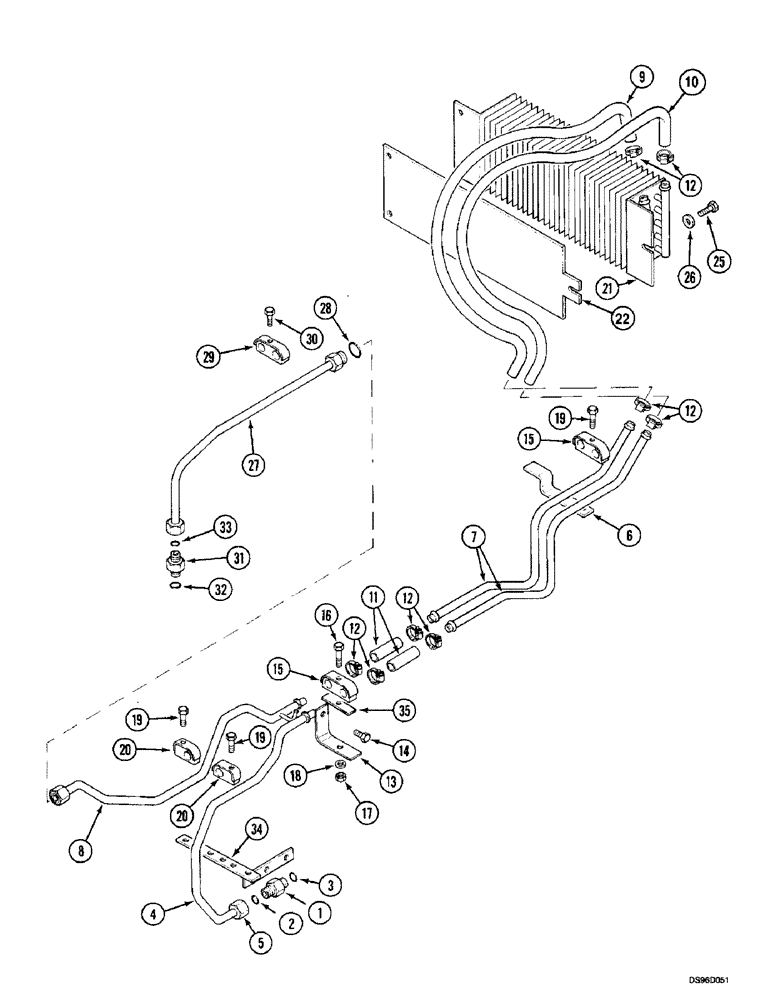

Запчасти Case IH 5150 (8-010) - OIL COOLER AND PIPES, 5150 (08) - HYDRAULICS

1

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

86137 Includes 2, 3

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4b

1531888C1

PIPE

, Serial Range: -JJF1028850

1шт.

4a

T103992

PIPE,16 mm OD x 495, 540 mm L

86137 Includes: 5, Start Serial: JJF1028849

1шт.

5

203-903

TUBE NUT,1"-14 ORFS

3/8 in

1шт.

6

1530803C1

SUPPORT

1шт.

7

1534998C2

HYD TUBE,16 mm OD, 740, 300 mm Length

2шт.

8

189480A1

HYD TUBE

1шт.

9

222342A1

HOSE

1шт.

10

222341A1

HOSE

1шт.

11

1531840C1

HYDRAULIC HOSE,15.9mm ID x 90mm L, SAE 100R3

90 mm (3-5/8 in)

2шт.

12

905894R1

COLLAR,16mm - 27mm, Worm Gear

8шт.

13

T101941

BRACKET

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

15

T102453

CLAMP

3шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

19b

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

, Serial Range: -JJF1028850

3шт.

19a

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

, Start Serial: JJF1028849

4шт.

20b

T102969

CLAMP

, Serial Range: -JJF1028850

1шт.

20a

T102969

CLAMP

, Start Serial: JJF1028849

2шт.

21

101732A1

COOLER

oil

1шт.

22

105824A2

SUPPORT ASSY.

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

27

T102948

PIPE

1шт.

28

T102297

O-RING,1.78mm Thk x 15.6mm ID, 90 Duro

1шт.

29

T103149

CLAMP

1шт.

30

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

31

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

86137 Includes: 32, 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34a

1534602C1

SUPPORT ASSY.

, Start Serial: JJF1028849

1шт.

35

1532870C1

HOLDER

PLATE

1шт.

36b

1533017C1

SUPPORT ASSY.

, Serial Range: -JJF1028850

1шт.

37b

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

, Serial Range: -JJF1028850

1шт.

16

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

3шт.
