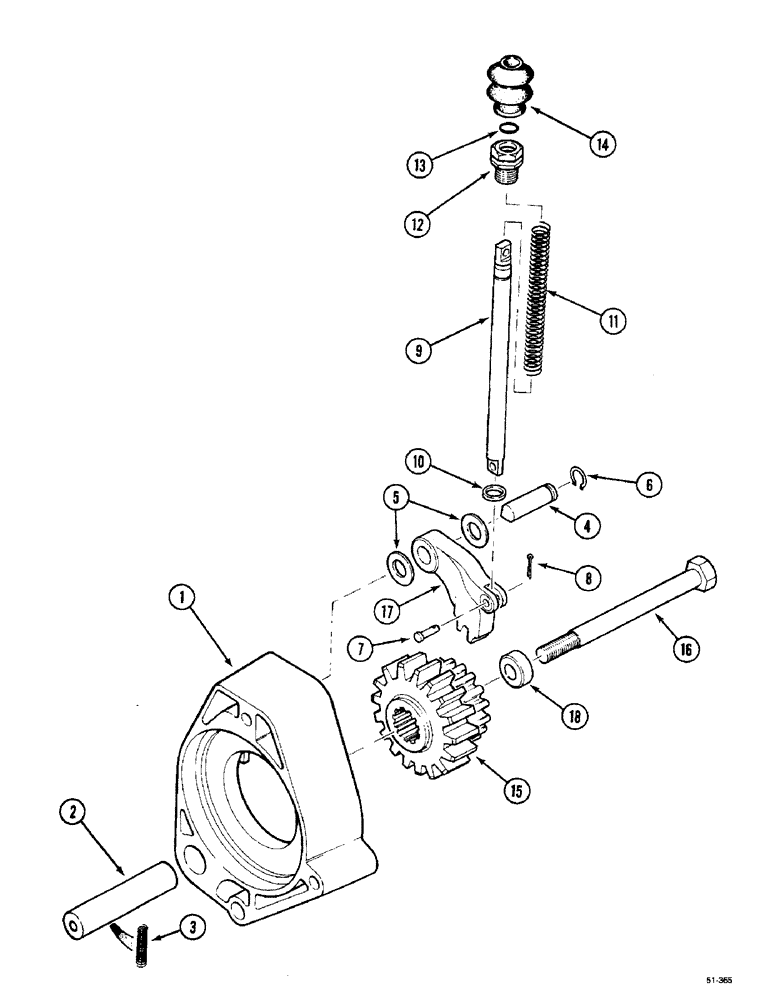

Запчасти Case IH 5150 (7-38) - PARKING BRAKE, FOR SWITZERLAND (07) - BRAKES

1345979C1

HOUSING

ASSY., 71085 Includes: 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

3

NSS

NOT SOLD SEPARAT

PIN cross, 71085 Spring

1шт.

4

NSS

NOT SOLD SEPARAT

PIN cross

1шт.

5

1995062C1

THRUST WASHER

thrust

2шт.

6

100-1675

SNAP RING,#75, Ext

1шт.

7

27-5112

CLEVIS PIN,5/16" x 1 1/8"

clevis 5/16 x 1-1/4

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

1шт.

1995113C1

ROD

ASSY., 71085 Includes: 9-10

1шт.

9

NSS

NOT SOLD SEPARAT

STEM

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER

1шт.

11

1995000C1

COMPRESSION SPRING

1шт.

12

1995004C1

PLUG

1шт.

13

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

14

1995154C1

BELLOWS

BOOT, 71085 Rubber

1шт.

15

1995002C1

PINION

GEAR, 22T, 71085 Axle Ratio: 1.6293

1шт.

15

1995003C1

PINION

GEAR, 24T, 71085 Axle Ratio: 1.4935

1шт.

16

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

1шт.

17

1345978C1

LEVER

1шт.

18

1995023C1

SPACER

71085 Countershaft

1шт.
