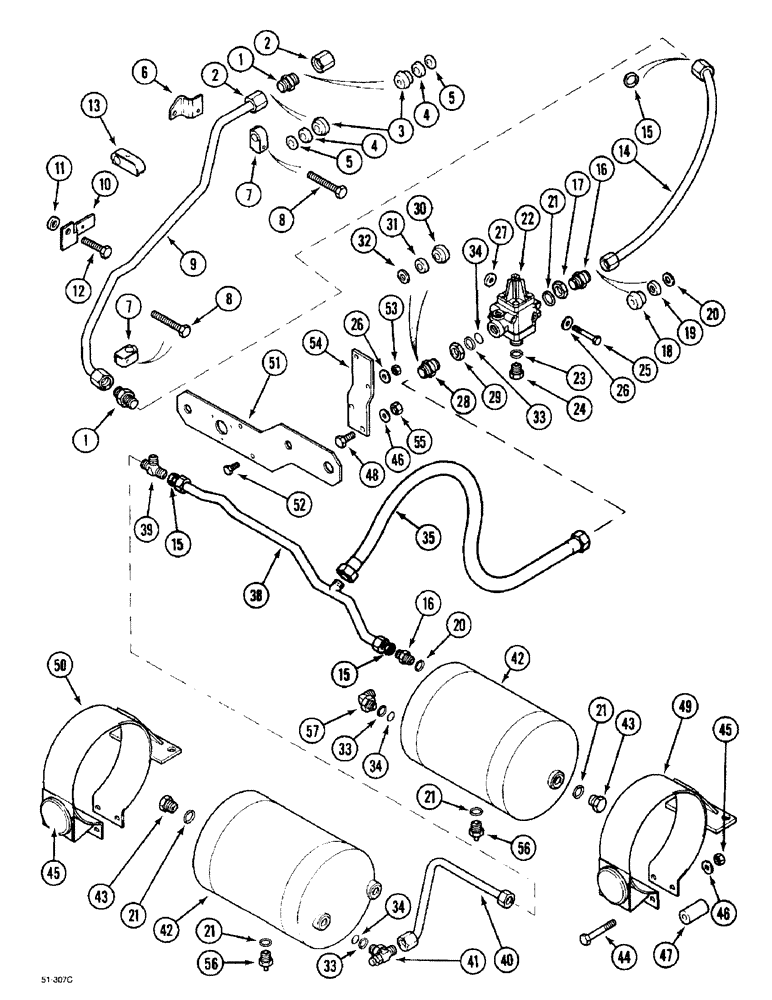

Запчасти Case IH 5150 (7-30) - TRAILER BRAKE - PNEUMATIC TANK AND PIPES (07) - BRAKES

897787H1

FITTING

union, 71043 Consists Of: 1-5

2шт.

1

3215409R1

HYD CONNECTOR,M15 Tube

UNION

1шт.

2

3215240R1

TUBE NUT,Coupling, M22 x 1.5

2шт.

3

3143334R1

OLIVE

SLEEVE

2шт.

4

3215241R1

THRUST RING

SLEEVE

2шт.

5

3402992R1

SEALING RING

SEALRING

2шт.

6

T103990

BRACKET

1шт.

7

T102969

CLAMP

2шт.

8

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

9

1533423C1

PRESSURE PIPE

1шт.

10

1533409C1

SUPPORT

1шт.

11

1533501C1

SPACER

1шт.

12

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

13

T103149

CLAMP

1шт.

14

1533412C1

HOSE

1шт.

15

897558H2

BUSHING

4шт.

192957A1

UNION

CONNECTOR ASSY., 71043 Trans No. : JKA82801 - Consists Of : 16-18

2шт.

16

NSS

NOT SOLD SEPARAT

UNION

1шт.

17

3143333R1

TUBE NUT,Coupling, M22 x 1.5

TUBE

1шт.

18

3143334R1

OLIVE

SLEEVE

1шт.

3076095R91

UNION

71043 Trans No. : - JKA82800 Consists Of: 16-20

2шт.

16

3215409R1

HYD CONNECTOR,M15 Tube

UNION

1шт.

17

3215240R1

TUBE NUT,Coupling, M22 x 1.5

1шт.

18

3143334R1

OLIVE

SLEEVE

1шт.

19

3215241R1

THRUST RING

SLEEVE

1шт.

20

3402992R1

SEALING RING

SEALRING

1шт.

21

E135040

SEALING WASHER,M22 x 27 x 1.5

RING

6шт.

22

T103977

VALVE PRESSURE RELIE

1шт.

23

E135042

SEALING RING

SEALRING packing

1шт.

24

933321R1

PLUG,M10 x 1 NPT

1шт.

25

814-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

27

T103701

SPACER

2шт.

187963A1

FITTING

union, 71053 Trans No. : JKA82801 -

1шт.

3076100R91

ELBOW

71053 Trans No. : - JKA82800 Consists Of: 28-32

1шт.

28

3076100R91

ELBOW

1шт.

29

3215240R1

TUBE NUT,Coupling, M22 x 1.5

1шт.

30

3143334R1

OLIVE

SLEEVE

1шт.

31

3215241R1

THRUST RING

SLEEVE

1шт.

32

3402992R1

SEALING RING

SEALRING

1шт.

33

3076153R1

RING

71011 Trans No.: - JKA82800

1шт.

34

3076154R1

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

71011 Trans No.: - JKA82800

3шт.

35

1533413C1

TUBE

71043 Trans No.: - JKA82800

3шт.

35

192961A1

HOSE,15.00 mm ID x 820.00 mm

71043 Trans No.: JKA82801 -

1шт.

36

3401098R1

TEE,M15 Tube

TEE, 71043 Trans No.: - JKA82800

1шт.

37

1533416C1

PIPE

71043 Trans No.: - JKA82800

1шт.

38

192959A1

PIPE

71043 Trans No.: JKA82801 -

1шт.

38

1533417C1

PIPE

71043 Trans No.: - JKA82800

1шт.

39

1533421C1

TEE

1шт.

40

192958A1

PIPE

71043 Trans No.: JKA82801 -

1шт.

40

1533418C1

PIPE

71043 Trans No.: - JKA82800

1шт.

41

192960A1

TEE

VALVE pressure, 71043 Trans No. : JKA82801 -

1шт.

41

3230396R1

COUPLING

ASSY., 71043 Trans No.: - JKA82800

1шт.

42

1530988C1

AIR TANK

2шт.

43

716954R1

PLUG,Hex, M22 x 1.5

2шт.

44

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

4шт.

45

825-1410

NUT,M10, Cl 8

4шт.

46

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.

47

1531771C1

TUBE,50 mm Length

SPACER

4шт.

48

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

49

1531672C2

SUPPORT ASSY.

71011 Right

1шт.

50

1531669C2

SUPPORT ASSY.

1шт.

NSS

NOT SOLD SEPARAT

REFLECTOR, 71011 Left

2шт.

51

1533132C1

PLATE

1шт.

52

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

53

825-1408

NUT,M8, Cl 8

2шт.

54

1533133C1

PLATE

1шт.

55

825-1410

NUT,M10, Cl 8

2шт.

56

897123H2

VALVE

drain

2шт.

57

3148856R1

ELBOW

1шт.
