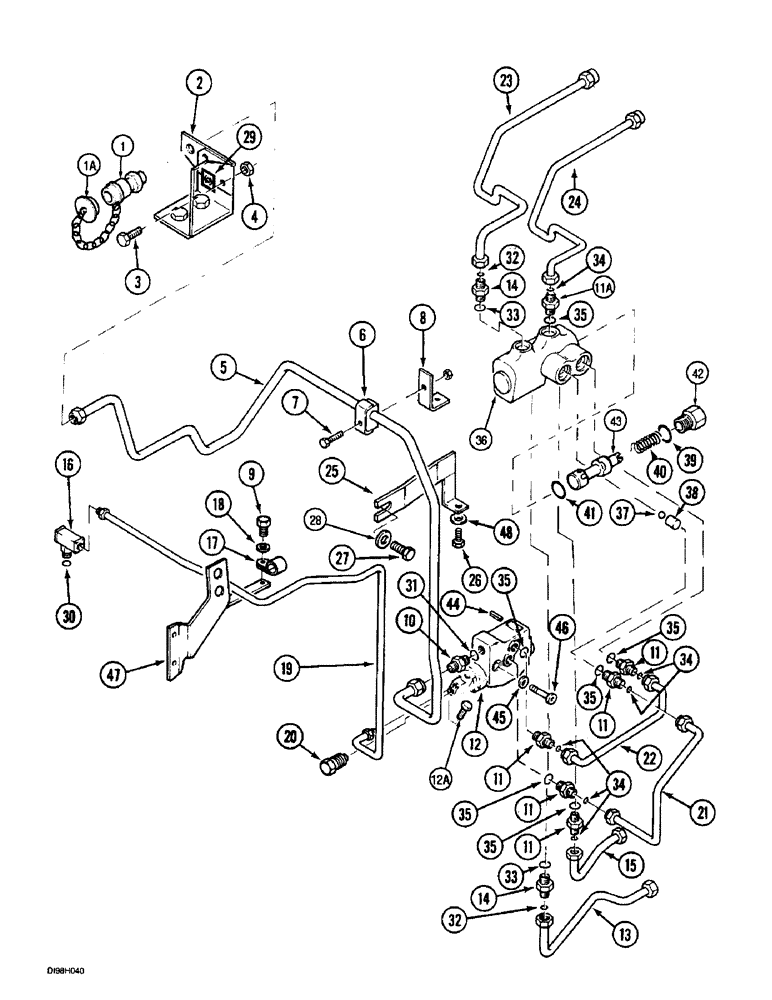

Запчасти Case IH 5150 (7-16) - TRAILER BRAKE - HYDRAULIC PIPING (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
737606R1
COUPLING, QUICK, FEM
71041 Female
1шт.
1
3131463R91
QUICK MALE COUPLING
71041 Male Inc. 1A
1шт.
1a
3147728R1
PLUG
CAP ASSY.
1шт.
2
REF
INSTRUCTION
BRACKET, 71041 See Figure: 6-102
1шт.
3
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
2шт.
4
825-1410
NUT,M10, Cl 8
2шт.
5
1531687C3
PIPE
1шт.
6
T101170
CLAMP
1шт.
7
614-6030
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd
1шт.
8
T104524
BRACKET
1шт.
9
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
71041, 5120, 5130, 5140, Serial Range: -JJF1017545
1шт.
9
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
71041, Serial Range: JJF1017546-1033265
1шт.
9
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
71041, Serial Range: JJF1033266-1037973
1шт.
10
89597C1
FITTING
union, 71041 Includes: 31
1шт.
11
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
71041, Incl 34, 35
5шт.
11a
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
71041, Incl 34A, 35A, Serial Range: -JJF1023975
1шт.
11a
1975210C1
FITTING
VALVE check, 30 km/h, 71041, Includes: 34A, 35A, Start Serial: JJF1023976
1шт.
11a
1533757C1
FITTING
VALVE check, 40 km/h, 71041 Includes: 34B, 35A
1шт.
12
142847A1
VALVE
bracke, 71041 Includes: 12A
1шт.
12a
B506394
BLEEDER
SCREW
1шт.
1346322C2
SEAL KIT
service, 71041 Seals and Springs For: 142847A1
1шт.
13
1531399C3
PIPE
1шт.
14
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
71041, Includes 32, 33
2шт.
15
1531400C2
PIPE
1шт.
16
T100107
TEE
71041 Includes: 30
1шт.
141136A1
KIT
71041 Conversion, Consists Of: 9,17,18,20,47, Serial Range: -JJF1033265
1шт.
17
3223090R1
CLAMP
71041, Serial Range: -JJF1037973
1шт.
18
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
71041, Serial Range: -JJF1037973
1шт.
19
1533476C2
PIPE
71041, Serial Range: -JJF1037973
1шт.
19
1533477C2
PIPE
71041, Start Serial: JJF1037974
1шт.
20
141135A1
PLUG
2шт.
21
1531403C2
PIPE
1шт.
22
1531404C2
PIPE
1шт.
23
1531319C3
PIPE
30 km/h, 71041 Supply
1шт.
23
1531319C3
PIPE
30 km/h, 71041 Supply With Connector, 5120, 5130, 5140, Serial Range: -JJF1007633
1шт.
23
1533938C1
PIPE
40 km/h, 71041 Supply, Start Serial: JJF1007634
1шт.
24
1531320C2
PIPE
30 km/h, 71041 Signal
1шт.
24
1533789C1
PIPE
40 km/h, 71041 Signal
1шт.
25
1533230C2
SUPPORT ASSY.
30 km/h
1шт.
26
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
1шт.
27
614-16040
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
1шт.
28
895-11016
WASHER,17.5mm ID x 30mm OD x 3mm Thk
1шт.
29
1533489C1
DECAL
1шт.
31
1328179C1
O-RING,15.4mm ID x 2.1mm Width
15.4 ID x 2.1 mm
1шт.
33
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
34
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
5шт.
34a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
36
1533774C2
HYDRAULIC VALVE
priority, 86143 Includes: 37-43
1шт.
1346321C1
KIT
repair, 86143 Consists Of: 37-42
1шт.
37
NSS
NOT SOLD SEPARAT
BALL
1шт.
38
NSS
NOT SOLD SEPARAT
SEAT
1шт.
39
NSS
NOT SOLD SEPARAT
O-RING
1шт.
40
NSS
NOT SOLD SEPARAT
SPRING
1шт.
41
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
42
NSS
NOT SOLD SEPARAT
PLUG
1шт.
43
1533768C1
SPOOL
86143 Use With: 1533774C1
1шт.
43
193370A1
SPOOL
86143 Use With: 1533774C2
1шт.
129502A1
SPARE PART SET
71053 Includes: 44-46
1шт.
44
838-5618
LOCK PIN,M6 x 18, Slotted
1шт.
45
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
46
NSS
NOT SOLD SEPARAT
BOLT special
1шт.
47
1534418C1
SUPPORT
71041, Serial Range: -JJF1029999
1шт.
47
142931A1
SUPPORT ASSY.
71041, Serial Range: JJF1030000-1037973
1шт.
1533783C2
PACKAGE
40 k/mh, 71041 Includes: 11, 24, 42
1шт.
48
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
71041, Serial Range: JJF1017546-JJF1033266
1шт.
30
237-6005
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
1шт.
35
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
5шт.
35a
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 70
