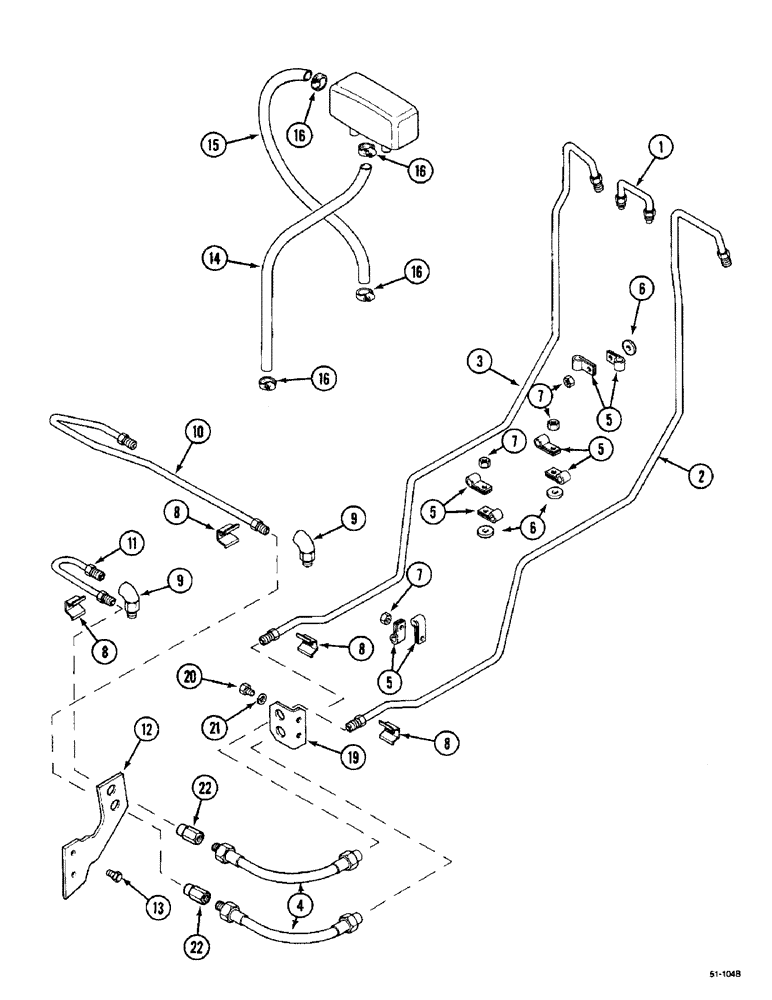

Запчасти Case IH 5150 (7-12) - BRAKES - PIPING (07) - BRAKES

1

T102161

PIPE

1шт.

2

1533097C1

PIPE

71041 Right Brake

1шт.

3

1533098C1

PIPE

71041 Left Brake

1шт.

4

1531935C1

HOSE

325 mm (12-7/8 in)

2шт.

5

3223090R1

CLAMP

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

825-1406

NUT,M6, Cl 8

3шт.

8

3223091R1

CLAMP

4шт.

9

T100097

ELBOW

71041 Without Trailer Brake

2шт.

9

T100097

ELBOW

71041 With Pneumatic Trailer Brake

1шт.

9

1531936C1

FITTING

union, 71041 With Trailer Brake

2шт.

10

T103769

PIPE

71041 Left Brake

2шт.

11

T103770

PIPE

71041 Right Brake

1шт.

12

T104194

BRACKET

ASSY.

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

14

905903R1

HOSE

820 mm (32-3/8 in), 71041 Supply

1шт.

15

T100065

HYDRAULIC HOSE

800 mm (31-1/2 in), 71041 Return

1шт.

16

3125239R1

COLLAR

4шт.

19

1533289C1

SUPPORT

1шт.

20

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

1531936C1

FITTING

union

2шт.
