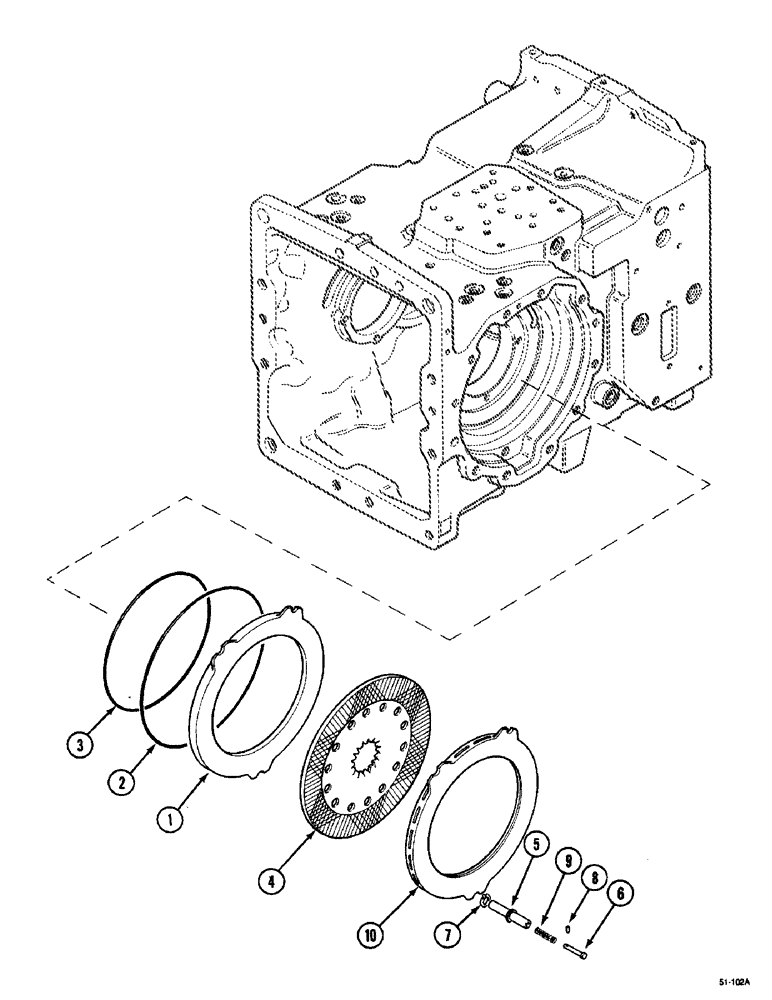

Запчасти Case IH 5150 (7-06) - BRAKE DISCS (07) - BRAKES

1

123938A1

PISTON

71061 Order Also: 1 x 223782A1

2шт.

2

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

71061 Large

2шт.

3

238-5273

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

71061

2шт.

4

A190067

BRAKE DISC

DISC, BRAKE friction

2шт.

223782A1

DOWEL

ADJUSTER, 71061, Includes: 5-9

2шт.

5

NSS

NOT SOLD SEPARAT

TUBE, 71061 Order: 223782A1

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER, 71061 Order: 223782A1

1шт.

7

100-1462

SNAP RING,#62, Ext

2шт.

8

1345860C1

SPLIT PIN/SAFETY PIN

1шт.

9

A190295

SPRING

1шт.

10

1995365C1

PLATE

1шт.
