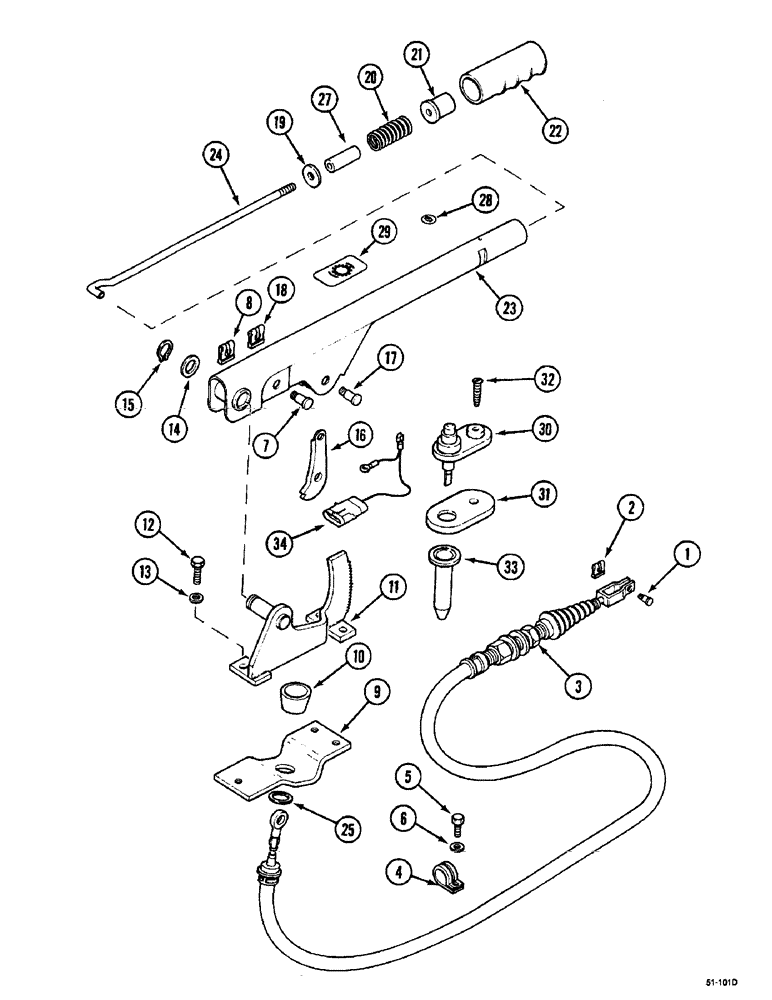

Запчасти Case IH 5150 (7-04) - PARKING BRAKE CONTROLS (07) - BRAKES

1

1531632C1

PIN

1шт.

2

T102627

CLIP

1шт.

3

1531948C1

BOWDEN CONTROL,1325mm L

CABLE

1шт.

4

T102613

MOUNTING CLIP

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

1531626C1

PIN

1шт.

8

T102626

CLIP

1шт.

9

1531624C1

BRACKET

71081 With Cab

1шт.

10

1531625C1

GROMMET

71081 With Cab

1шт.

11

1531433C1

RATCHET

LOCK

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

905782R1

WASHER,M16 ID x 22 OD x 1 Thk

16 x 22 x 1 mm

1шт.

15

905913R1

SNAP RING,M16, Ext

retaining

1шт.

16

1531631C1

RATCHET

1шт.

17

1531626C1

PIN

1шт.

18

T102626

CLIP

1шт.

19

3401150R1

WASHER

1шт.

20

1531363C1

SPRING

1шт.

21

3234635R1

BUTTON

1шт.

22

3234634R1

HANDLE

1шт.

23

1531429C3

LEVER

1шт.

24

1531462C1

ROD

1шт.

25

T103307

WASHER

71081 Without Cab

1шт.

27

1531364C1

TUBE,6.5 mm ID, 12 mm OD, 40 mm Length

1шт.

28

1344282C1

DECAL

1шт.

29

1534336C1

ADHESIVE

71081 Park Brake For Switzerland

1шт.

113642A1

PACKAGE, REPAIR

42024 Includes: 30-34

1шт.

30

1983622C1

SWITCH ASSY

42024, Serial Range: -JJF1015045

1шт.

30

1534229C1

PUSH BUTTON SWITCH

42024, Start Serial: JJF1015046

1шт.

31

182378A1

LARGE PLATE

PLATE, LARGE 42024, Start Serial: JJF1015046

1шт.

31

1534230C1

LARGE PLATE

PLATE, LARGE 42024, Serial Range: -JJF1015045

1шт.

32

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

4.2 x 22 mm

1шт.

33

1534251C1

BELLOWS

GROMMET

1шт.

34

113640A1

CABLE

42024 Adaptor

1шт.
