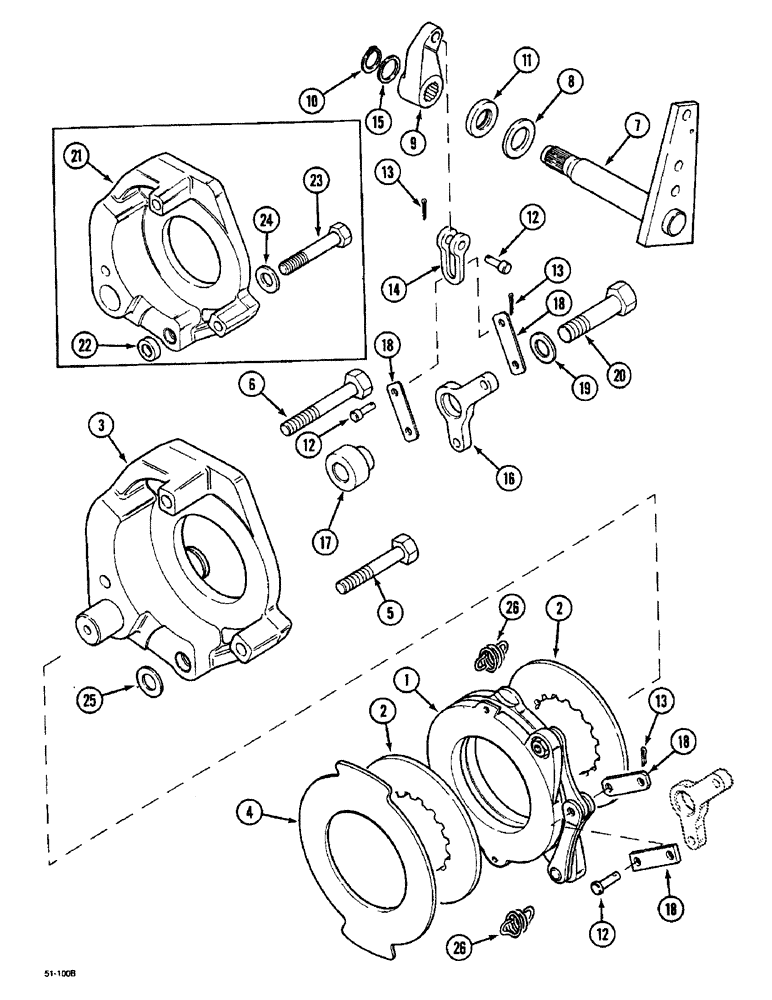

Запчасти Case IH 5150 (7-02) - PARKING BRAKE (07) - BRAKES

1

A158090

BRAKE ASSY.

1шт.

2

1341170C1

BRAKE DISC

DISC, BRAKE friction, 71073 30 km/h

2шт.

2

1345726C1

BRAKE DISC

DISC, BRAKE friction, 71073 40 km/h

2шт.

3

1341197C2

HOUSING

71073 MFD Tractors

1шт.

4

1341163C3

PLATE

1шт.

5

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

6

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

7

A188092

SHAFT

71073 With Lever

1шт.

8

A178359

WASHER

1шт.

9

A190227

LEVER

1шт.

10

A27521

SNAP RING,#68, Ext

#68, Ext

1шт.

11

A159379

OIL SEAL,20.19mm ID x 38.18mm OD x 6.35mm Thk

1шт.

12

141-54

CLEVIS PIN,3/8" x 1 1/16"

5шт.

13

432-612

COTTER PIN,3/32" x 3/4"

5шт.

14

A188668

CLEVIS COUPLING

1шт.

15

A190193

WASHER

1шт.

16

A188665

DIPPER

BELLCRANK

1шт.

17

A188892

SPACER

1шт.

18

A188100

DRAG LINK

4шт.

19

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

1шт.

20

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

21

1345868C1

HOUSING

71073, 5120, 5130, 5140, 2WD

1шт.

22

1341269C1

SPACER

71073, 5120, 5130, 5140, 2WD

1шт.

23

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

23

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

24

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

25

1341198C1

SHIM

adjusting 0.085 mm

1шт.

25

1341199C1

SHIM

adjusting 0.125 mm

1шт.

25

1345780C1

SHIM

adjusting 0.50 mm

1шт.

26

1997140C1

SPRING

71073 Return

2шт.
