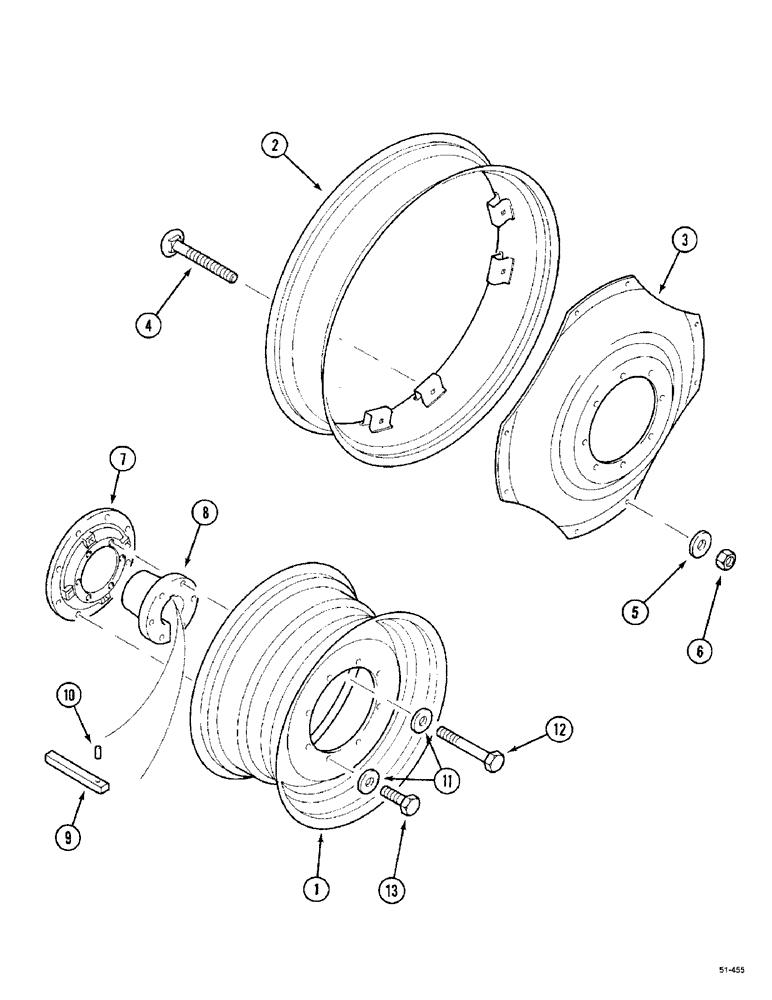

Запчасти Case IH 5150 (6-152) - REAR WHEELS - NON ADJUSTABLE (06) - POWER TRAIN

1

1533249C1

WHEEL

DW12 x 38, 63171 For Tires: 13.6-38

2шт.

1

1533250C1

WHEEL

DW14 x 38, 63171 For Tires: 15.9-38, 16.9-38

2шт.

1

1533246C1

WHEEL

DW15 x 34, 63171 For Tires: 16.9-34

2шт.

1

1533245C1

WHEEL

DW16 x 30, 63171 For Tires: 16.9-30, 18.4-30

2шт.

1

1533251C1

WHEEL

DW16 x 38, 63171 For Tires: 16.9-30, 18.4-38

2шт.

1

1533247C1

WHEEL

DW16 x 34, 63171 For Tires: 18.4-34

2шт.

2

1957251C1

WHEEL

wheel W10 - 42

2шт.

3

1348284C2

DISC, WHEEL

2шт.

2

1347559C1

WHEEL

RIM, DW12-46

2шт.

3

1347558C2

DISC, WHEEL

2шт.

4

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

16шт.

5

1335135C1

WASHER

17 x 33 x 5 mm

16шт.

6

1335134C1

NUT

M16

16шт.

7

1533385C1

HUB

2шт.

8

1533692C1

HUB

BUSHING

2шт.

9

A34890

BUCKET TOOTH KEY

2шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

2шт.

11

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

28шт.

12

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

12шт.

13

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

196788A1

VENT (AIR)

63171 Tubeless Tires Not Illustrated

1шт.
