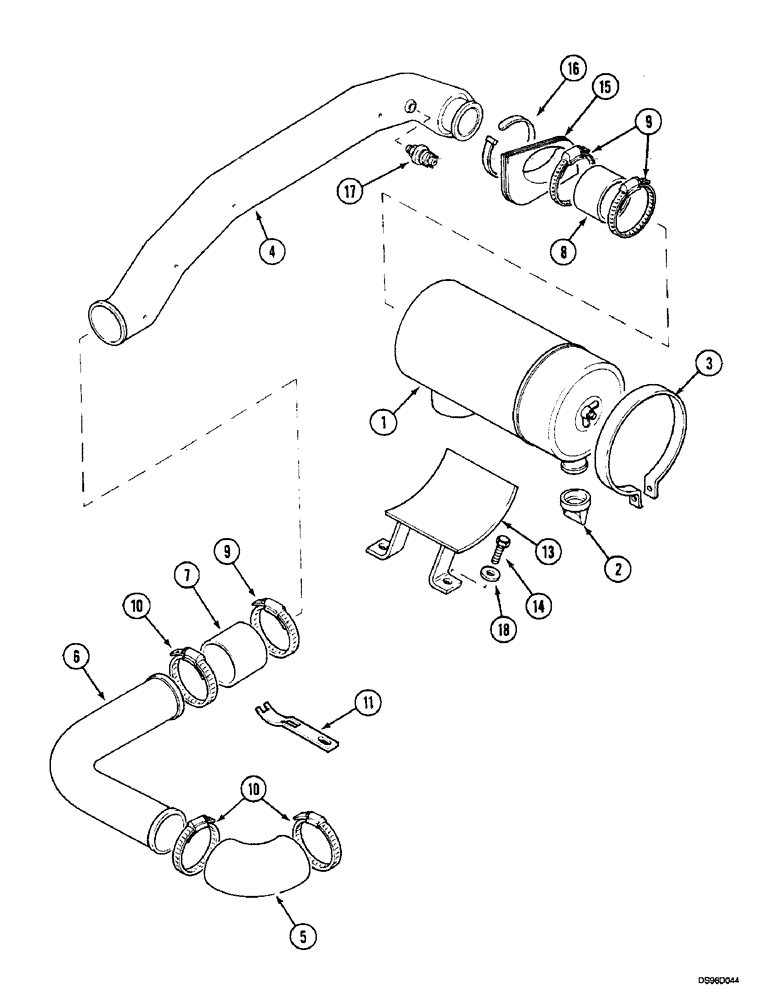

Запчасти Case IH 5150 (2-010) - AIR CLEANER AND CONNECTIONS, (5140/5150) (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSY., 20321, 5140, See Figure: 2-12

1шт.

1

REF

INSTRUCTION

AIR CLEANER ASSY., 20321, 5150, See Figure: 2-12

1шт.

2

A184939

VALVE

press relief

1шт.

3

T103239

STRAP

20321, 5140

1шт.

3

1534843C1

CLAMP

BAND ASSY., 20321, 5150

1шт.

4

1530736C2

LARGE HOSE

HOSE,LARGE 20323, 5140

1шт.

4

1534948C2

LARGE HOSE

HOSE,LARGE 20323, 5150

1шт.

4

1530735C2

LARGE HOSE

HOSE,LARGE 20323, 5140 Compressor

1шт.

4

113581A2

LARGE HOSE

HOSE,LARGE 20323, 5150 Compressor

1шт.

5

T100698

HOSE

1шт.

6

1530733C2

LARGE HOSE

HOSE,LARGE

1шт.

7

1533379C1

HOSE

1шт.

8

1533407C1

HOSE

20323, 5140

1шт.

8

906010R1

HOSE

20323, 5150

1шт.

9

3219245R1

CLAMP,M70-90, Worm

20323, 5140

3шт.

9

3219245R1

CLAMP,M70-90, Worm

20323, 5150

1шт.

9

3226801R1

CLAMP,M100-120, Worm

20323, 5150

2шт.

10

3220461R1

CLAMP,M80-100, Worm

3шт.

11

235743A1

SUPPORT

1шт.

13

1533565C2

SUPPORT ASSY.

20321, 5140

1шт.

13

1534834C1

SUPPORT ASSY.

20321, 5150

1шт.

14

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

15

1531506C3

SEAL

1шт.

16

3402979R2

BAND

cable 350 mm

1шт.

17

292950A1

SWITCH

42015 Indicator

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
