(6-146) - REAR WHEELS - ADJUSTABLE, FOR BAR AXLE, FOR TIRES : 16.9-24

Запчасти Case IH 5150 (6-146) - REAR WHEELS - ADJUSTABLE, FOR BAR AXLE, FOR TIRES : 16.9-24 (06) - POWER TRAIN

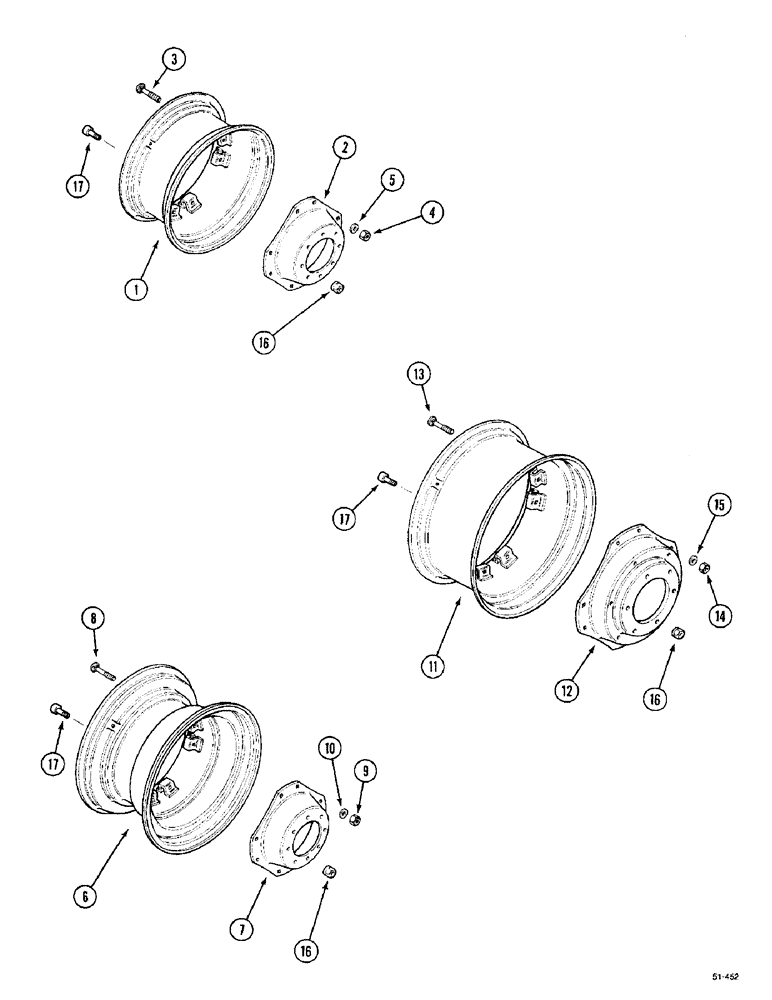

Схема запчастей Case IH 5150 - (6-146) - REAR WHEELS - ADJUSTABLE, FOR BAR AXLE, FOR TIRES : 16.9-24 (06) - POWER TRAIN
15
12
14
16
17
6
16
16
9
6
10
11
2
5
17
7
13
3
4
1
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1531573C1

RIM

WHEEL wheel, W15L x 24

2шт.

2

1533670C2

DISC

WHEEL

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

16шт.

4

1335134C1

NUT

M16

16шт.

5

1335135C1

WASHER

17 x 33 x 5 mm

16шт.

196788A1

VENT (AIR)

63171 Tubeless Tires Not Illustrated

1шт.
